Wiring
Operating Manual PMCprotego D.48, PMCprotego D.72
1001735-EN-04
166

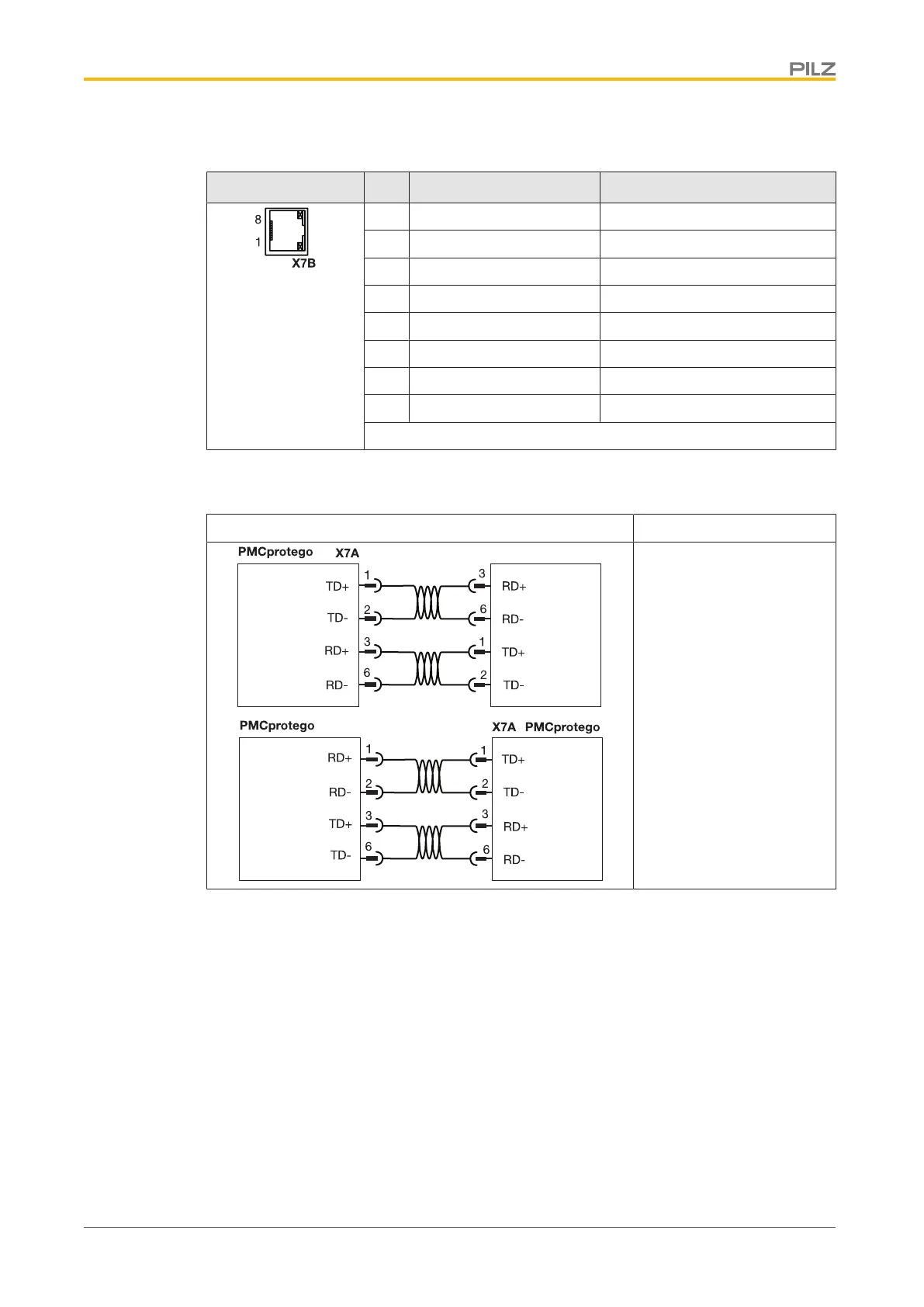

OUT Port
Socket X7B Pin Designation Description
1 RD+ (Receive+) Receive data
2 RD- (Receive-) Receive data inverted
3 TD+ (Transmit+) Send data
4 n.c. --
5 n.c. --
6 TD- (Transmit-) Send data inverted
7 n.c. --
8 n.c. --
n. c.: Not connected
EtherCAT
X45
PMCprimo
X7B
OUT Port
IN Port
OUT Port
IN Port
8-pin RJ45 sockets
Recommended cable:
Cat 5e
6.8 Expansion cards
6.8.1 Expansion card PMCprotego S1, PMCprotego S2
The wiring for the safety cards is described in detail in the operating manuals for the PMC-
protegoS1 and PMCprotegoS2.
