Wiring
Operating Manual PMCprotego D.48, PMCprotego D.72
1001735-EN-04
146
6.7.5.12 Incremental encoder ROD (AquadB) 5V, 350 kHz
Under “Connection cables”, please note the requirements for the:
} Cable cross sections
} Insulation material
If the cable length is >50 m, please speak to our Customer Support.

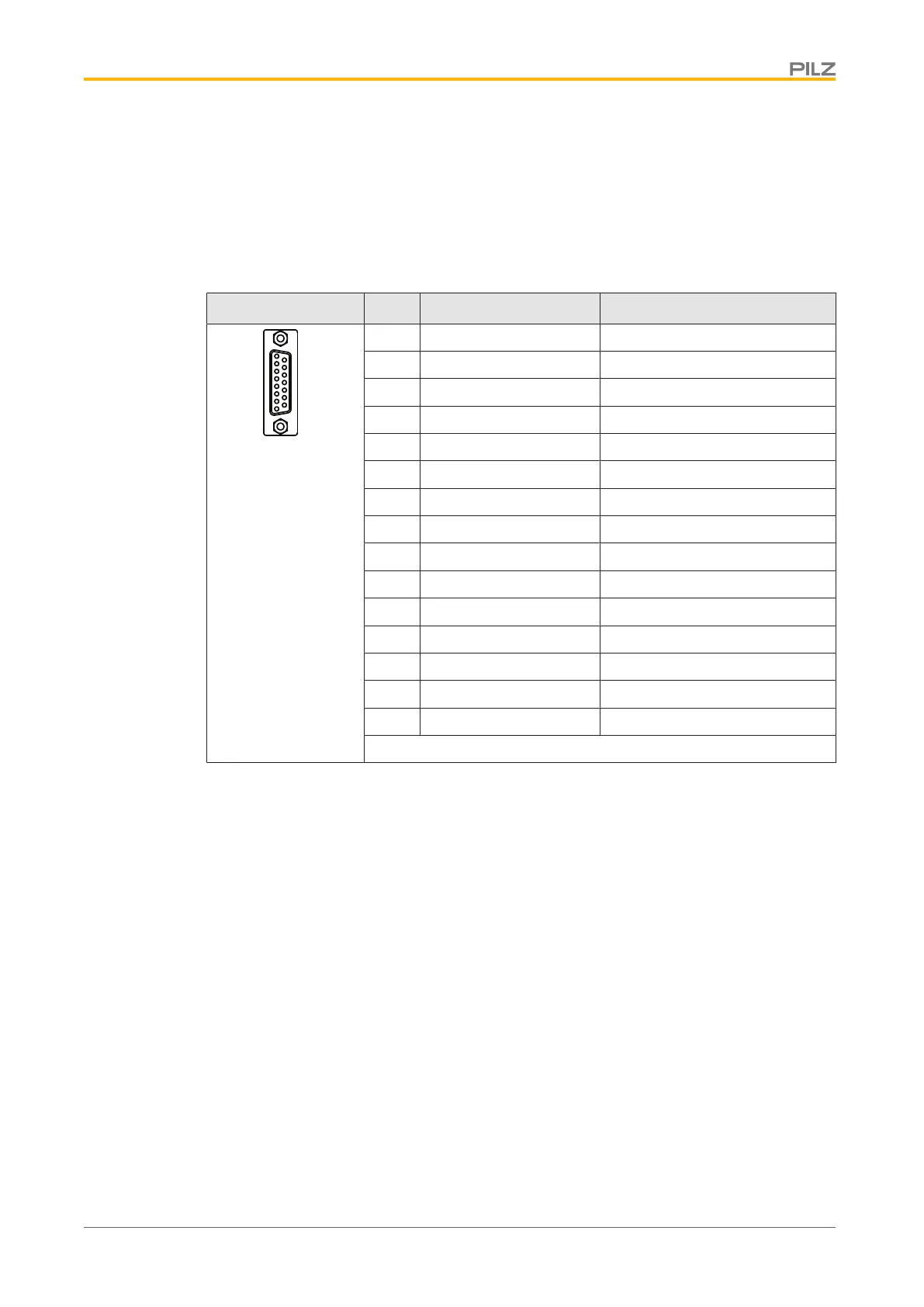

Connector X1 Pin Designation Description
1
8
9
15
1 B Channel B
2 0 V Supply voltage 0 V
3 A Channel A
4 Up Supply voltage 5V
5 T Reference pulse
6 n.c. --
7 ϑ Thermal switch (+)
8 n.c. --
9 B\. Channel B inverted
10 Sense 0 V Supply voltage feedback 0V
11 A\ Channel A inverted
12 Sense Us Supply voltage feedback 5V
13 Z\ Reference pulse inverted
14 ϑ Thermal switch (-)
15 n.c. --
n.c.: Not connected
Connector pin assignment
