Function Description
Operating Manual PMCprotego D.48, PMCprotego D.72
1001735-EN-04
70
4.4 Expansion cards
4.4.1 Expansion card PMCprotego S1-2, PMCprotego S2-2
The expansion cards PMCprotego S1-2 and PMCprotego S2-2 are available as accessor-
ies (see Type code).
The safety card monitors safety functions in accordance with EN61800-5-2. It monitors
safe motion sequences on drives, which are safely brought to a stop and shut down in the
event of an error.
The safety card is built into a servo amplifier PMCprotegoD. This converts the servo ampli-
fier into a safe servo amplifier.
INFORMATION
Detailed information about the function range can be found in the operating
manuals for the PMCprotegoS1-2 and PMCprotegoS2-2.
4.4.2 Expansion card I/O-14/08
The expansion card I/O-14/08 is available as an accessory.
Functions:
} 14 additional digital inputs and 8 digital outputs
} The function of the inputs and outputs can be configured in the commissioning soft-
ware.
} The inputs initiate the motion tasks that are stored in the servo amplifier.
} The outputs signal the status of the integrated position controller to the higher level con-
trol system.
} The functions of the inputs and outputs correspond to the functions that can be as-
signed to the digital inputs and outputs on connector X3 of the servo amplifier.
} The inputs and outputs are isolated from the servo amplifier through optocouplers.

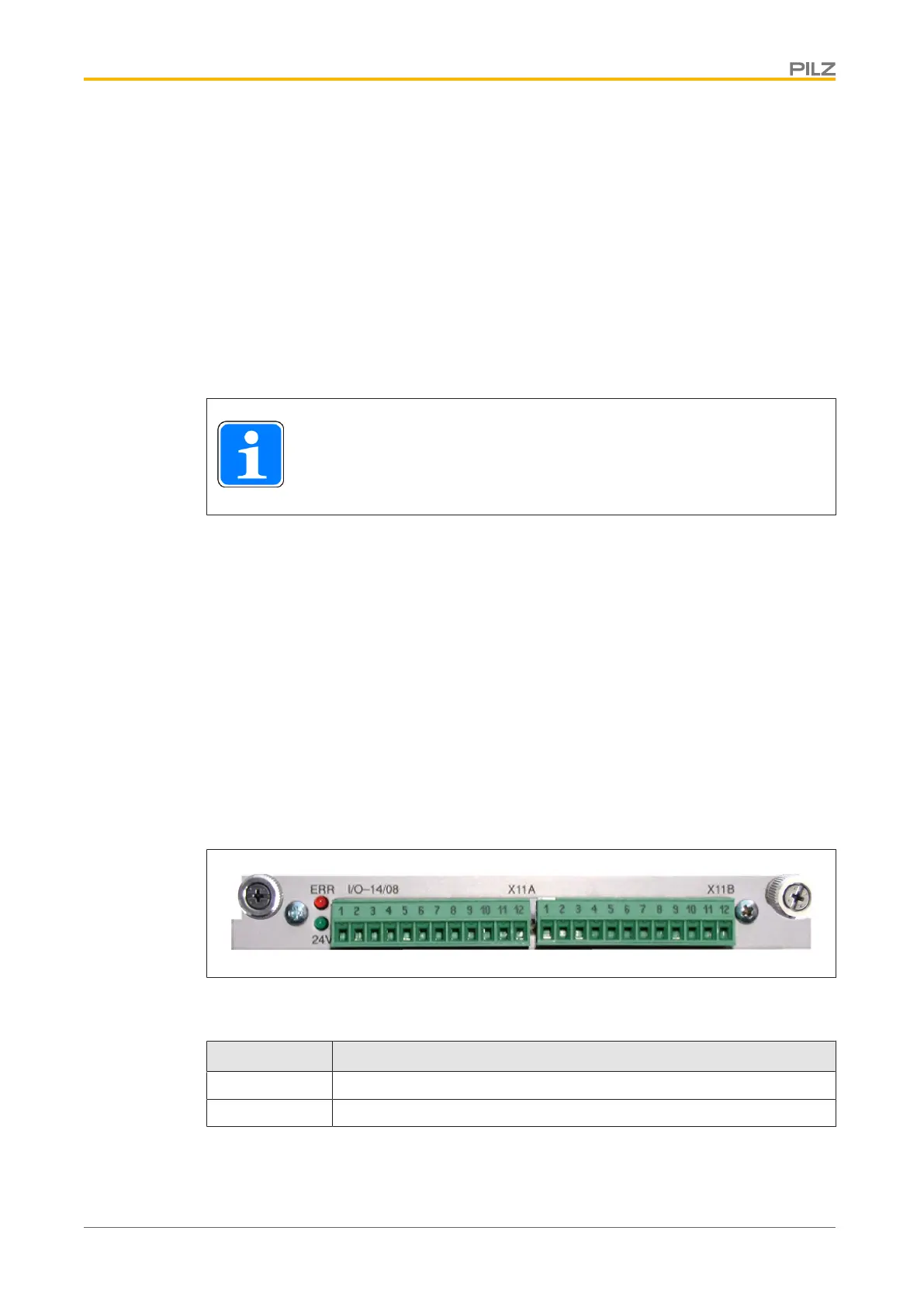

Fig.: Front view of expansion card I/O-14/08
LEDs:
LED Description
Green 24V supply voltage is present
Red Fault on the expansion card's outputs (overload and/or short circuit)
