Wiring
Operating Manual PMCprotego D.48, PMCprotego D.72
1001735-EN-04
178
6.8.3.5 Absolute encoder with SSI interface
Switch on the encoder's supply voltage on X1: Set ENCVON to 1
If the cable length is >50 m, please speak to our Customer Support.

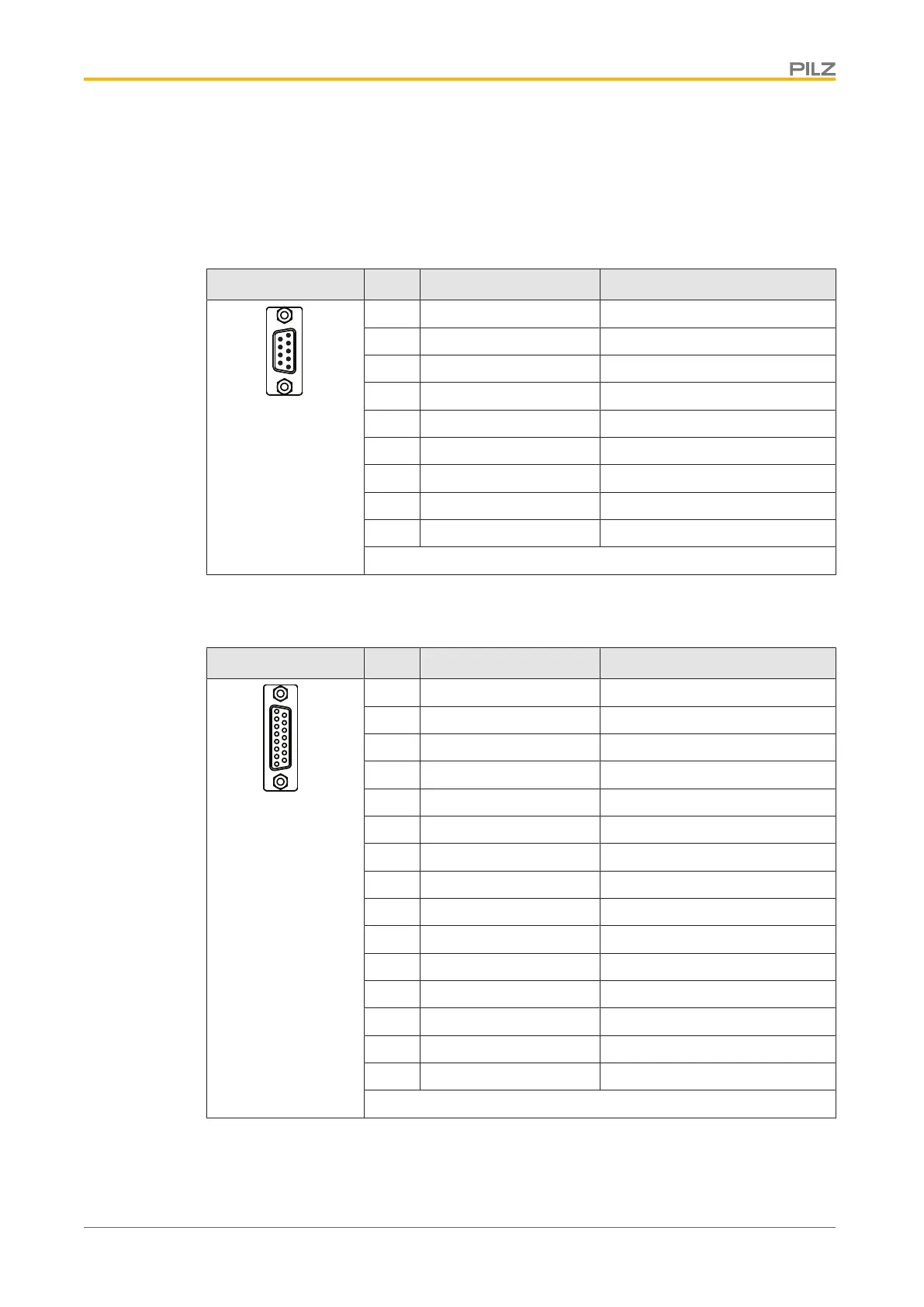

Connector X5 Pin Designation Description
1
5
6
9
1 GND Ground
2 n.c. --
3 n.c. --
4 CLOCK\ Test pulse output inverted
5 CLOCK Test pulse output
6 DATA Data
7 DATA\ Data inverted
8 n.c. --
9 n.c. --
n.c.: Not connected
Connector pin assignment
Connector X1 Pin Designation Description
1
8
9
15
1 n.c. --
2 0 V Supply voltage 0 V
3 n.c. --
4 Up Supply voltage 5V
5 n.c. --
6 n.c. --
7 ϑ Thermal switch (+)
8 n.c. --
9 n.c. --
10 Sense 0 V Supply voltage feedback 0V
11 n.c. --
12 Sense Up. Supply voltage feedback 5V
13 n.c. --
14 ϑ Thermal switch (-)
15 n.c. --
n.c.: Not connected
Connector pin assignment
