Wiring
Operating Manual PMCprotego D.48, PMCprotego D.72
1001735-EN-04
177

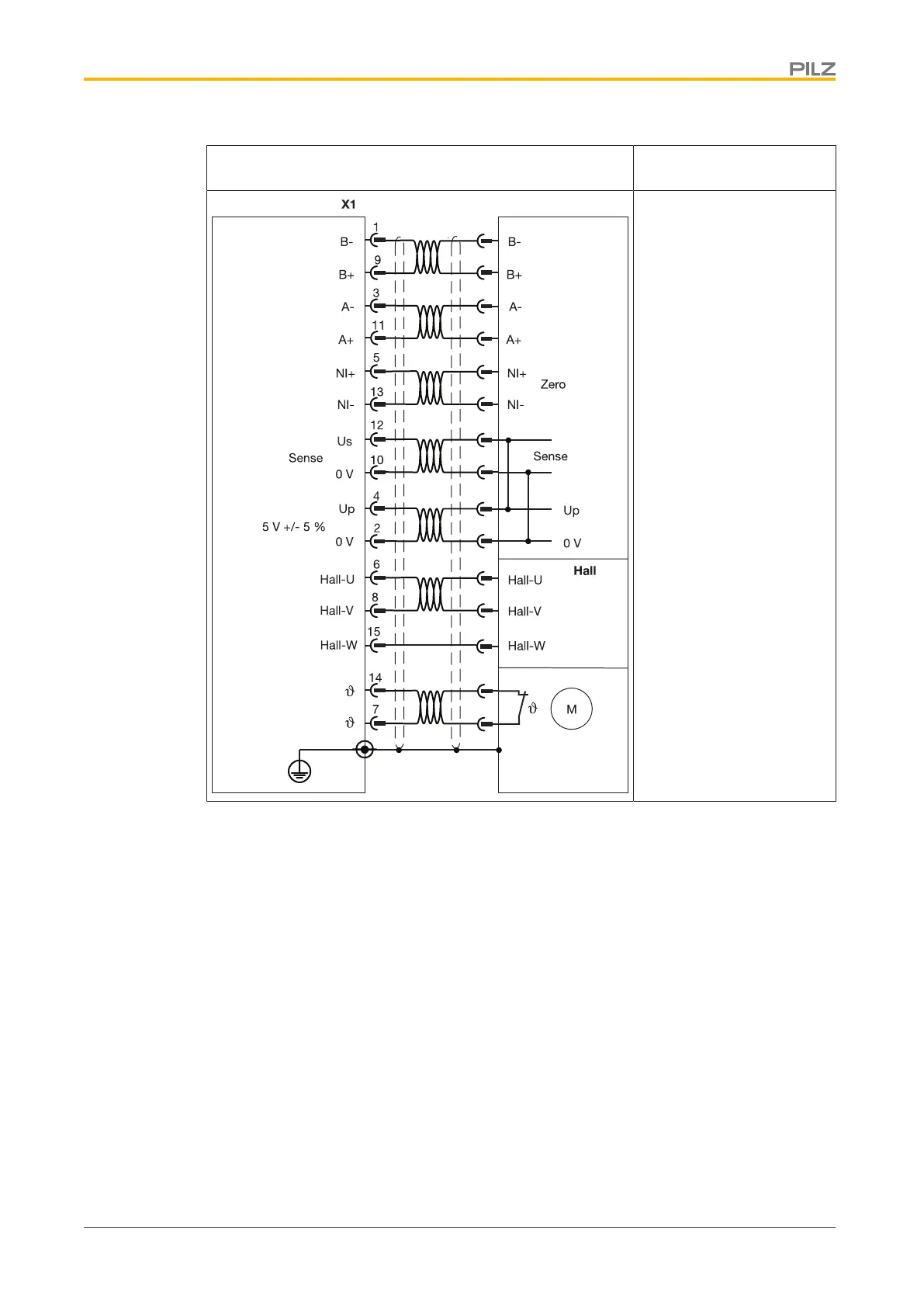

Input circuit Incremental encoder 5 V,
with Hall
Comcoder
Servo Drive
Voltage supply and thermal
switch in the motor is con-
nected to X1 via the en-
coder cable
Twisted pair, shielded
Shield connection in the
connector
Connection
