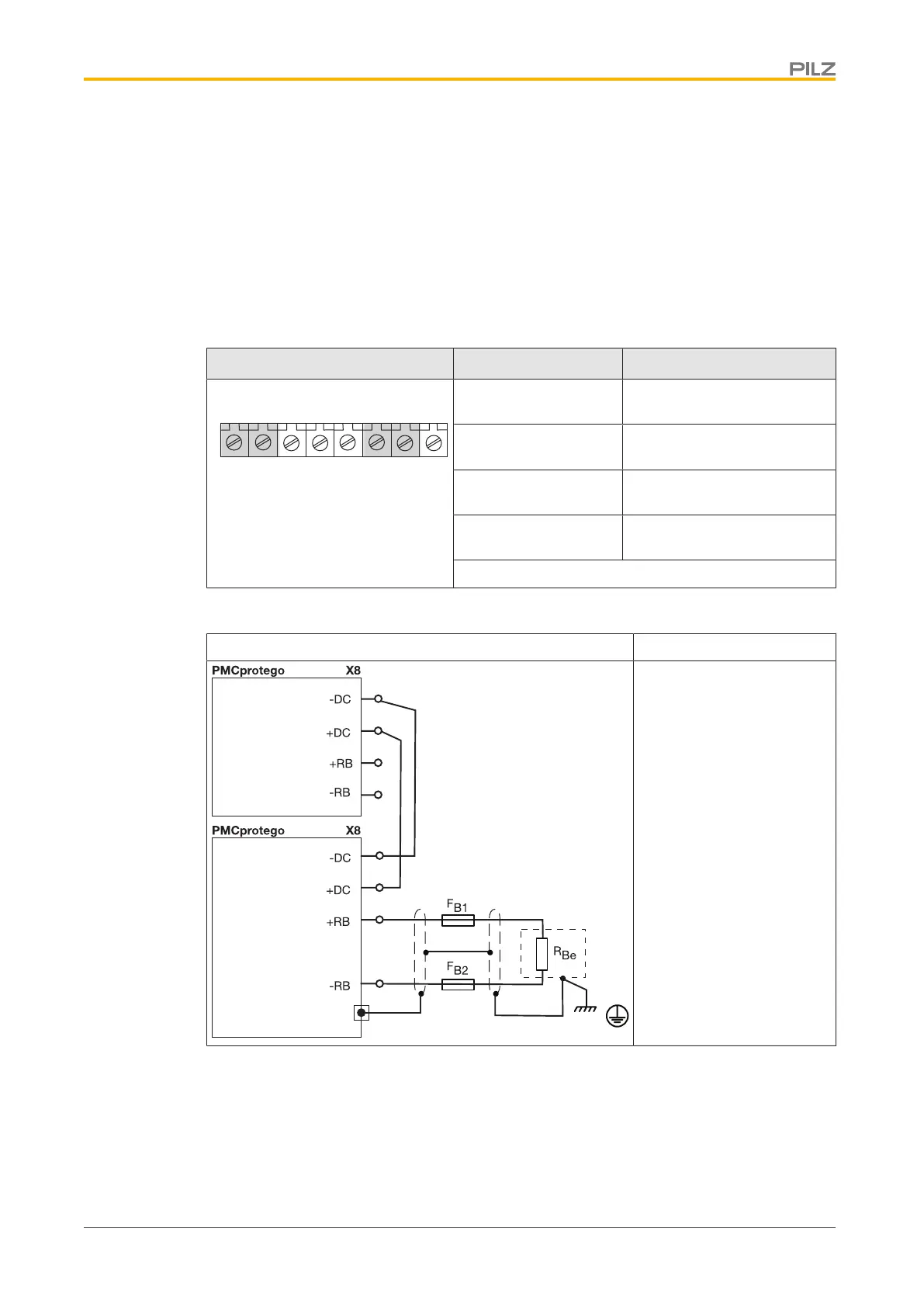

6.6.5 Intermediate circuit
Under “Connection cables”, please note the requirements for the:
} Cable cross sections
} Insulation material
The connections for the intermediate circuit are
} Not short circuit and earth fault proof
} Not reverse polarity protected.
Connector X8 Designation Description
X8
-RB U2W2 V2+RB -DC +DC PE
-RB Connection of external brake
resistor -
+RB Connection of external brake
resistor +
-DC Intermediate circuit voltage -
DC
+DC Intermediate circuit voltage
+DC
Connector pin assignment
Output/input circuit Intermediate circuit
Cable runs ≤500 mm:
Use unshielded single wires
(25 mm²)
Cable lengths >500 mm:
Use shielded cables.
Connection
