Pilz PMCprotego D.48 User Manual

Wiring
Operating Manual PMCprotego D.48, PMCprotego D.72
1001735-EN-04
153
6.7.5.16 Incremental encoder ROD (AquadB) 24 V, without zero pulse, with Hall encoder
Under “Connection cables”, please note the requirements for the:
} Cable cross sections
} Insulation material
If the cable length is >25m, please speak to our Customer Support.

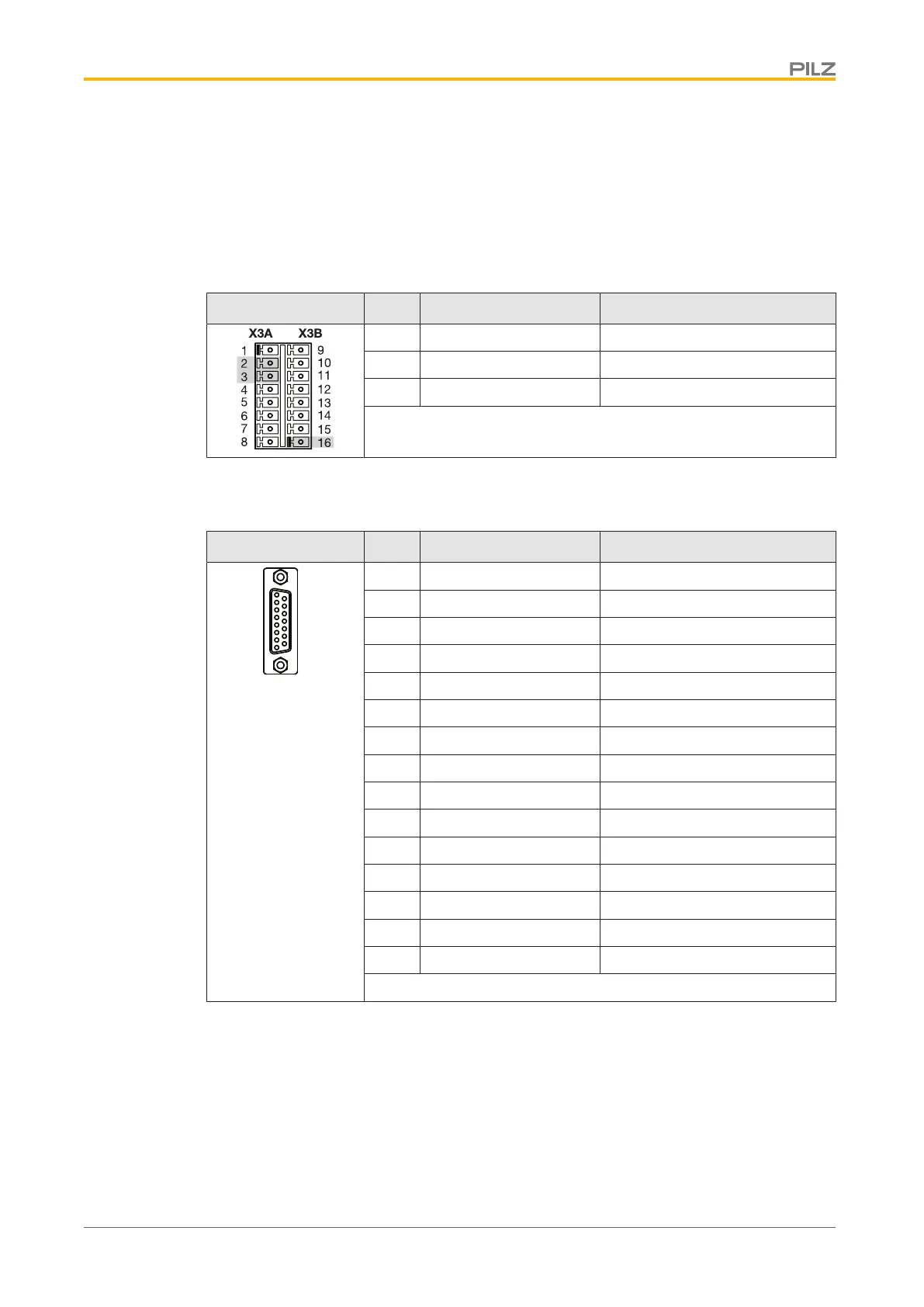

Connector X3A/X3B Pin Designation Description
2 DIGITAL-IN1 Track A
3 DIGITAL-In2 Track B
16 DGND Reference earth for digital inputs
Connector pin assignment
Connector X1 Pin Designation Description
1
8
9
15
1 nc -
2 0 V Supply voltage 0 V
3 nc -
4 Up Supply voltage 5V
5 nc -
6 Hall-U Hall-U
7 ϑ Thermal switch (+)
8 Hall-V Hall-V
9 nc -
10 Sense 0 V Supply voltage feedback 0V
11 nc -
12 Sense Up. Supply voltage feedback 5V
13 nc -
14 ϑ Thermal switch (-)
15 Hall-W Hall-W
n.c.: Not connected
Connector pin assignment
