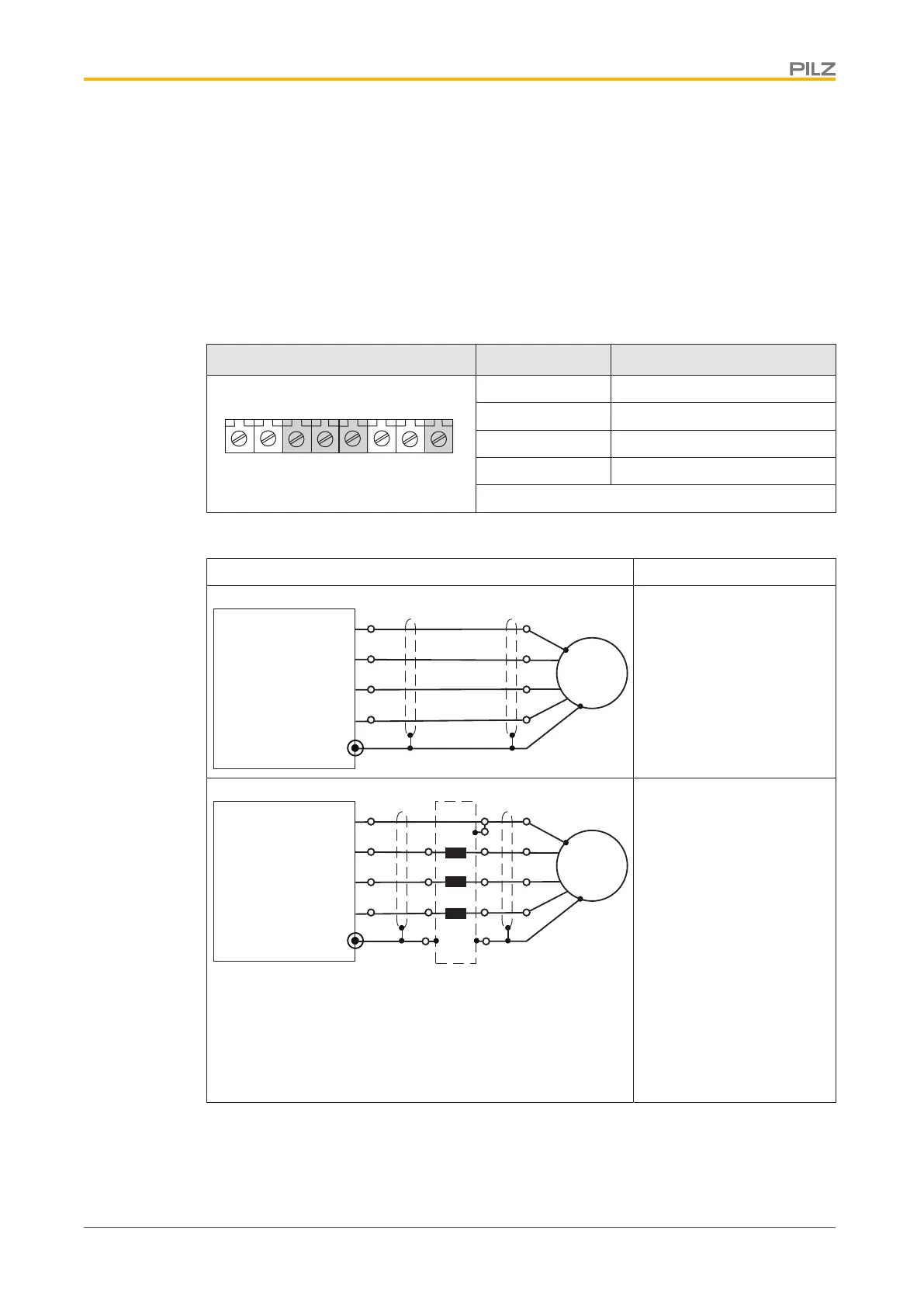

6.6.2 Motor
Under “Connection cables”, please note the requirements for the:
} Cable cross sections
} Insulation material
} The motor connection must be shielded appropriately.
Connector X8 Designation Description
X8
-RB U2W2 V2+RB -DC +DC PE
W2 Motor connection phase W
V2 Motor connection phase V
U2 Motor connection phase U
PE Earth conductor
Connector pin assignment
Output circuit Motor with brake
PMCprotego X8
M
PE
U2
V2
W2
PE
U
V
W
Cable length ≤25 m
Connect the shielding on
both ends
PMCprotego X8
M
PE
U2
V2
W2
PE
U
V
W
3L
Cable length >25 m
Leakage currents on long
cable runs place a load on
the servo amplifier's output
stage.
Wire the motor choke (ac-
cessories) into the motor
cable, close to the amplifier.
Connect the shielding on
both ends.
Connection
