Wiring
Operating Manual PMCprotego D.48, PMCprotego D.72
1001735-EN-04
157
6.7.5.18 Hall encoder
Under “Connection cables”, please note the requirements for the:
} Cable cross sections
} Insulation material
If the cable length is >25m, please speak to our Customer Support.

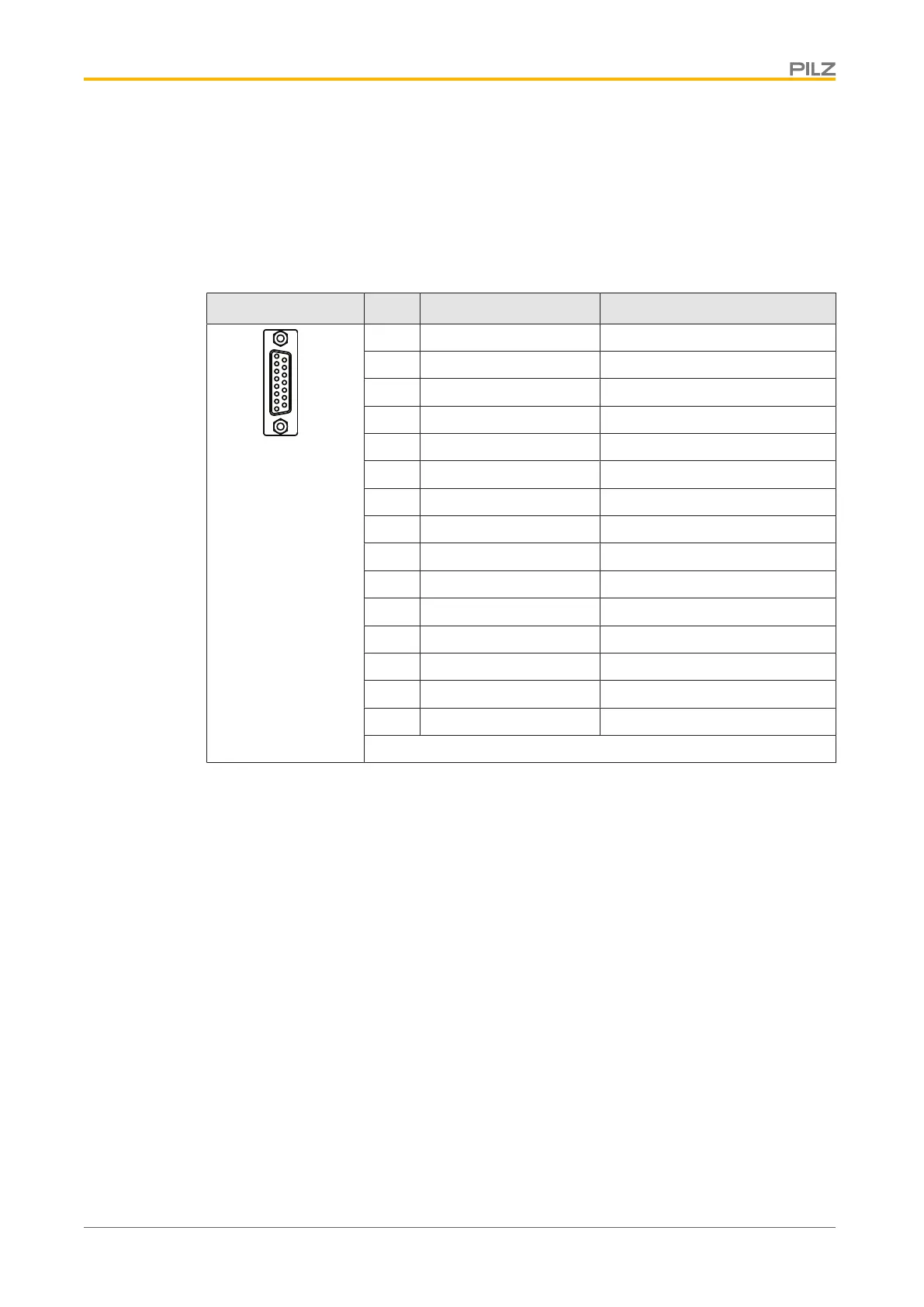

Connector X1 Pin Designation Description
1
8
9
15
1 n.c. -
2 0 V Supply voltage 0 V
3 n.c. -
4 Up Supply voltage
5 n.c. -
6 Hall-U Hall-U
7 ϑ Thermal switch (+)
8 Hall-V Hall-V
9 n.c. -
10 0 V Supply voltage 0 V
11 n.c. -
12 Us Supply voltage
13 n.c. -
14 ϑ Thermal switch (-)
15 Hall-W Hall-W
n. c. not connected
Connector pin assignment
