Installation
Operating Manual PMCprotego D.48, PMCprotego D.72
1001735-EN-04
93
5.4 Installing the shielding plate
} Installation materials: Unscrew the screws (see illustration) and re-use them
} Required tool: Cross slot screwdriver

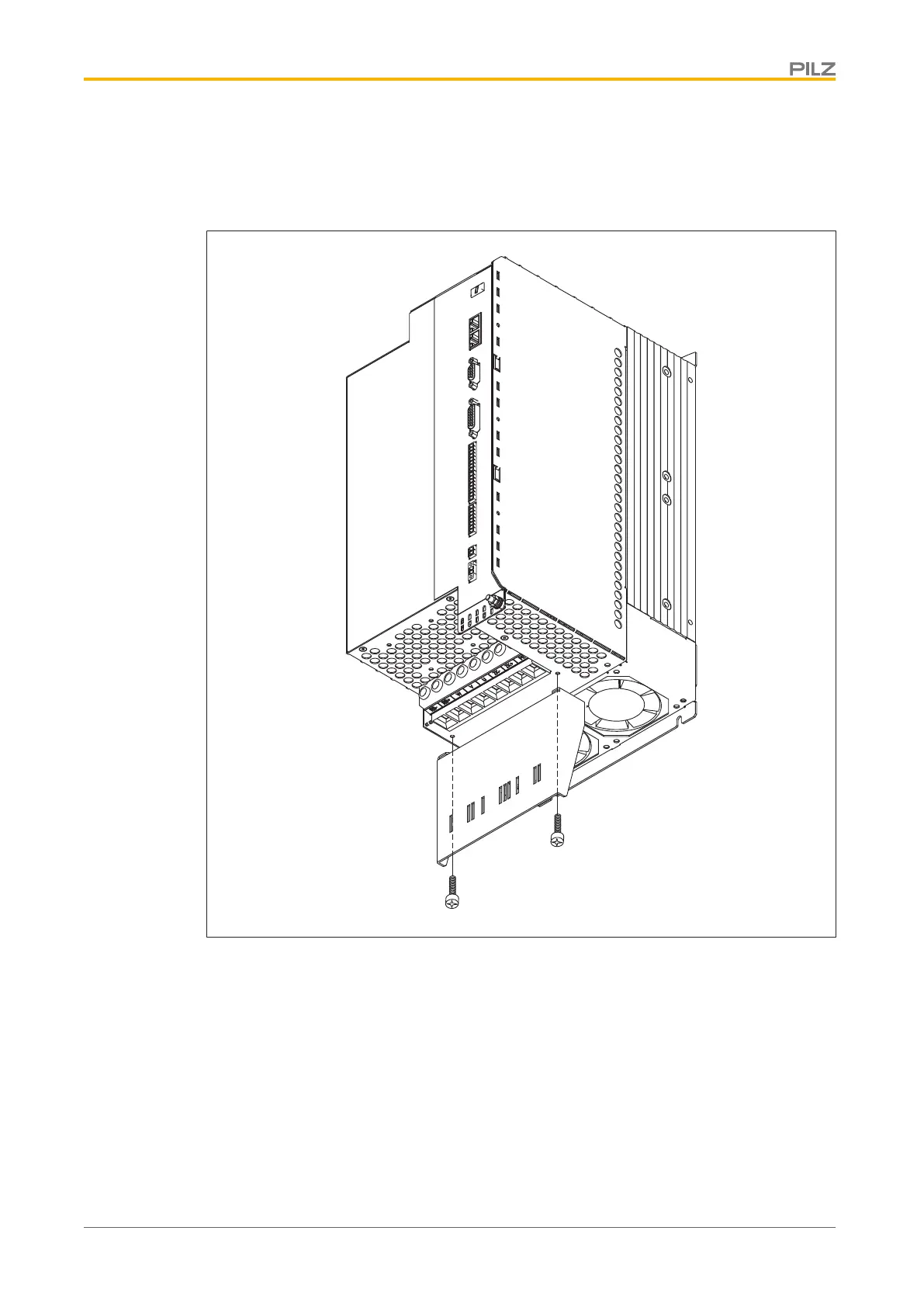

Fig.: Installing the shielding plate on the servo amplifier
