Pilz PMCprotego D.48 - 6.8.3.6 SinCos encoder with SSI interface

Wiring
Operating Manual PMCprotego D.48, PMCprotego D.72
1001735-EN-04
179

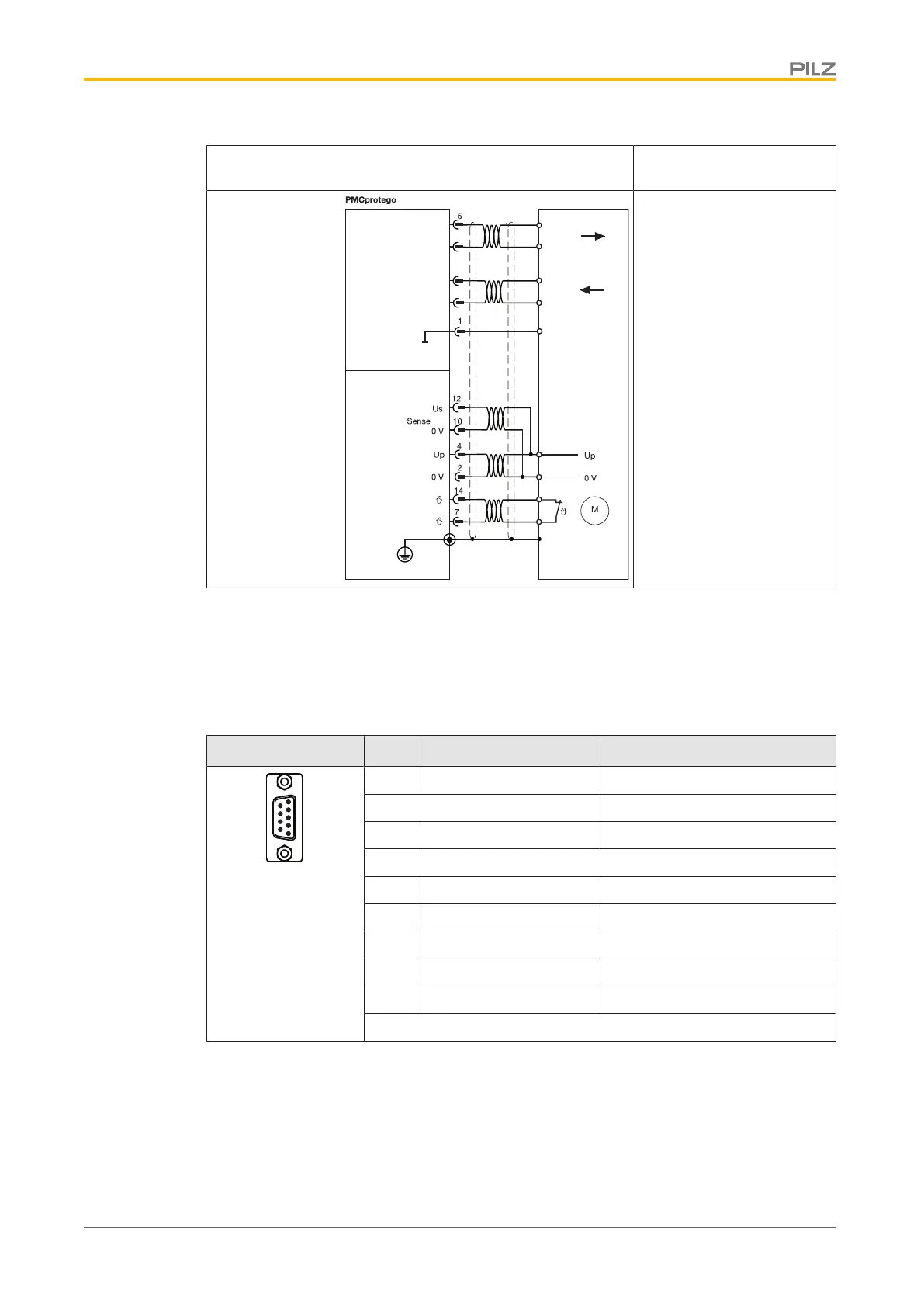

Input circuit Absolute encoder with SSI
interface
X5
X1
CLOCK
CLOCK\
DATA
4
6
GND
GND
Absolut SSI
CLOCK
CLOCK\
7
DATA
DATA\DATA\
DATA\
Voltage supply and thermal
switch in the motor is con-
nected to X1 via the en-
coder cable.
Twisted pair, shielded
Shield connection in the
connector
Connection
6.8.3.6 SinCos encoder with SSI interface
If the cable length is >50 m, please speak to our Customer Support.
Connector X5 Pin Designation Description
1
5
6
9
1 GND Ground
2 n.c. --
3 n.c. --
4 CLOCK\ Test pulse output inverted
5 CLOCK Test pulse output
6 DATA Data
7 DATA\ Data inverted
8 n.c. --
9 n.c. --
n.c.: Not connected
Connector pin assignment
