Installation
Operating Manual PMCprotego D.48, PMCprotego D.72
1001735-EN-04
91
5.2 Dimensions
243 (9.57'')
477 (18.78'')
369 (14.53'')
363 (14.29'')
385 (15.16'')
118 (4.65'')
227 (8.94'')
145 (5.71'')
190 (7.48'')

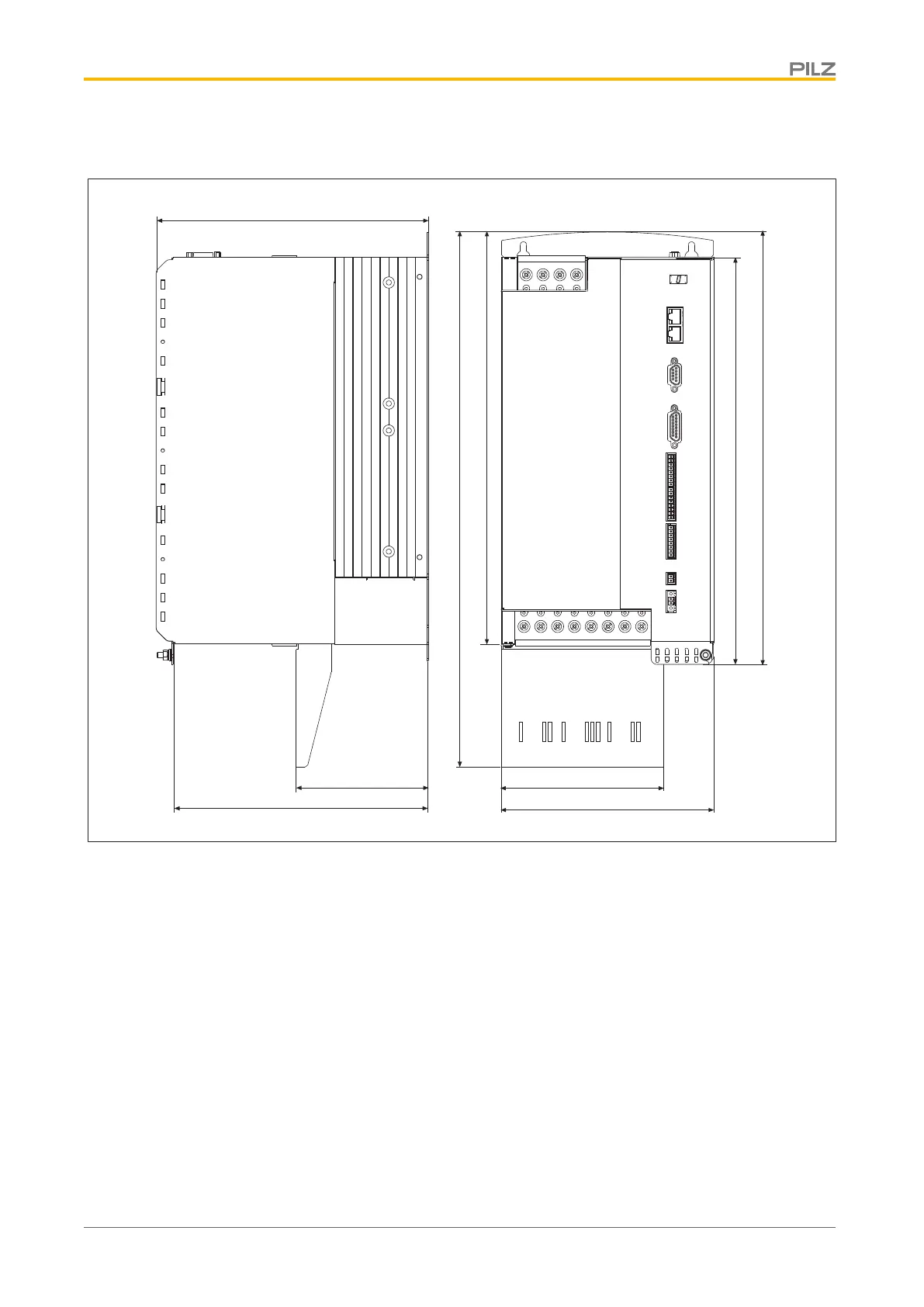

Fig.: Dimensions of the PMCprotego D.48/D.72
5.3 Installing the servo amplifier
} Installation materials: 4hexagon socket cylinder head screws DIN4762, M5
} Required tool: Hexagonal wrench 4 mm
Proceed as follows:
} Drill M5 holes in the control cabinet’s mounting plate, as shown in the illustrations.
} Attach the servo amplifier to the mounting plate in your control cabinet.
