6.8.3 Expansion card PosI/O, PosI/O-AIO
Please note:
If you wish to use the encoder emulation function you will need the expansion card PosI/O
or PosI/O-AO. The expansion card is located in slot 2 or 3.
INFORMATION
A maximum of one expansion card PosI/O or PosI/O-AIO may be used in a
PMCprotegoD.
Under “Connection cables”, please note the requirements for the:
} Cable cross sections
} Insulation material
6.8.3.1 Electronic gearing
Master-Slave mode

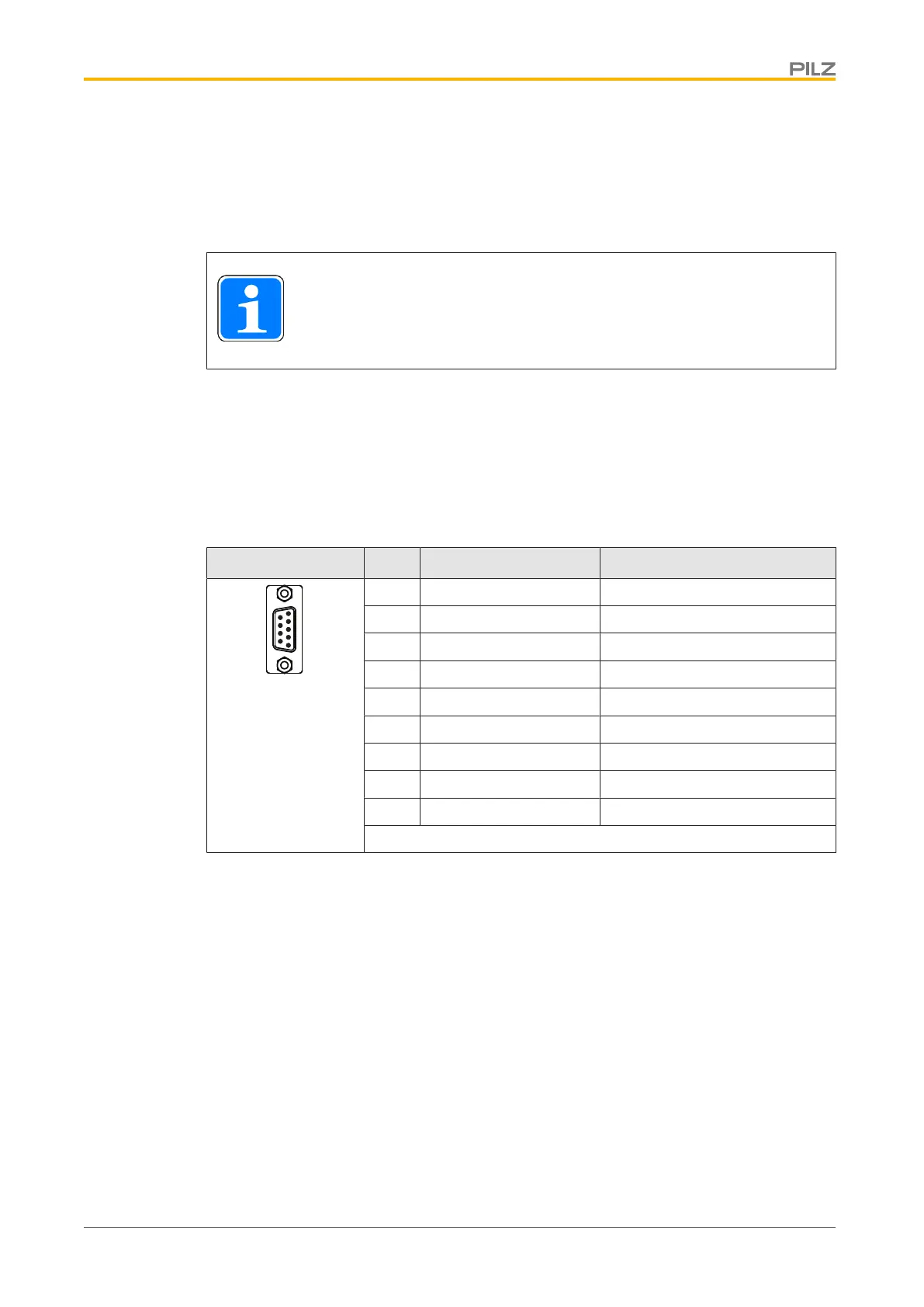

Connector X5 Pin Designation Description
1
5
6
9
1 GND Ground
2 n.c. --
3 n.c. --
4 A- Channel A inverted
5 A+ Channel A
6 B+ Channel B
7 B- Channel B inverted
8 n.c. --
9 n.c. --
n.c.: Not connected
Connector pin assignment
