Wiring

Operating Manual PMCprotego D.48, PMCprotego D.72

1001735-EN-04

145

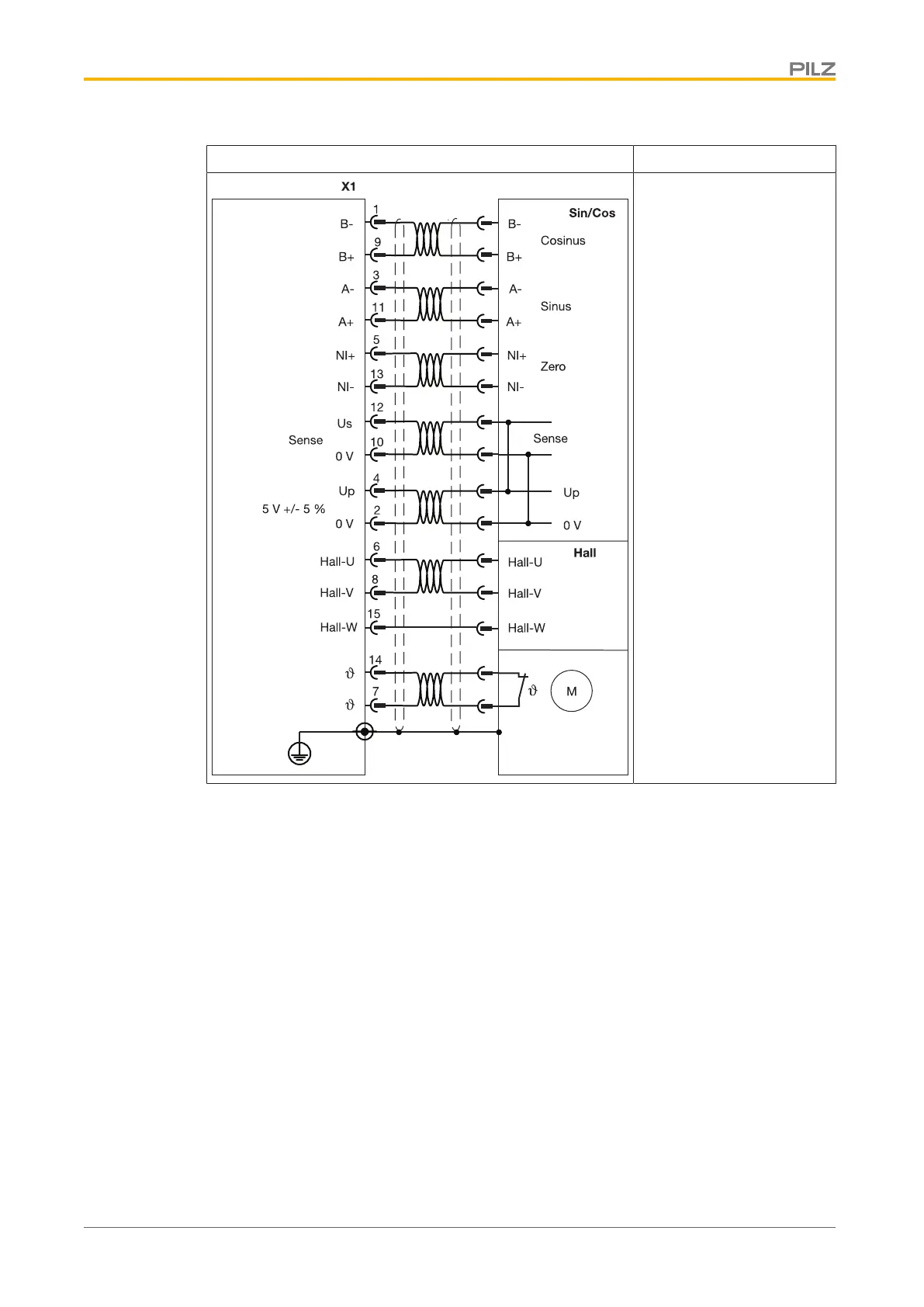

Input circuit SinCos encoder with Hall

Servo Drive

Thermal switch in the motor

is connected via the en-

coder cable at X1.

Twisted pair, shielded

Shield connection in the

connector

Connection
