Wiring

Operating Manual PMCprotego D.48, PMCprotego D.72

1001735-EN-04

133

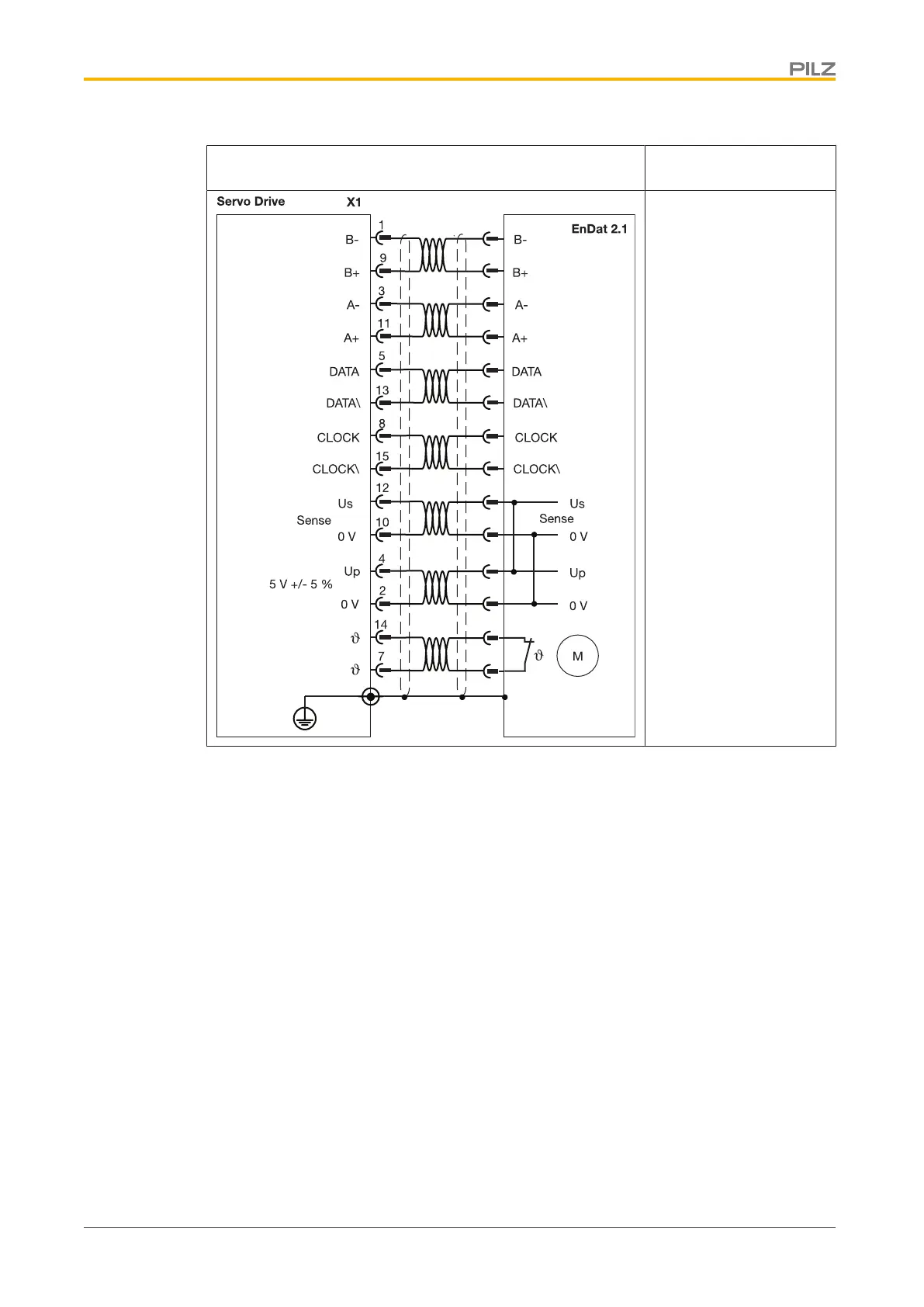

Input circuit SinCos encoder with

EnDat interface

Motor

Thermal switch in the mo-

tor is connected via the

encoder cable at X1.

Twisted pair, shielded

Shield connection in the

connector

Connection
