Wiring
Operating Manual PMCprotego D.48, PMCprotego D.72
1001735-EN-04
135

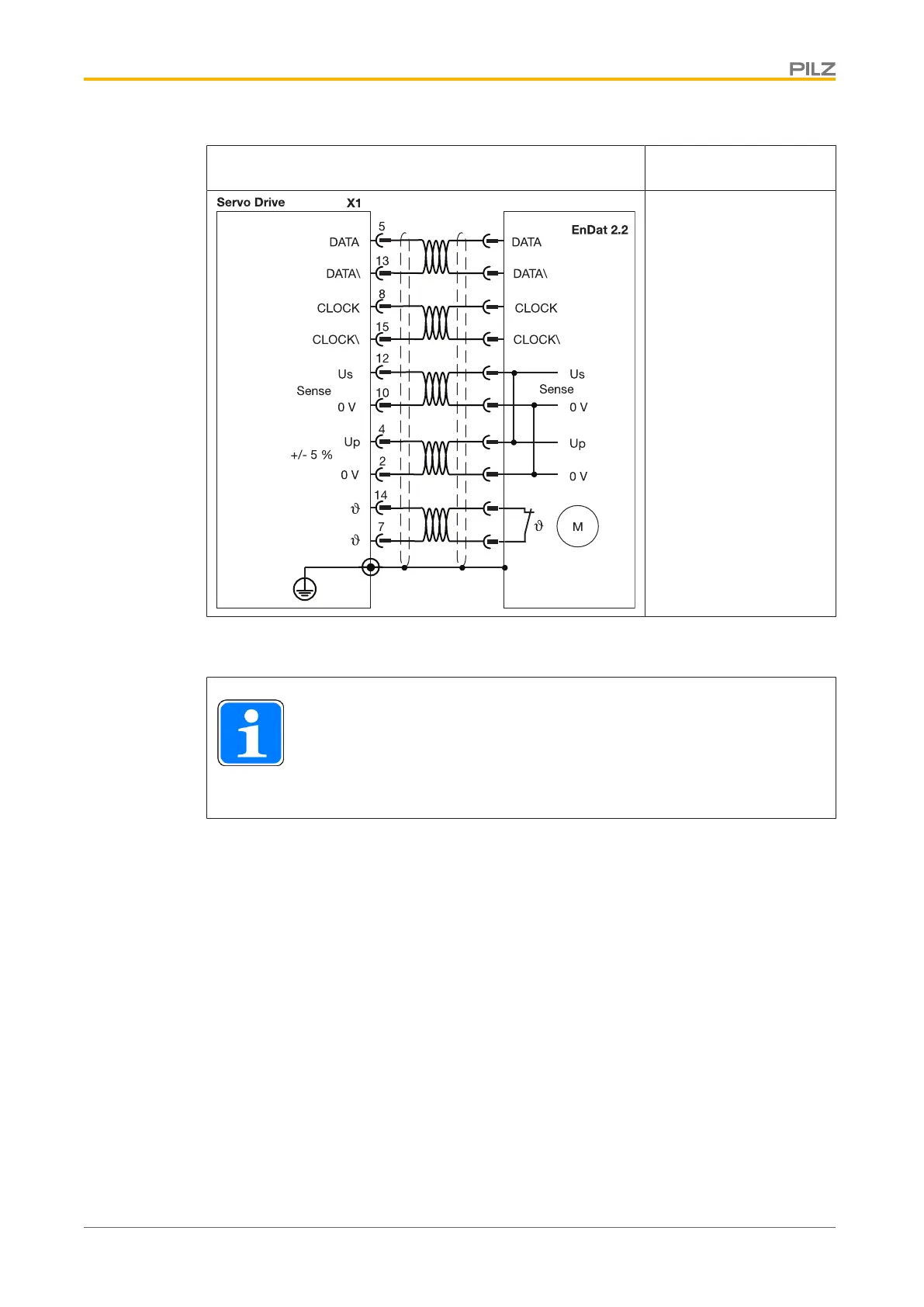

Input circuit Encoder with EnDat 2.2
interface
5V / 12V
Motor
Thermal switch in the mo-
tor is connected via the
encoder cable at X1.
Twisted pair, shielded
Shield connection in the
connector
Connection
INFORMATION
The encoder supply voltage from 3.6 – 14 V can be operated without a
sensor cable. (FBTYPE 34)
