Wiring
Operating Manual PMCprotego D.48, PMCprotego D.72
1001735-EN-04
151

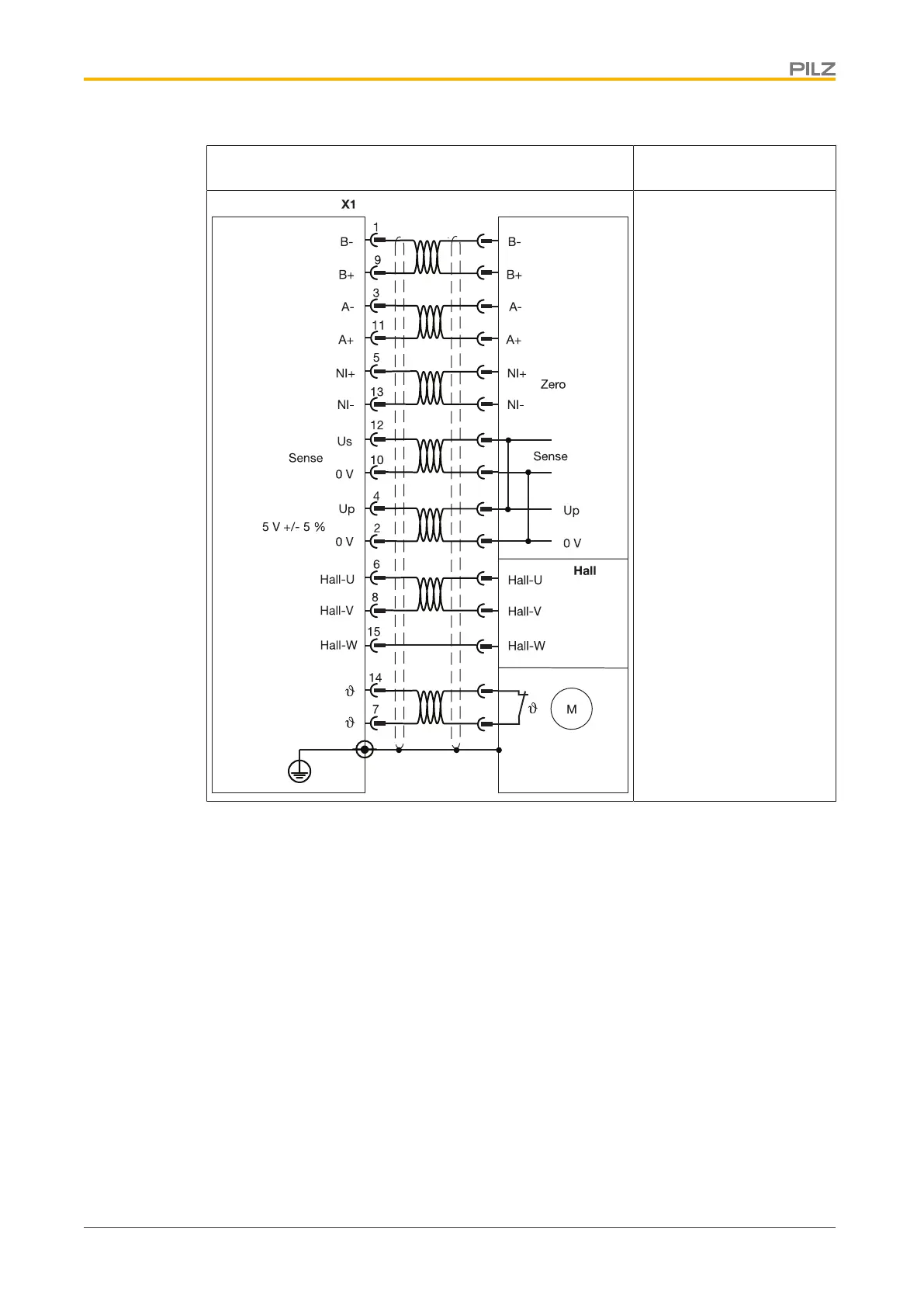

Input circuit Incremental encoder 5 V
with Hall encoder
Comcoder
Servo Drive
Thermal switch in the motor
is connected via the en-
coder cable at X1
Twisted pair, shielded
Shield connection in the
connector
Connection
