Wiring
Operating Manual PMCprotego D.48, PMCprotego D.72
1001735-EN-04
181

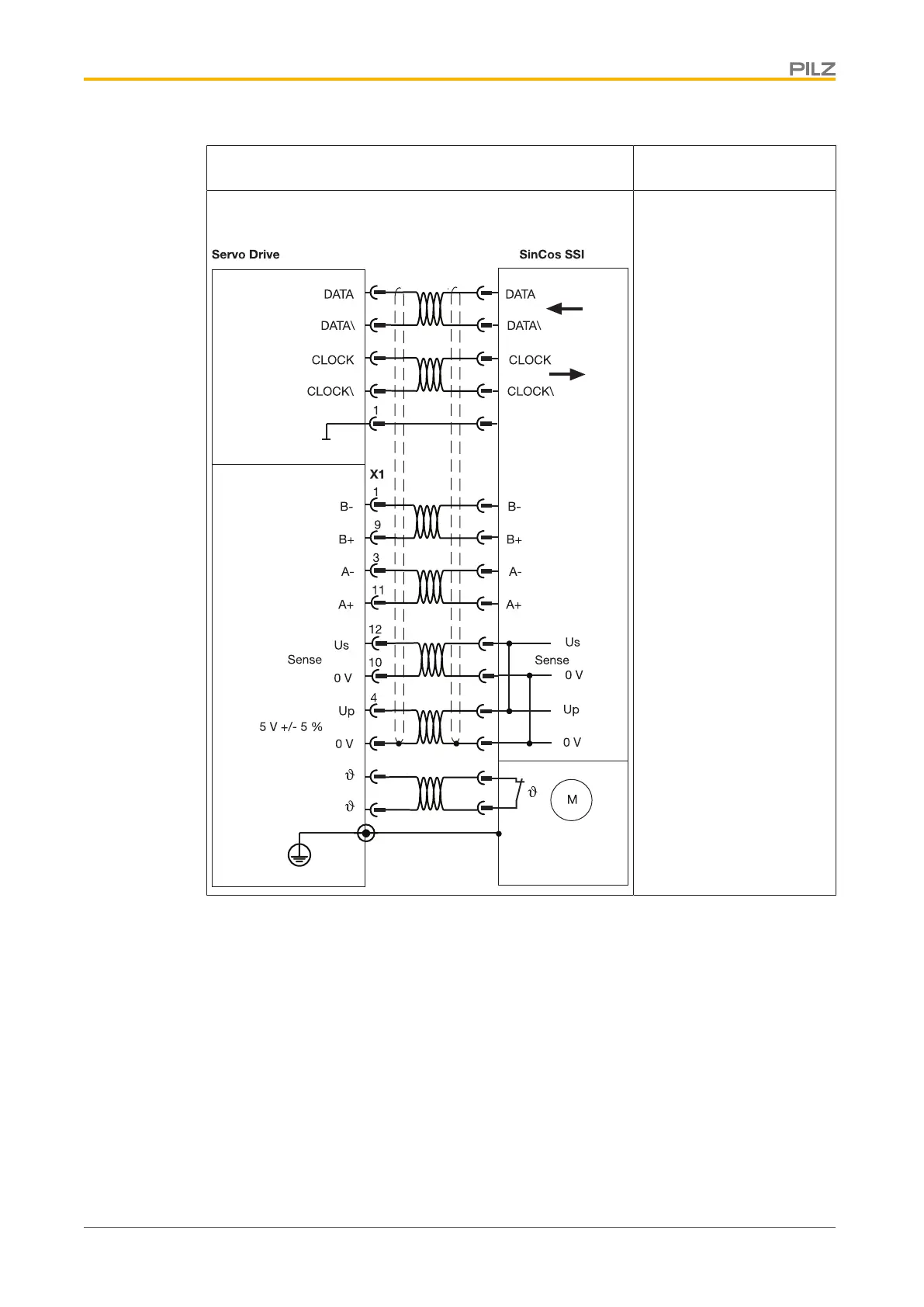

Input circuit SinCos encoder with SSI
interface
GND
GND
X5
6
7
5
4
14
7
2
Cosinus
Sinus
Voltage supply and thermal
switch in the motor is con-
nected to X1 via the en-
coder cable.
Twisted pair, shielded
Shield connection in the
connector
Connection
