Pilz PMCprotego D.48 User Manual

Function Description
Operating Manual PMCprotego D.48, PMCprotego D.72
1001735-EN-04
88

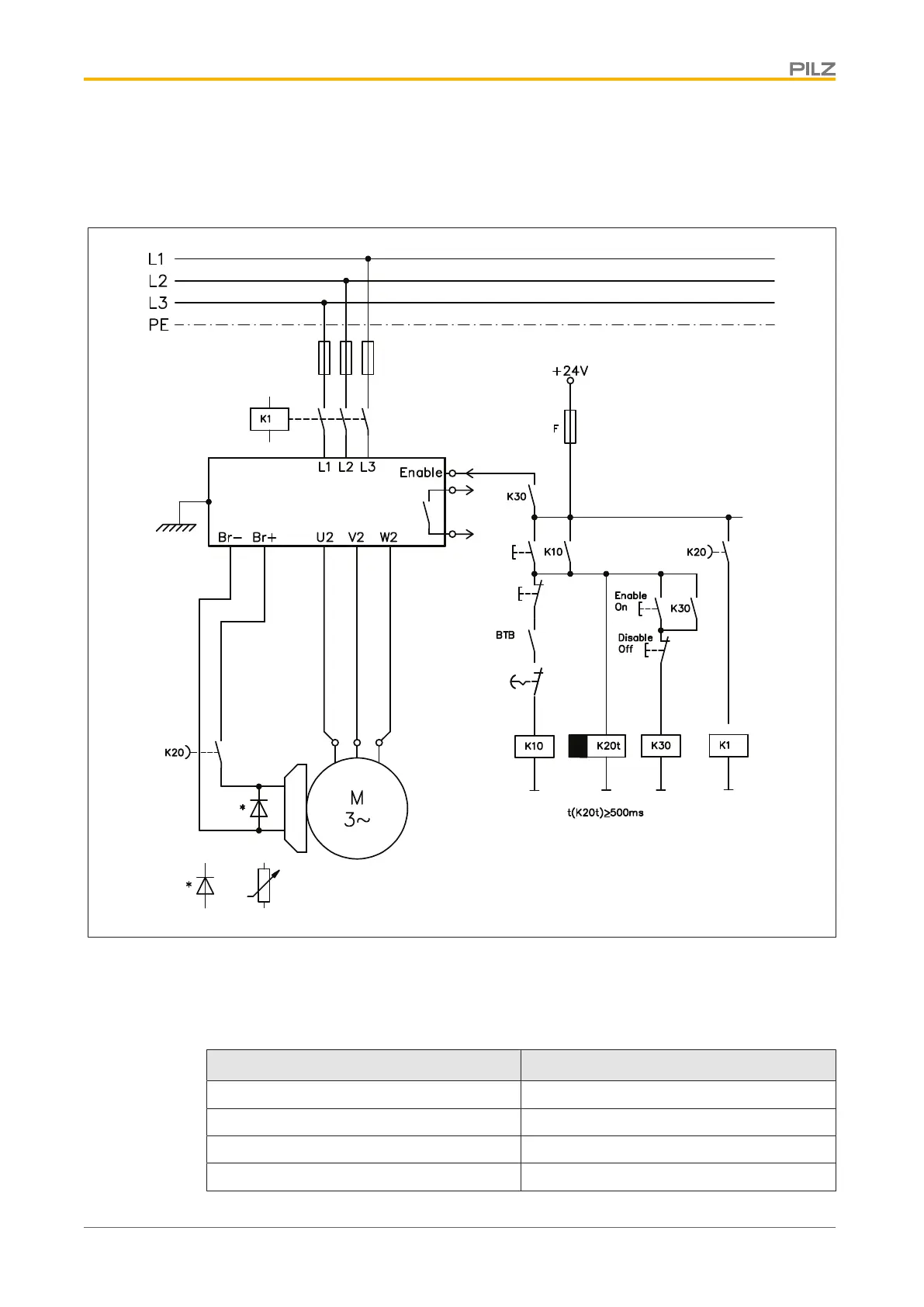

Wiring suggestion with external wiring
Implementation with category 2 emergency stop,
Control function with auxiliary contactors, without safety card PMCprotego S from Pilz.
or
S1
S2
S3
BTB
Fig.: Stop category 2
} S1: On
} S2: Off
} S3: E-STOP
Motor output P
M
Motor circuit brake resistor R
M
Up to 2.5 kW 27 Ω (20 W) 1000 V
2.5 kW - 5 kW 8.2 Ω (50 W) 1000 V
5 kW - 10 kW 2.7 Ω (110 W) 1000 V
10 kW - 20 kW 1 Ω (300 W) 1000 V
