Chapter A - GENERAL & TECHNICAL DATA
Planmeca Compact i A-5
TECHNICAL SPECIFICATIONS
Technical Manual

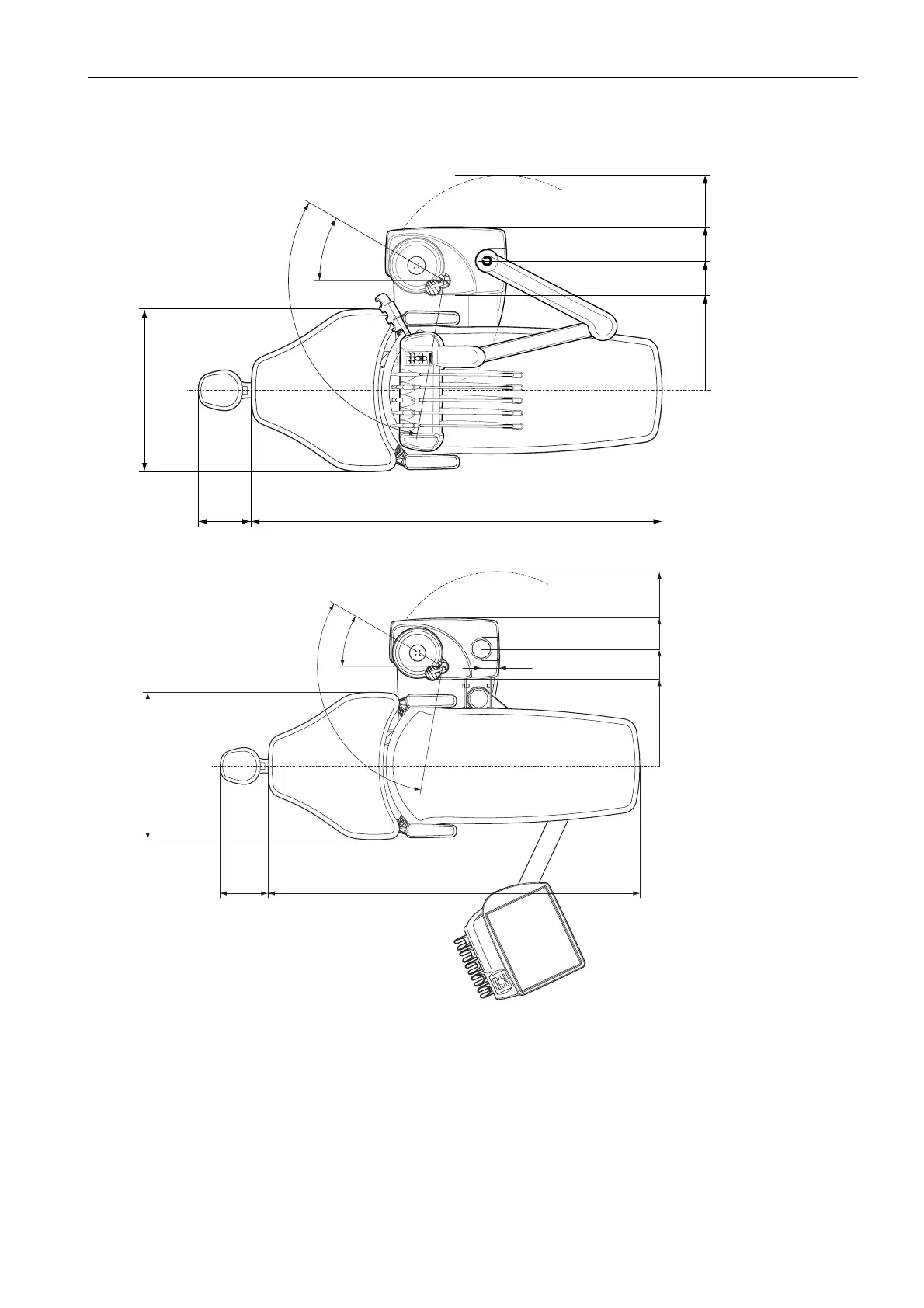

Dimensions
30˚
max.
390mm
(15.4")
1620mm (63.8") (fixed seat 610)
1520mm (60") (automatic seat 510)
1470mm (57.9") (automatic seat 460)
80
850mm (33.5") (swing of service door)
645mm (25.4")
510mm (20.1")
375mm (14.8")
0
(swing of cuspidor) 110˚
640mm (25.2") (Backrest 584) 680mm (26.8") (Backrest 664)
640mm (25.2") (Backrest 584) 680mm (26.8") (Backrest 664)
375mm (14.8")
0
510mm (20.1")
645mm (25.4")
850mm (33.5") (swing
of service door)
max.
390mm
(15.4")
1620mm (63.8") (fixed seat 610)
1520mm (60") (automatic seat 510)
1470mm (57.9") (automatic seat 460)
30˚
(swing of cuspidor) 110˚
OP delivery arm
Side delivery arm
