Planmeca Compact I User Manual

Chapter G - PARTS REPLACEMENT & REPAIR
G-4 Planmeca Compact i
UPHOLSTERIES REPLACEMENT
Technical Manual
Backrest upholstery
a) Detach the lower corners of the backrest upholstery and remove the upholstery by pulling it.
b) Attach the new backrest upholstery by bending it carefully from its sides and aligning it
properly during the attaching. Press first the center of the upholstery into position and then the
edges to attach all the tapes to their counterparts.

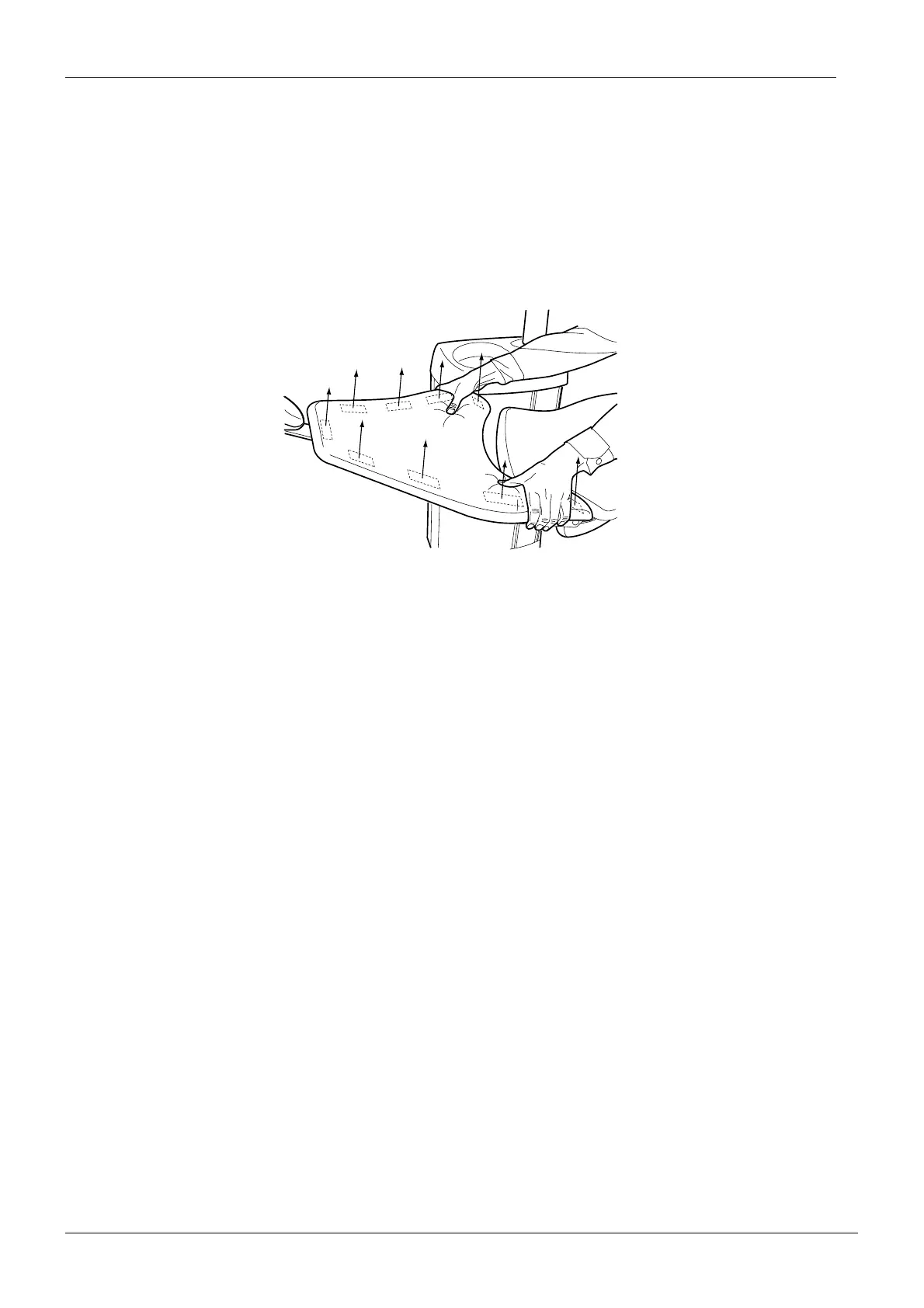

Backrest upholstery:
Detach tapes and pull.

Planmeca Compact I Specifications

General

Spittoon	Yes
Operating Light	LED
Imaging Technology	Digital
X-ray Tube Voltage	60-70 kV
X-ray Tube Current	7 mA
Focal Spot Size	0.8 mm
Exposure Time Range	3.2 s
Power Supply	50/60 Hz
