Chapter G - PARTS REPLACEMENT & REPAIR
Planmeca Compact i G-5
UPHOLSTERIES REPLACEMENT
Technical Manual
Seat upholstery

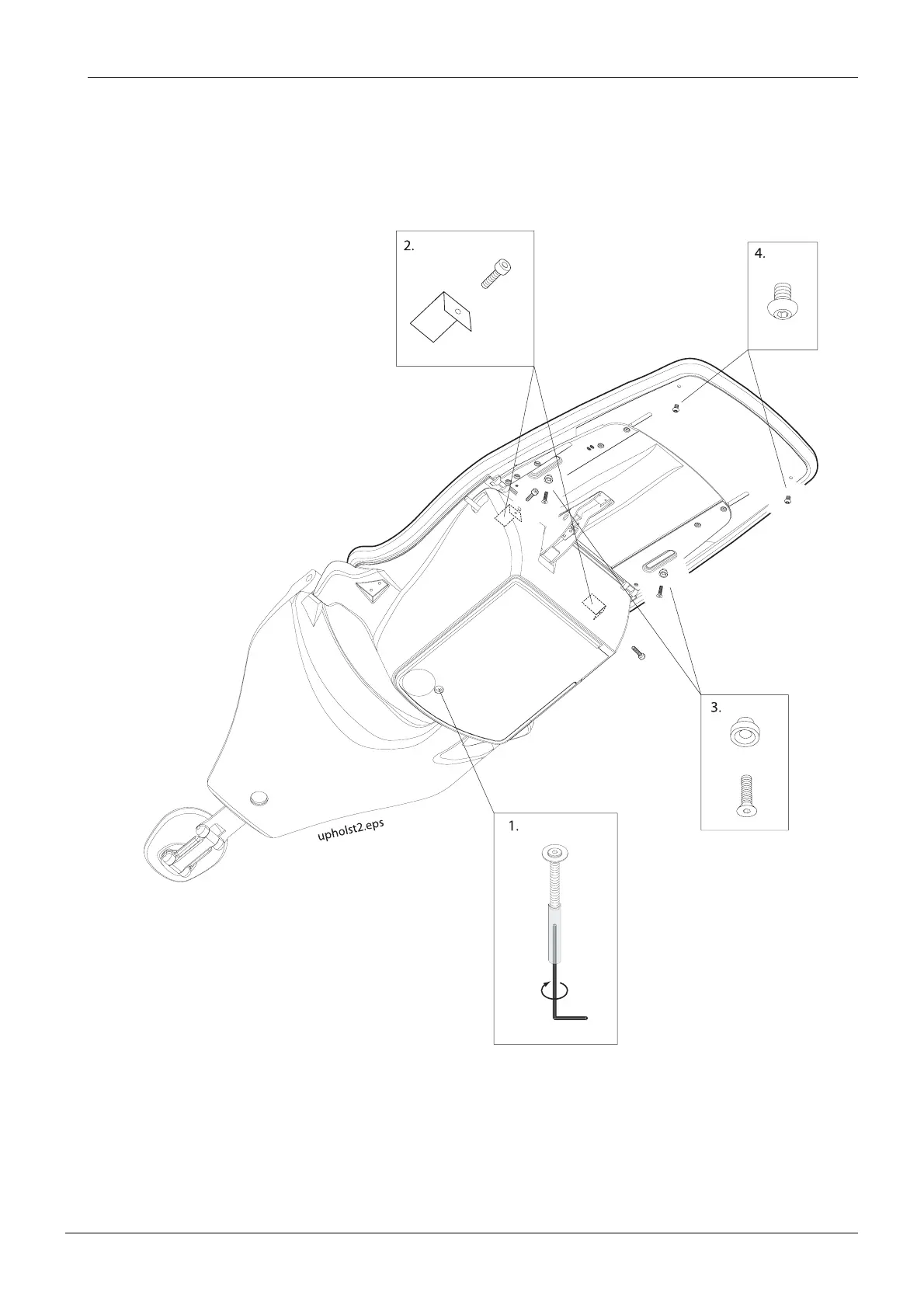

a) Loosen the attachment screw by turning it clockwise (figure below, 1). Unscrew the other six
screws as shown on the figure below (2-4).
b) Slide the seat upholstery towards the footrest so that the attachment screw comes out from
the groove of the upholstery’s backplate. Remove the seat upholstery.
