Chapter G - PARTS REPLACEMENT & REPAIR
G-8 Planmeca Compact i
INSTRUMENT MULTIPLEXER RELATED
Technical Manual

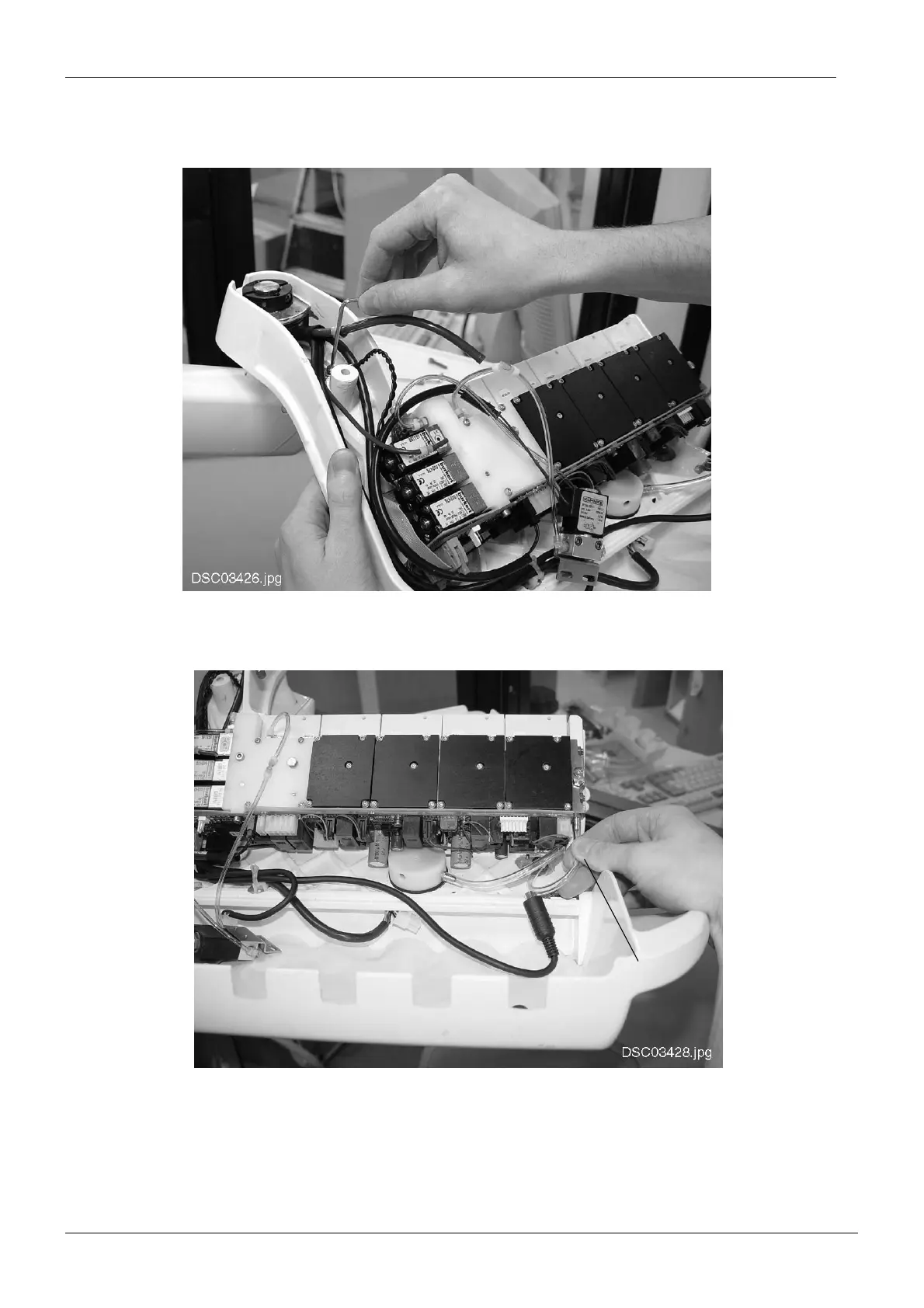

j) Attach the new multiplexer to the instrument console. Attach the grounding cable to the
instrument console.
k) Connect the return air tube.
Return air tube
