Chapter G - PARTS REPLACEMENT & REPAIR
G-28 Planmeca Compact i
MOTORS REPLACEMENT
Technical Manual

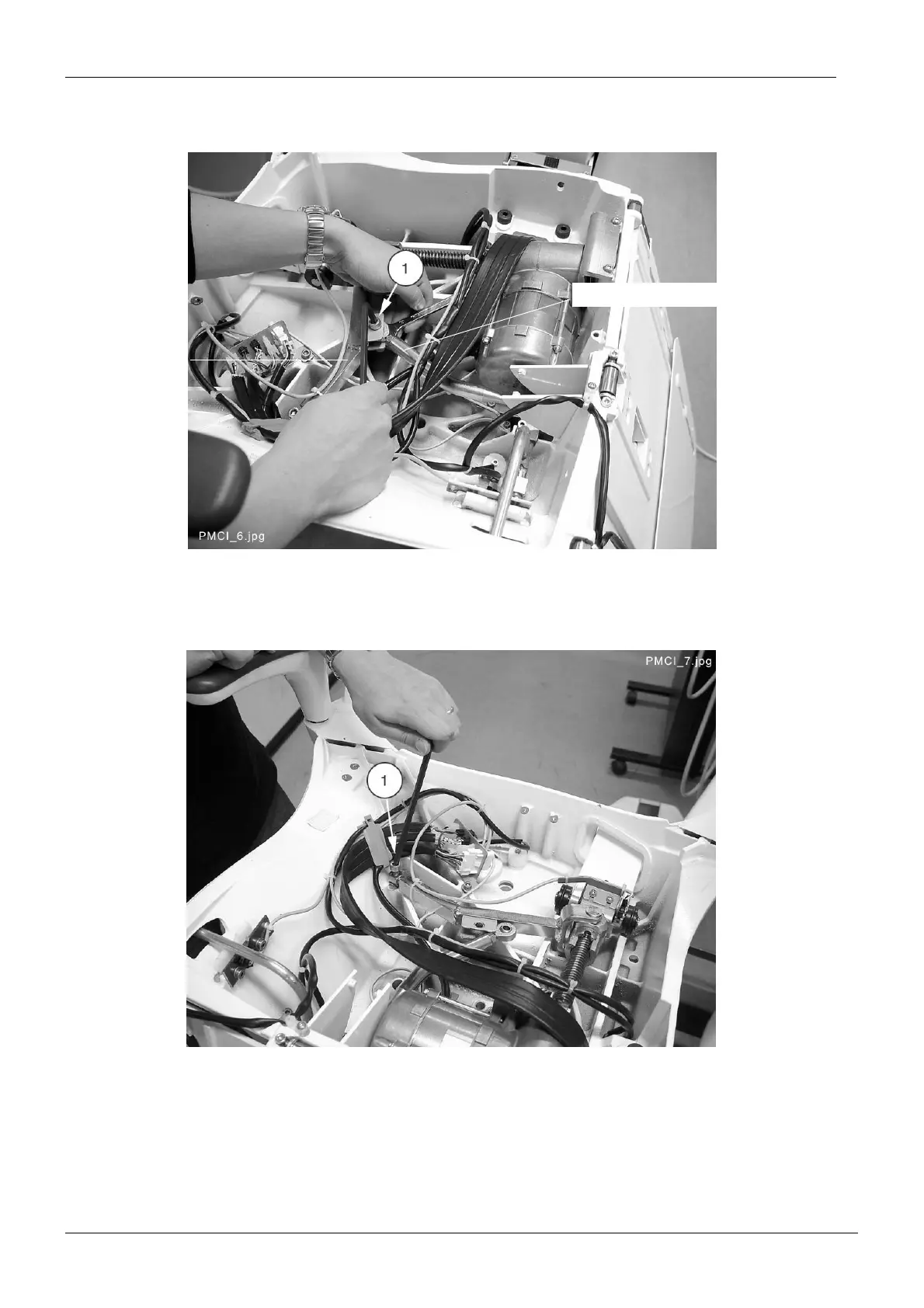

e) Detach the legrest support bar from the spindle fork assembly by unscrewing the attachment
screw using the 6mm Allen key (1).
f) Detach the spindle fork assembly from the seat casting by unscrewing the attachment screw
using the 6mm Allen key (1).
Legrest support bar
Spindle fork
assembly
