Chapter G - PARTS REPLACEMENT & REPAIR
Planmeca Compact i G-29
MOTORS REPLACEMENT
Technical Manual

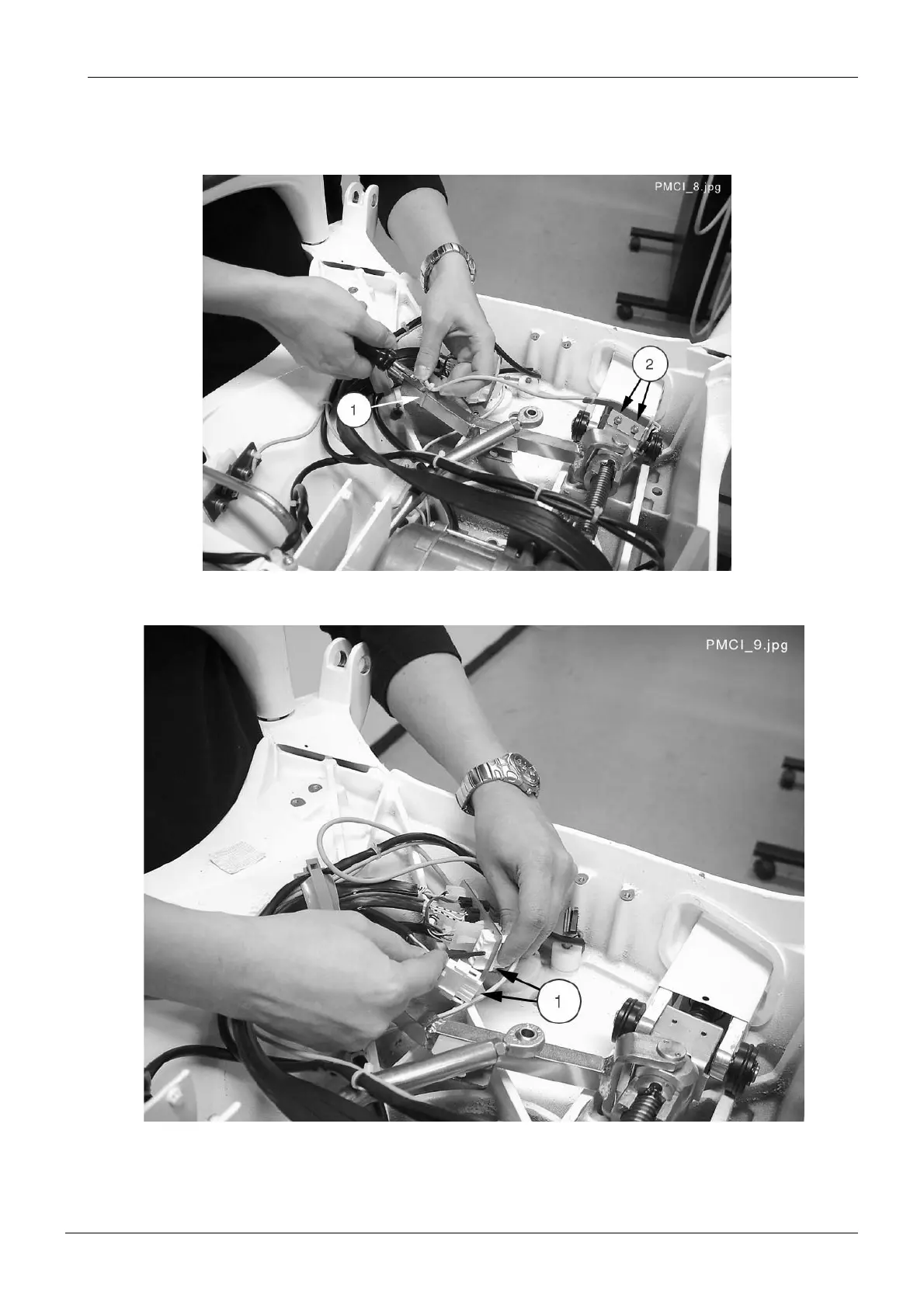

g) Cut the cable tie located on the spindle fork assembly (1) and unscrew the two attachment
screws of the backrest emergency microswitch attachment plate using the 3mm Allen key and
detach the attachment plate from the backrest motor assembly (2).
h) Disconnect the Backrest motor cable from the seat cable adapter (1).
