Chapter G - PARTS REPLACEMENT & REPAIR
G-30 Planmeca Compact i
MOTORS REPLACEMENT
Technical Manual

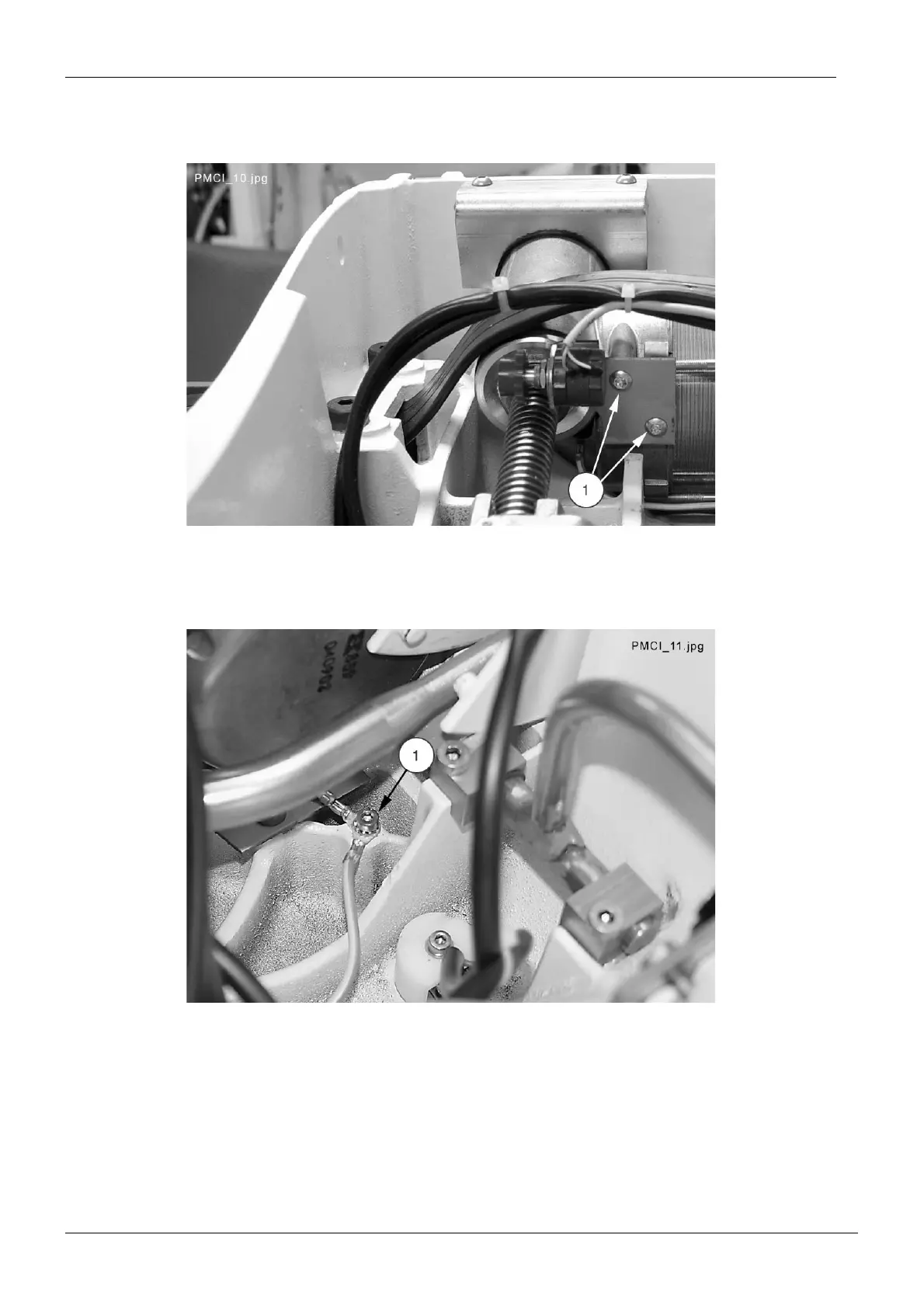

i) Detach the position sensor plate by unscrewing the two Ejot Torx DG 50x10 A2 attachment
screws (1).
j) Detach the backrest motor grounding cable (1).
