Chapter G - PARTS REPLACEMENT & REPAIR

Planmeca Compact i G-31

MOTORS REPLACEMENT

Technical Manual

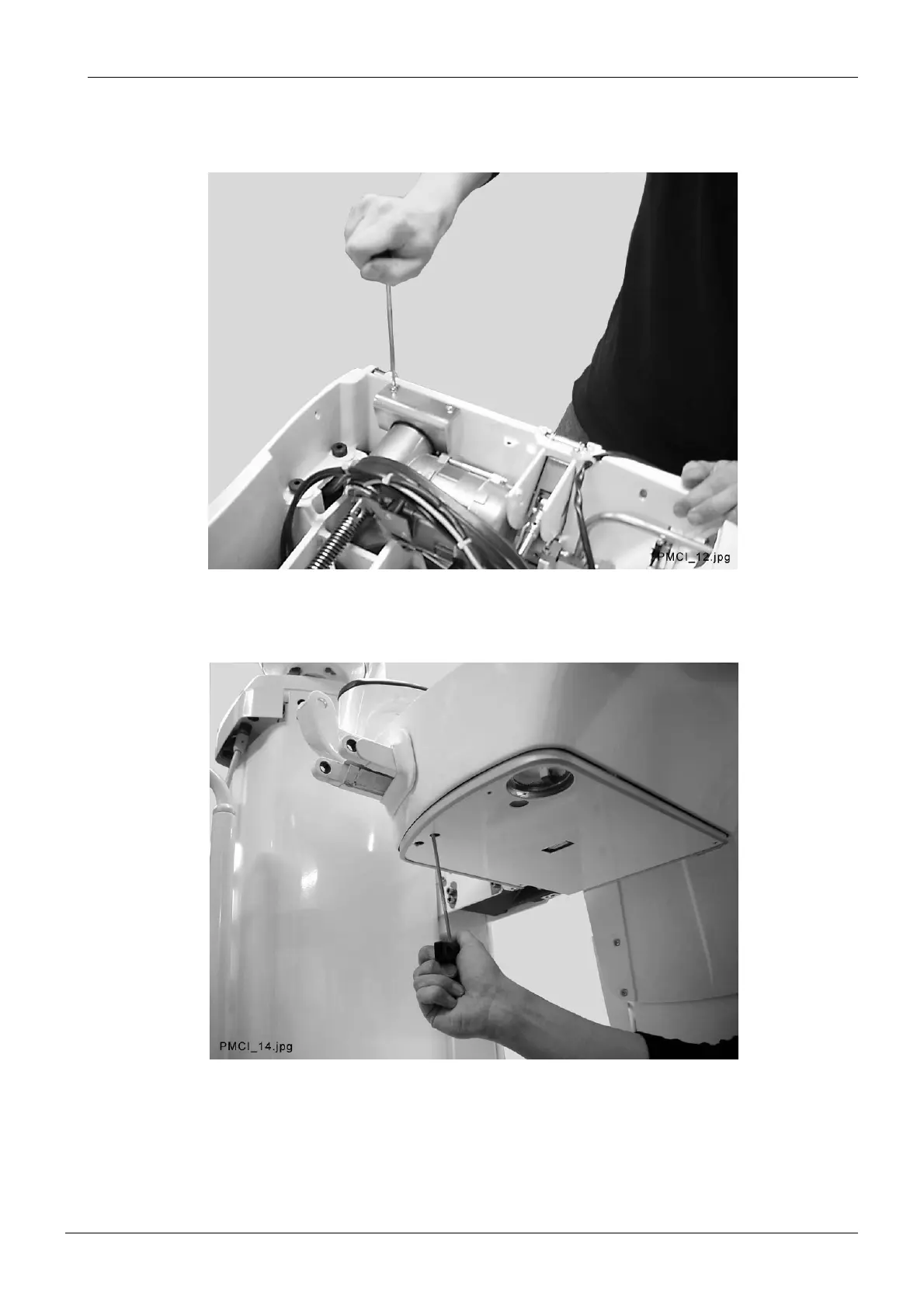

k) Unscrew the two M6x14 ISO 7380 screws at the backrest motor attachment plate using the

4mm Allen key.

l) Detach the backrest motor mechanical limit from the seat casting by unscrewing the M6x16

DIN 7984 attachment screw using 4mm Allen key.
