Chapter G - PARTS REPLACEMENT & REPAIR
G-32 Planmeca Compact i
MOTORS REPLACEMENT
Technical Manual

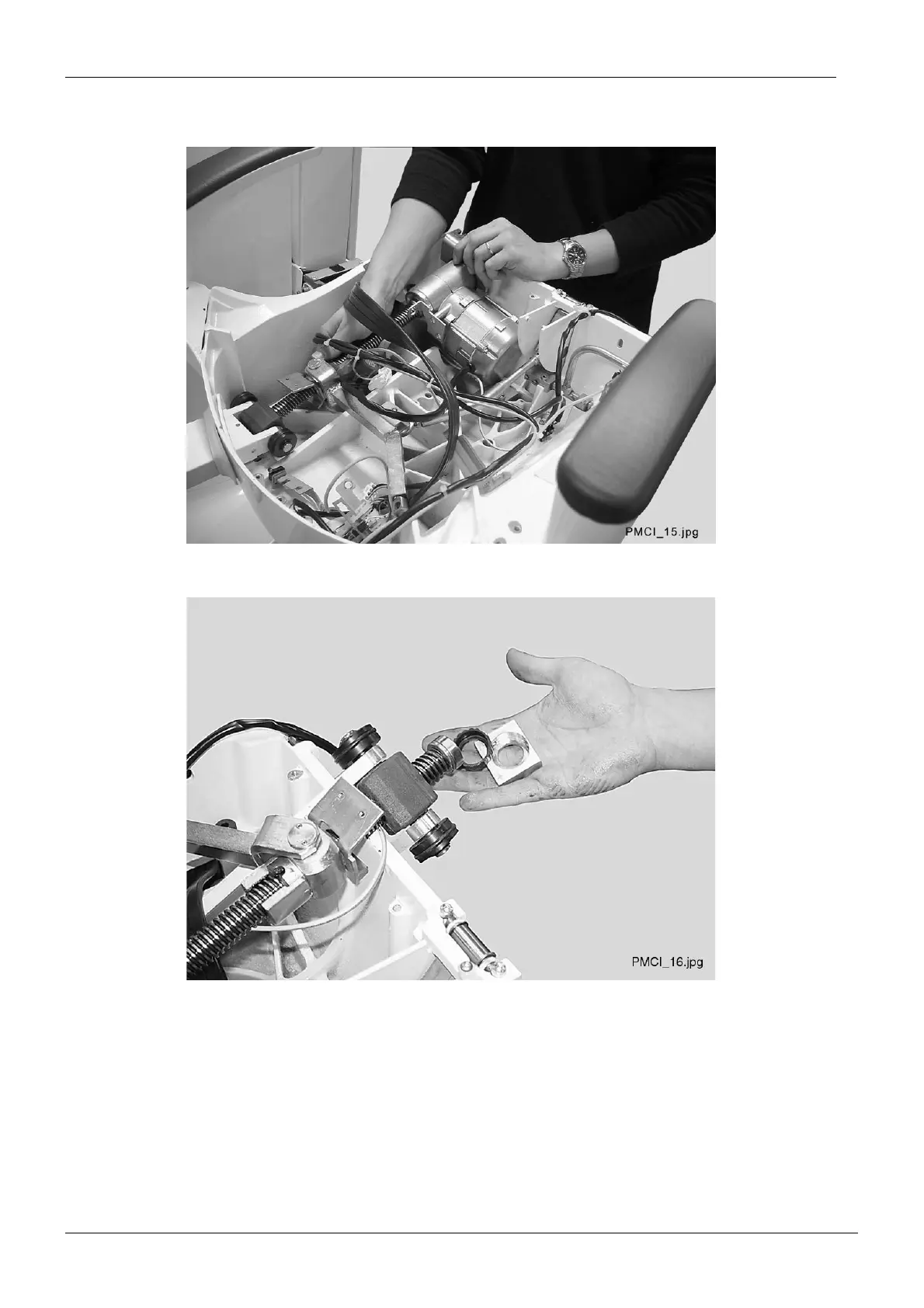

m) Lift the backrest motor from the seat casting.
n) Detach the mechanical limit and bearing from the threaded motor axle.
