Planmeca Compact I User Manual

Chapter H - FOOT CONTROL
H-12 Planmeca Compact i
ADJUSTMENTS
Technical Manual
d) Loosen the pedal height adjustment on the underside of the foot control approx. 1/4 turn.
e) Apply a drop of Loctite 243 sealer (or corresponding) to the upper adjustment screw. Do not
allow Locktite to get to the pedal axle. Tighten the upper adjustment screw completely (the
foot control pedal does not move freely).

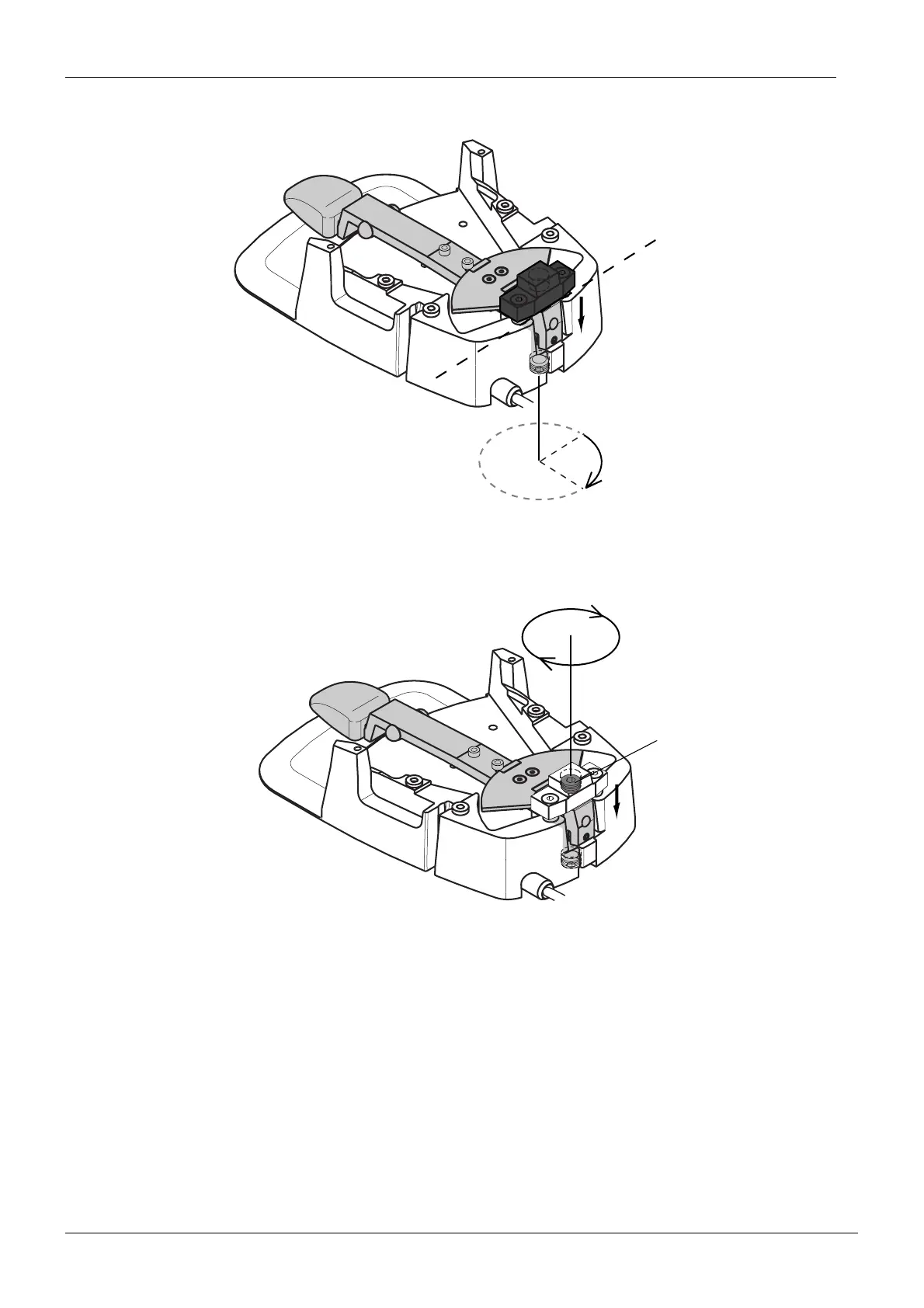

Fcntrl3.eps
1/4 round
approx. 1/4 turn
Fcntrl4.eps
Upper adjustment screw
