ENGINE / COOLING

9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual

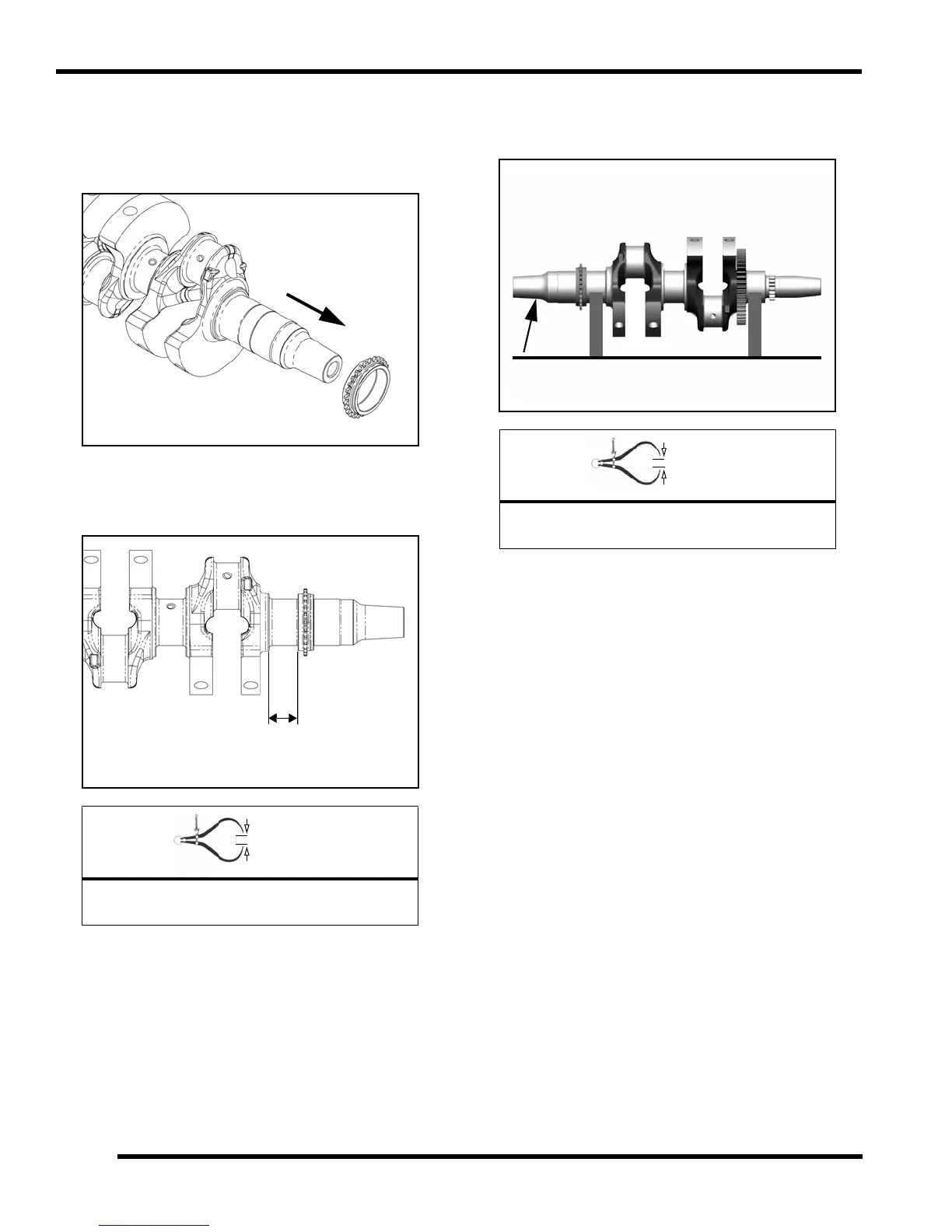

8. If the crankshaft gear (S) is damaged, the crankshaft

assembly must be replaced.

9. If the auxiliary sprocket (T) is damaged, remove the

sprocket with a 3-jaw puller.

10. Using an arbor press, install new sprocket in any

orientation to the depth shown in the following

illustration.

11. Support crankshaft on V-blocks or on-centers in a

crankshaft stand or lathe. Measure crankshaft runout

and replace if runout exceeds maximum listed below.

12. Visually inspect surface of crankshaft main and

connecting rod journals. Replace crankshaft if any

journal is scratched or pitted.

= In. / mm.

Auxiliary Sprocket Installed Depth:

1.0551 ± .0039 in. (26.8 ± 0.1 mm)

1.0551 ± .0039 in.

(26.8 ± 0.1 mm)

= In. / mm.

Crankshaft Maximum Runout:

.001 in. (0.025 mm)
