3.69
ENGINE / COOLING
3
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

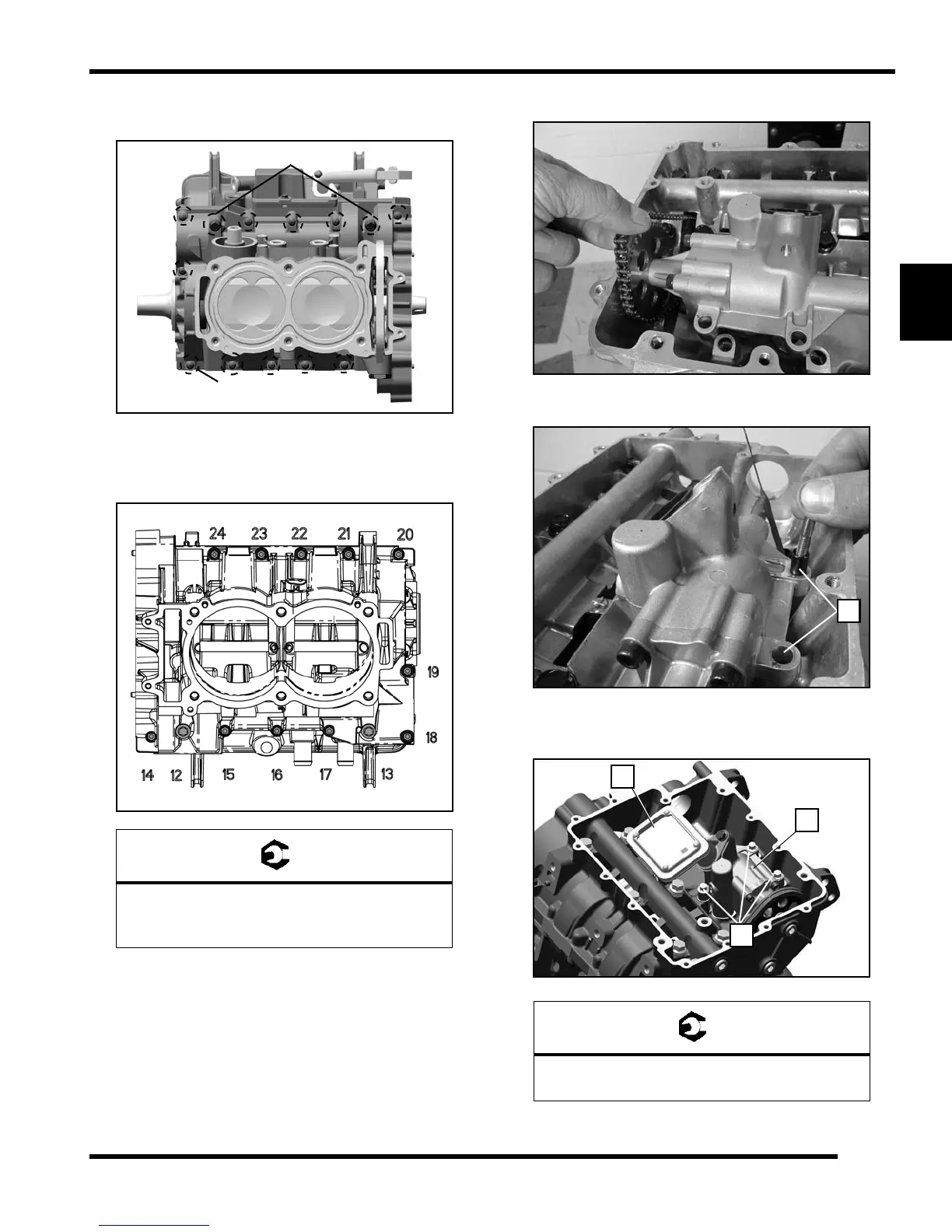

12. Install the (11) M6 and (2) M8 upper crankcase bolts.
Tighten all bolts lightly by hand.
13. Torque the upper crankcase bolts in sequence to
specification (start with #12). Repeat the sequence to
verify final torque.
14. Rotate the engine so the cylinder is facing down.
15. Install a new seal on the oil pump.
16. Lift the oil pump drive chain and install the oil pump.
17. Install dowel pins (C) into oil pump mounting holes.
18. Install the (3) bolts (D) that retain oil pump (E) to the
crankcase. Torque mounting bolts to specification.
= T
Upper Crankcase Bolts:
M8 Bolts: 26 ± 1 ft-lbs (35 ± 2 Nm)
M6 Bolts: 89 ± 9 in-lbs (10 ± 1 Nm)
M8
M6
= T
Oil Pump Mounting Bolts:
89 in-lbs (10 Nm)
C
F
E
D
