3.70
ENGINE / COOLING
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

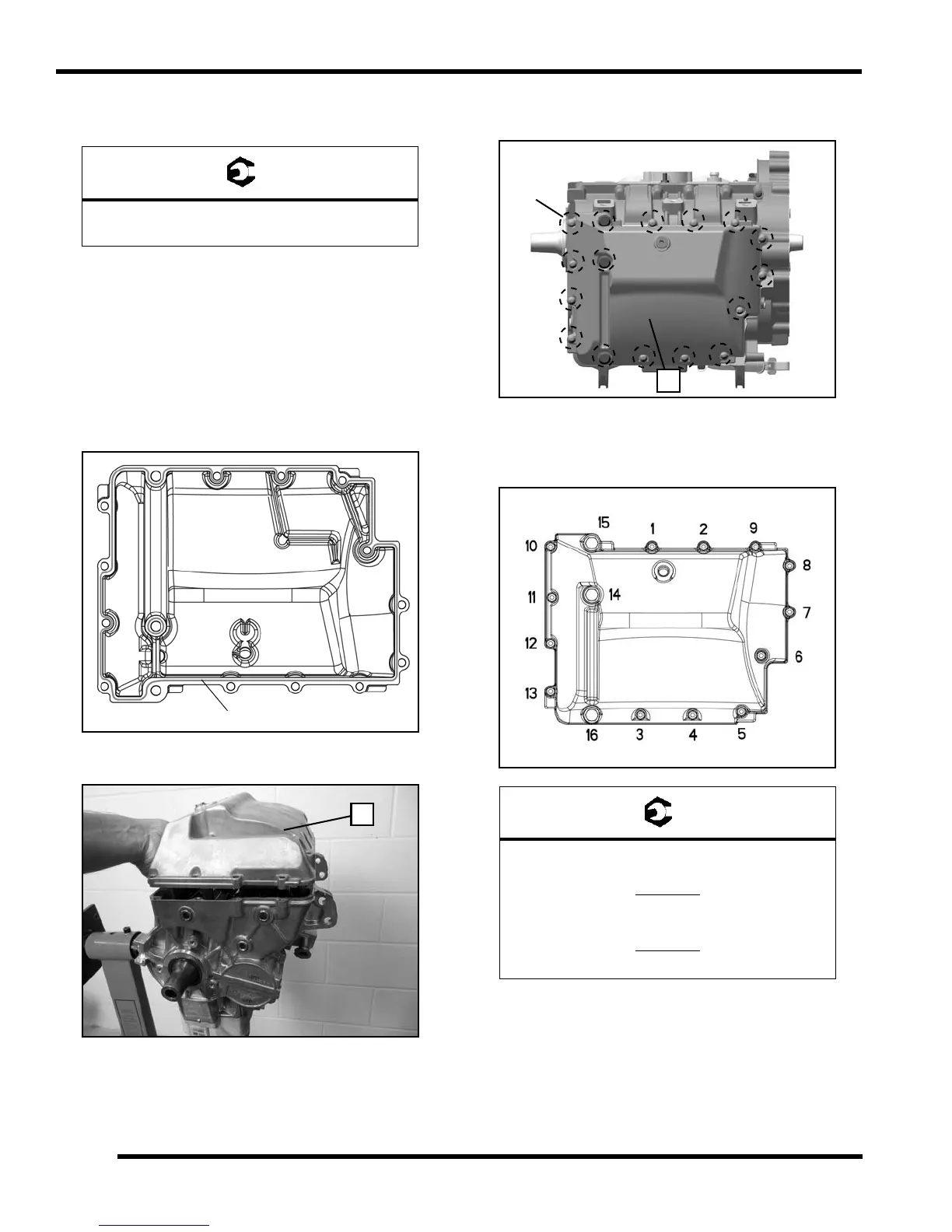

19. Reinstall oil pump pick-up (F) if previously removed.
Torque mounting screws to specification.
20. Clean the gasket sealing surfaces on oil sump cover
and crankcase to remove old gasket material and any
oil.
NOTE: Gasket surfaces must be DRY and oil free.
Use care upon assembly to keep oil away.
21. Apply a thin, continuous film of Crankcase Sealant
(PN 2871557) to sump cover mating surface as
shown. Do not allow sealant to dry before assembly.
22. Install the oil sump cover (G) onto the crankcase.
23. Install the (13) M6 and (3) M8 bolts that retain the oil
sump cover (H) to the crankcase.
24. Torque the oil sump cover bolts in sequence to
specification. Repeat the sequence to verify final
torque.
= T
Oil Pump Pick-Up Retaining Screws:
89 ± 9 in-lbs (10 ± 1 Nm)
Sealant Path
G
= T
Oil Sump Cover Bolts:
M6 Bolts:
106 in-lbs (12 Nm)
M8 Bolts:
26 ft-lbs (35 Nm)
M6
H
