7.21
FINAL DRIVE
7
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

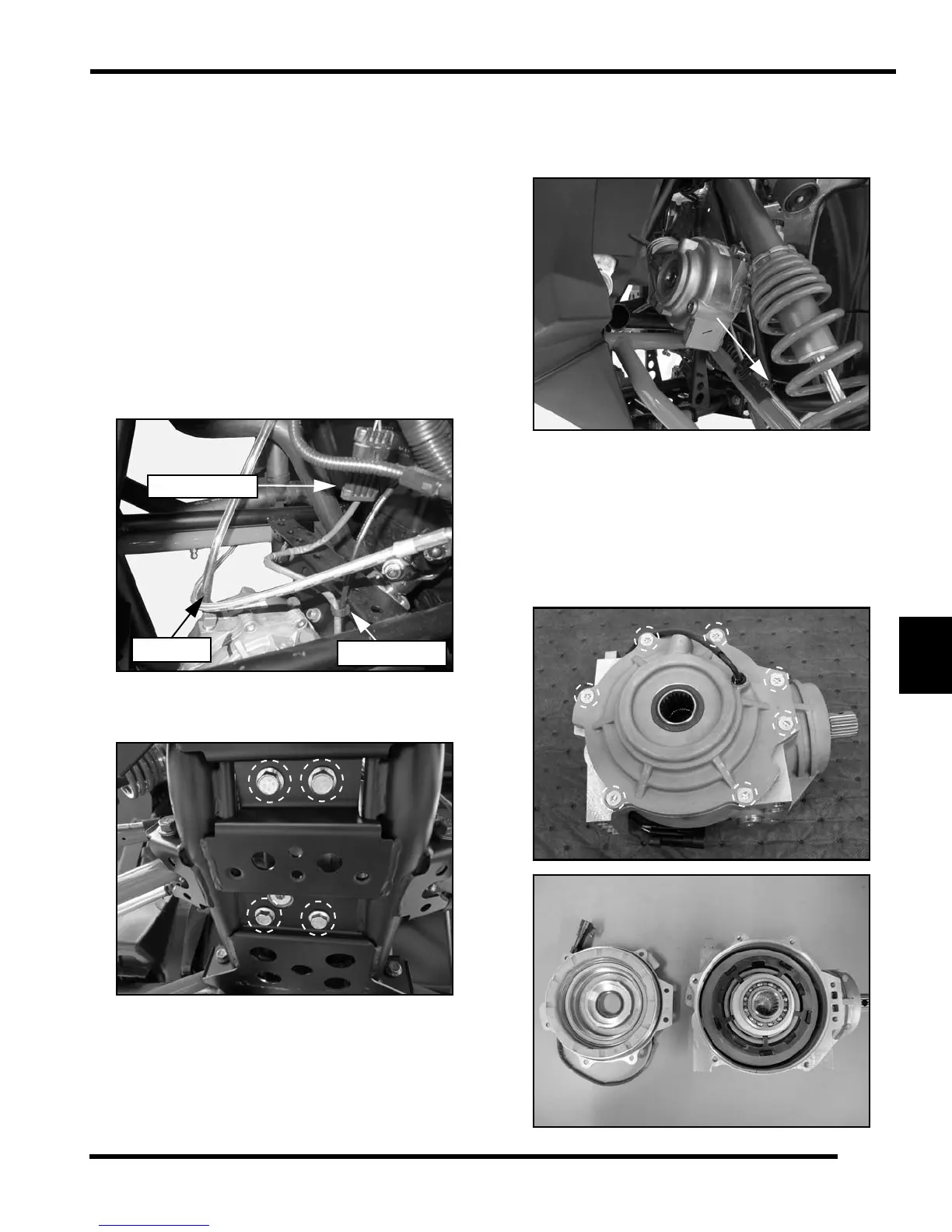

Front Gearcase Removal
1. Raise and support vehicle
2. Place gear selector in neutral.
3. Refer to “FRONT DRIVE SHAFT - Drive Shaft
Removal” and remove both front drive shafts from the
front gearcase.
4. Remove the front section of the propshaft (see
“PROPSHAFT SERVICE”).
5. Disconnect the wire harness for the front gearcase
and remove the harness from the retaining dart.
6. Remove the vent line from the front gearcase and plug
vent line fitting.
7. Remove the (4) bolts securing the front gearcase to
the frame.
8. Rotate front of gearcase up so the input shaft is facing
down. Lift and remove the gearcase from the front LH
wheel well area and slide it out of the vehicle above
the upper A-arm.
Front Gearcase Disassembly / Inspection
1. Drain and properly dispose of gearcase fluid.
Remove any metal particles from the drain plug
magnet.
2. Remove the (7) cover screws and remove the cover
plate assembly.
AWD Harness
Vent Line
Retaining Dart
To Next Page
