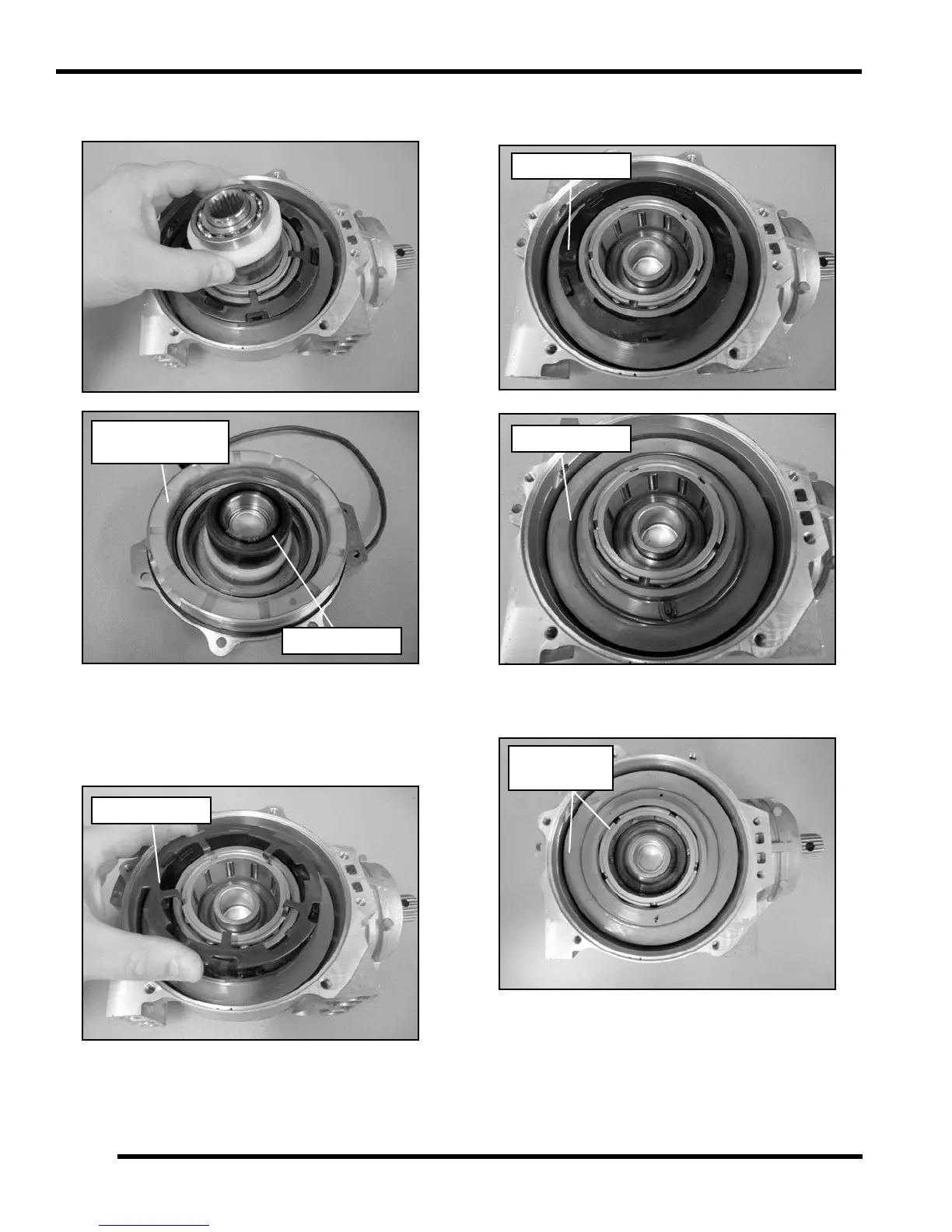

3. Remove the LH output hub assembly from the clutch
housing or outer cover plate assembly.
NOTE: Nylon spacer is non-serviceable and should
not be removed.
4. Remove and inspect the armature plate. Refer to
“AWD Diagnosis” for detailed inspection process.
5. Remove the torsion spring retainer and torsion spring
from the top of the ring gear.
6. Remove the clutch housing / ring gear and roll cage
assembly from the gearcase housing.
LH Output Hub
Non-serviceable
DO NOT Remove
