Chapter 1-First Time Installation and Configuration
Polycom, Inc. 1-11

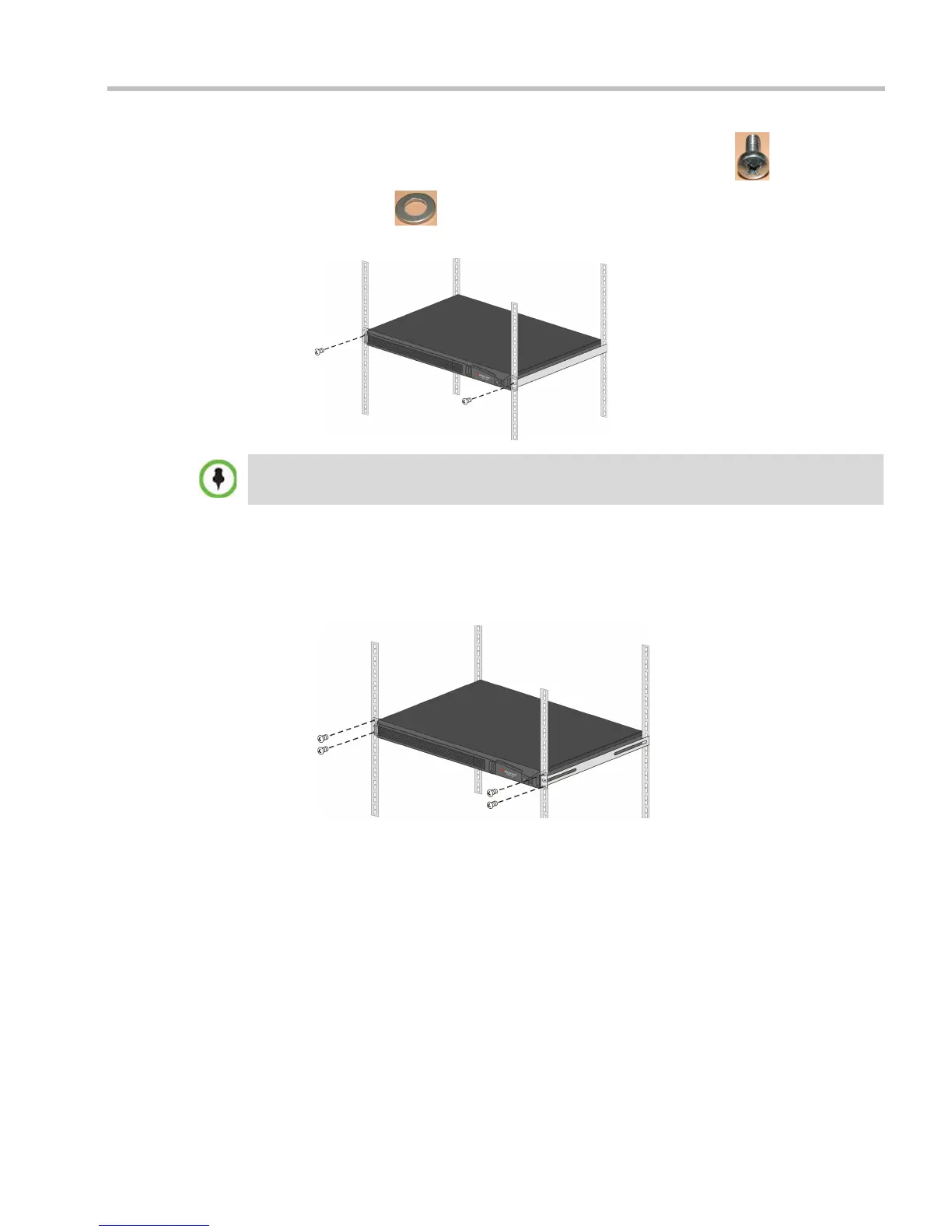

— Fasten the RMX to the rack spacers using the flat head screw (item 8) with
flat washer
(item 9) through the two holes in the RMX’s front mounting
brackets.
• Using a shelf
— Install the shelf, supplied by the rack manufacturer, in the rack.
— Mount the RMX unit on the shelf.
— Fasten the RMX unit to the rack with screws through the four holes in the RMX’s
front mounting brackets.
Refer to Figure 1-2, "Detail of Front Rack Spacer Assembly (left rail runner is shown here) for all
RMX types” on page 1-8 for installation instructions.
