Polycom RealPresence Collaboration Server (RMX)1500/2000/4000 Deployment Guide for Maximum Security Environments
1-6 Polycom, Inc.
Telescopic Rail Runner Assembly
1 Determine the location of the RMX on the rack:
— Allow for a 1U gap above and below the system for ventilation.
— Use the Rack Spacer (item no. 3) to predetermine its position on the rack post,
making sure that square studs of the spacer fit into the rack post’s square/rounded
mounting holes. Mark the spacer’s location on the rack post. Repeat this process for
the 3 remaining vertical posts ensuring that the system can be horizontally seated.

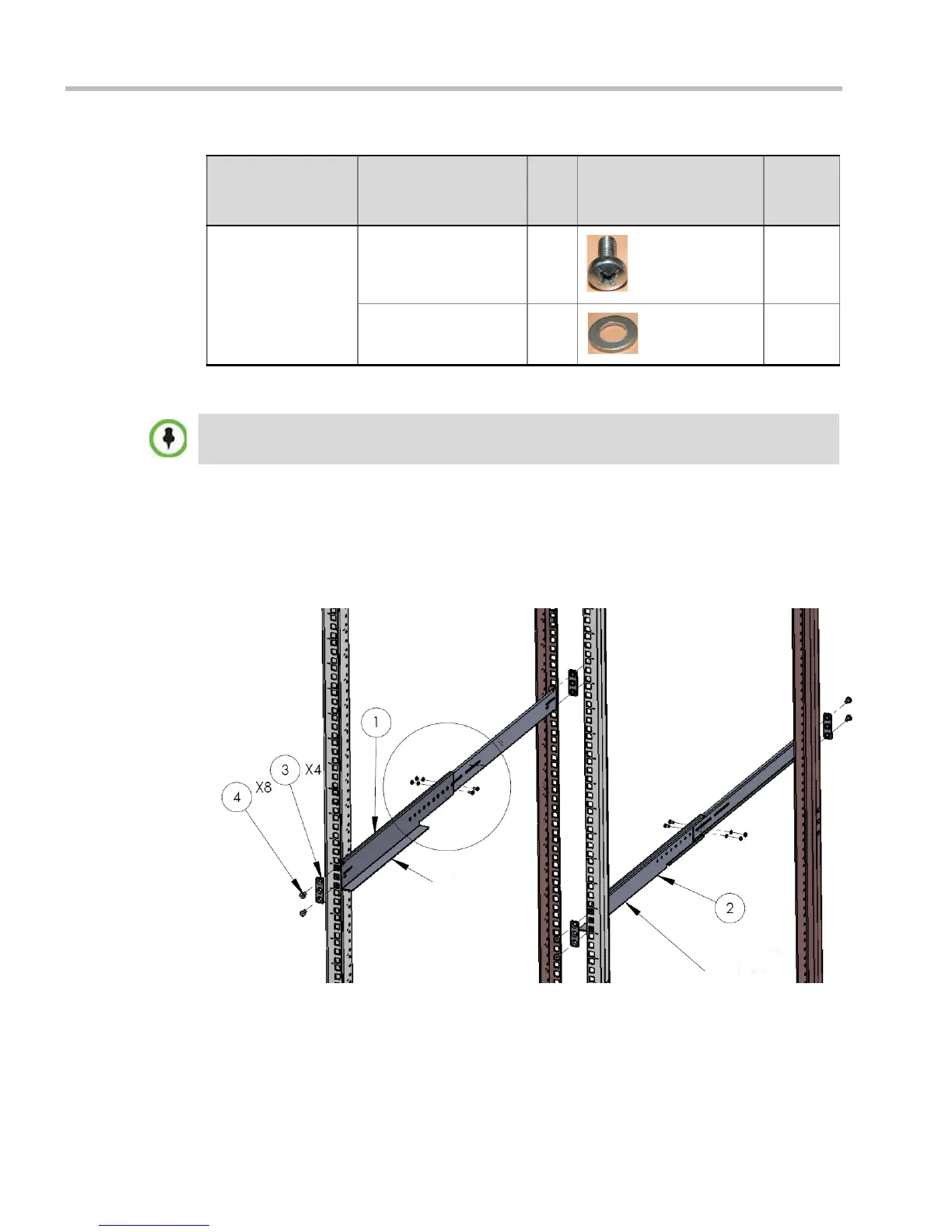

Figure 1-1 Front view of RMX Rail Runner Assembly
RMX chassis
assembly kit
Pan head screw -
M5*12mm
82
Flat washer M5 9 2
Table 1-1 Rail Runners Kit Contents
Part/Kit no. Item
Item
no.
Item Sample
Item
Quantity
Rack Rail Runners require a minimum of 48cm and a maximum of 80cm within the rack for
installation
