Direction of Media Motion
Direction of Media Motion
Direction of Media Motion
I. Tag Specification
(Mark Sensing)
II. Tag Specification
(Gap Sensing)
III. Label Specification
(Gap Sensing)

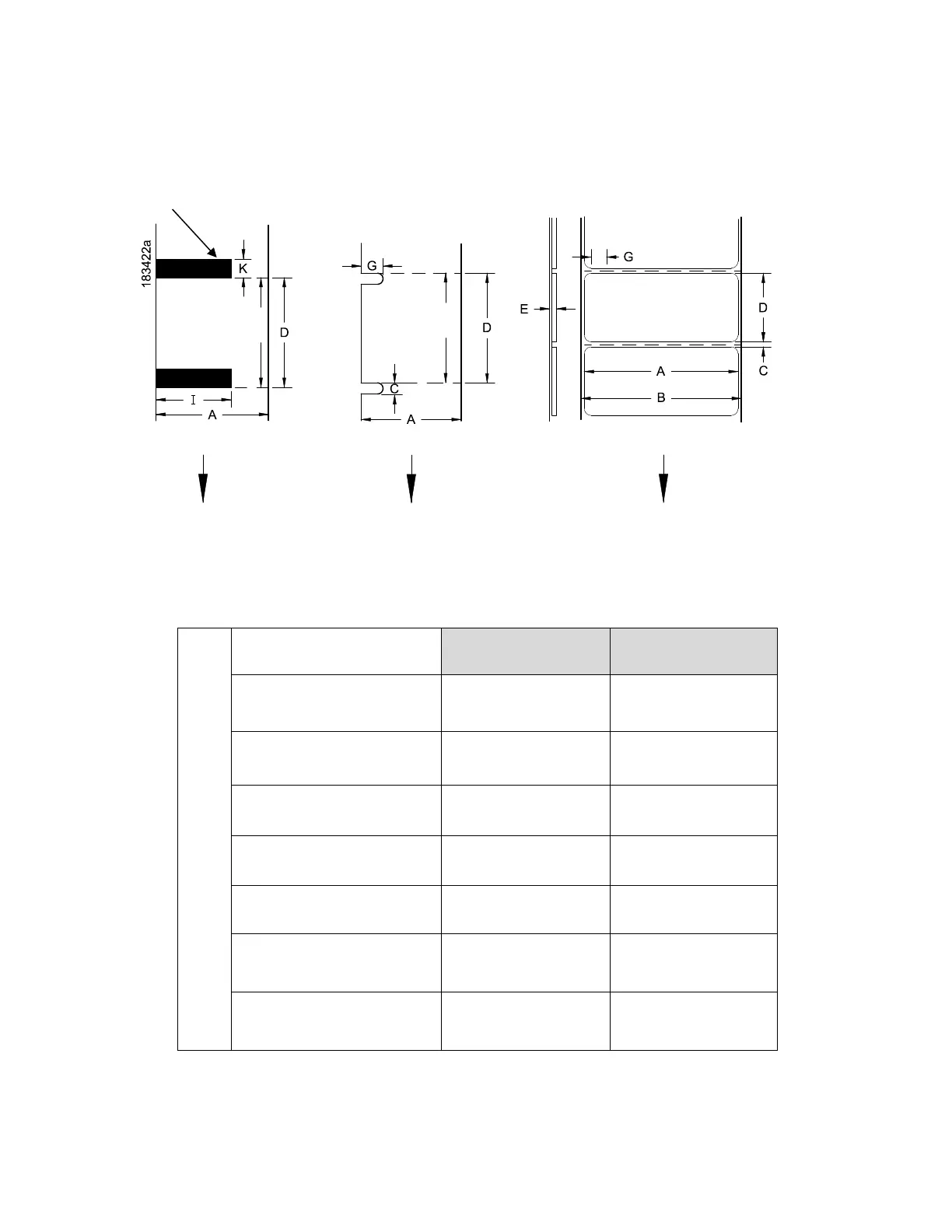

Figure 21 Media Dimensions
Table 16. Media Specifications
T6X04
T6X06
A
Label Width Range
1.00 -4.5 in.
19.1-114.3 mm
2.0-6.8 in.
50.8-172.7 mm
B
Backing Width Range
0.75-4.5 in.
19.1-114.3 mm
2.0-6.8 in.
50.8-172.7 mm
C
Min. Gap/Hole/Notch Height
0.10 in.
2.54 mm
0.10 in.
2.54 mm
K
Min. Refl. Mark Height
0.10 in.
2.54 mm
0.10 in.
2.54 mm
I
Min Refl. Mark Width
0.5 in.
12.7 mm
0.5 in.
12.7 mm
E
Media Thickness Range
.0025-.010 in.
.0635-.254 mm
.0025-.010 in.
.0635-.254 mm
G
Width of Inter-label gap/hole
0.25-0.50 in.
.0635-12.7 mm
0.25-0.50 in
6.35-12.7 mm
Black Mark (on underside)
