Printronix T6000 - Installing the 4 Inch Media Cutter

274
Installing the 4 Inch Media Cutter
WARNING The cutter blades are sharp. Keep your fingers away from the cutter blades.

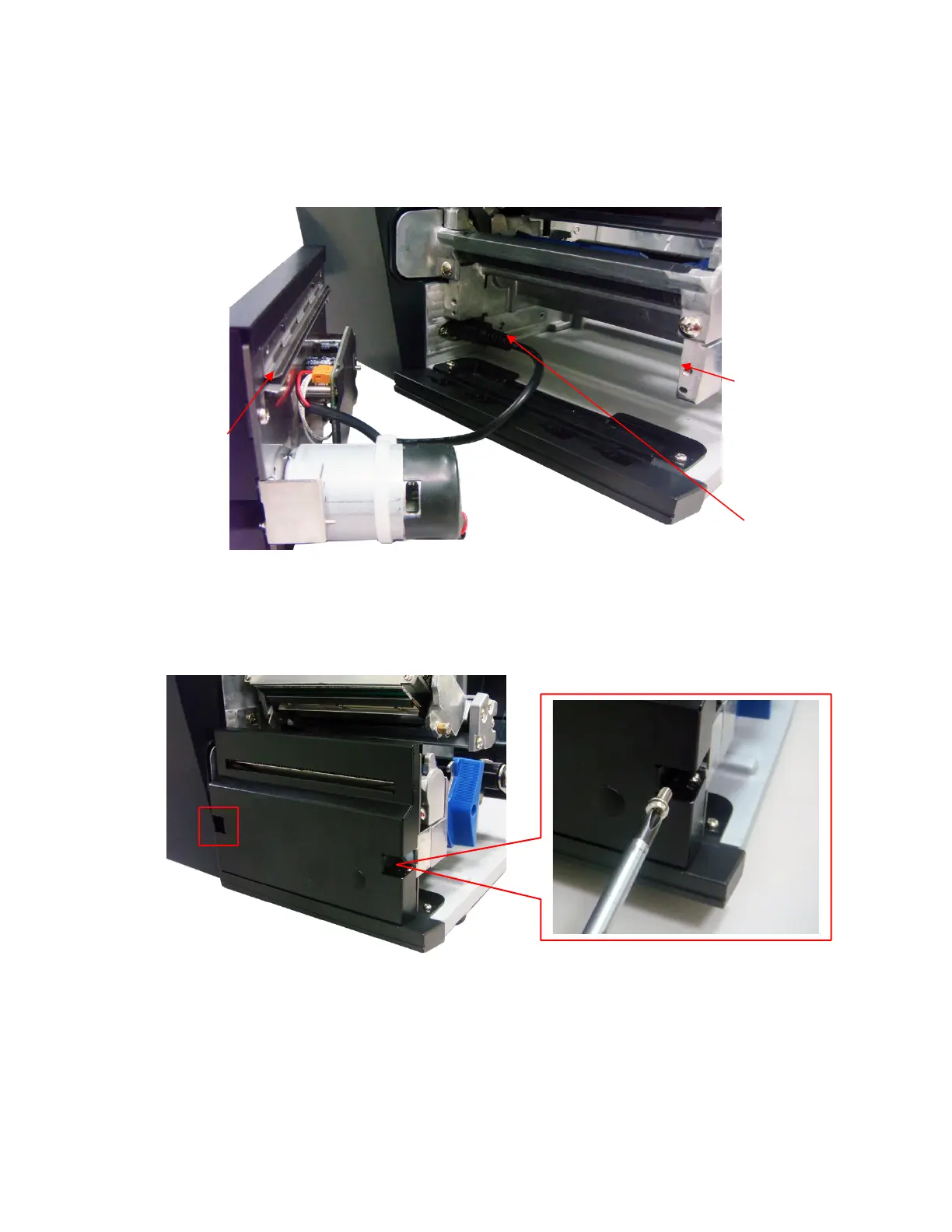

1. Plug the cutter assembly mini DIN cable connector into the printer receptacle (the flat section of the plug
must be at the top).
2. Place the cutter assembly in position.
3. Use the two screws provided in the cutter kit to install the cutter assembly on the lower support
assembly.
Lower Support
Assembly
Receptacle
Cutter Cable
connector
Cutter Assembly
