Quantum Scalar i80 User Manual

Chapter 6: Performing Library Operations
Releasing Magazines
Quantum Scalar i40 and Scalar i80 User’s Guide 149
Releasing Magazines
via the User Interface
Use this method when the library is turned ON.
Operator Panel
1 Select Actions > Magazine.
2 Select
a magazine and press Release.
Note: Only closed magazines are listed.
3 Wait until the robot unlocks the magazine and the screen displays
the Magazine is now unlocked message (see Figure
28).

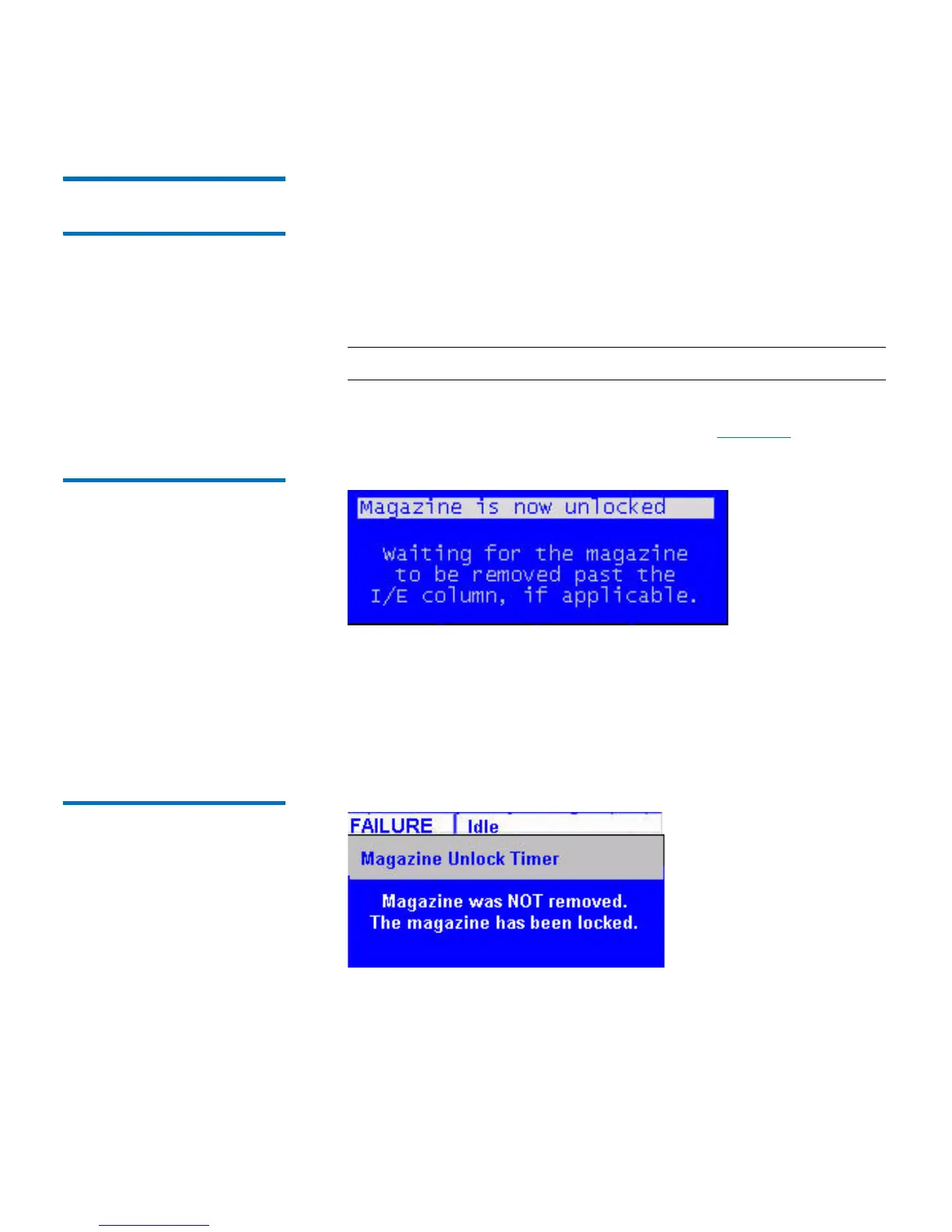

Figure 28 Magazine Unlocked
Message
4 Pull outward on the magazine bezel handle to slide the magazine
out as far as you wish, or remove it completely. Once you slide the
magazine back into the slot all the way, it locks again automatically
If
you do not open the magazine within 30 seconds, it locks and you
receive the following failure message.
Figure 29 Magazine Locked
Timer Message

Quantum Scalar i80 Specifications

General

Power supply type	AC
Power requirements	100 – 240V, 50/60Hz
Power consumption (typical)	200 W
Dimensions (WxDxH)	445 x 793 x 264 mm
Media types supported	2x LTO-4
Maximum supported storage capacity	128 TB
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Media type	Tape Cartridge
Form factor	6U
Product type	Storage auto loader & library
Certification	IEC 60950, Class A / FCC part 15, ICES-003, CISPR 22, EN55022 Class A, VCCI, CNS 13438, KN22, AS/NZS CISPR 22, EN61000-3-2, EN61000-3-3 EN55024, KN24 CE, VCCI, GS, FCC, ICES, NRTL, GOST, BSMI, KCC
Product color	Black
Standard interfaces	Fiber Channel

Weight and Dimensions

Weight	23800 g
