Chapter 9: Installing, Removing, and Replacing Components
Installing the Rack Mount Kit (Rail Kit)
Quantum Scalar i40 and Scalar i80 User’s Guide 233

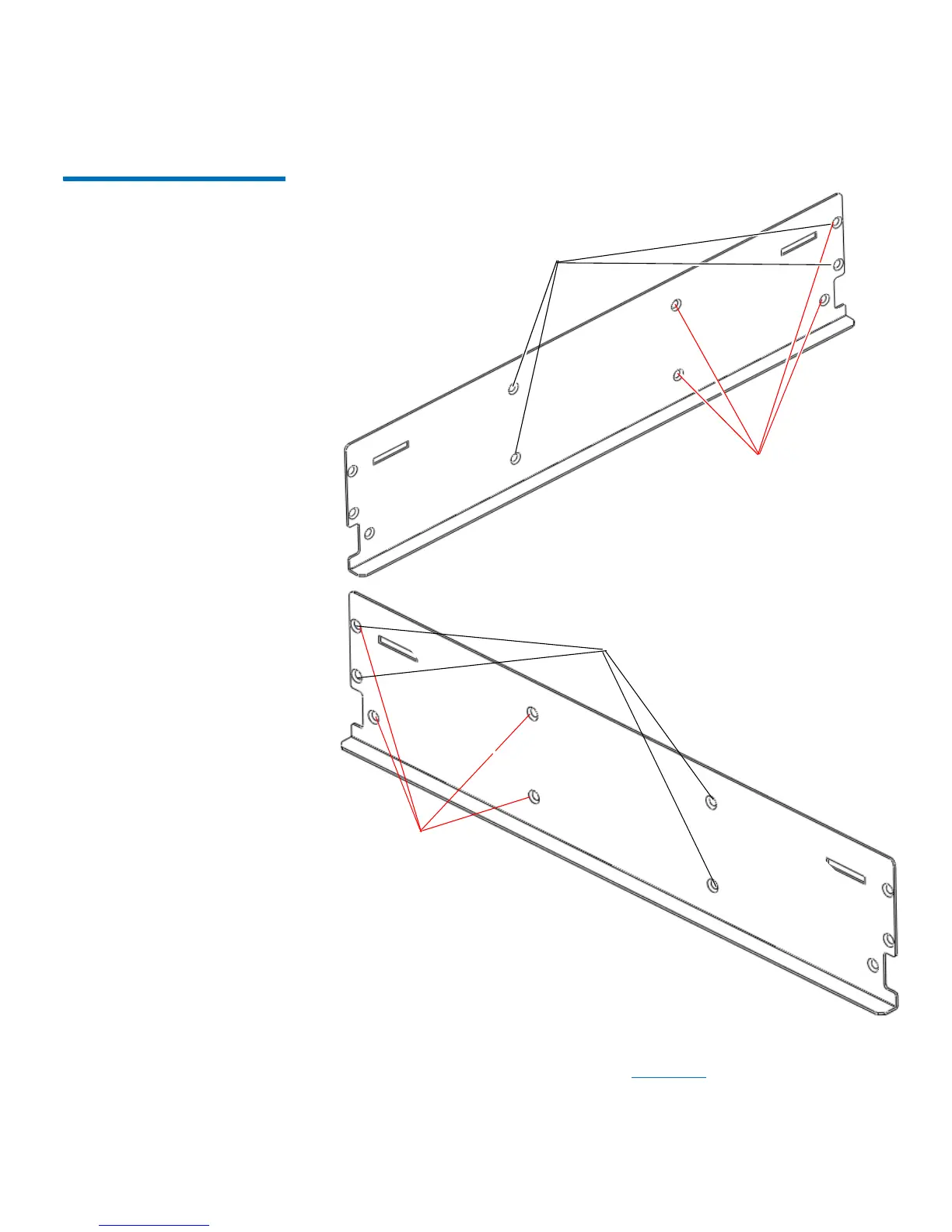

Figure 43 Rack Mount Shelf
Depth Requirements
Use these holes for rack
depths of 27 in (68.5
cm) to 36 in (91.4 cm)
Use these holes for rack
depths of 24 in (60.9
cm) to 28 in (71.1 cm)
Use these holes for rack
depths of 27 in (68.5
cm) to 36 in (91.4 cm)
Use these holes for rack
depths of 24 in (60.9
cm) to 28 in (71.1 cm)
Front of rack
Rear of rack
Rear of rack
b Loosely attach the rack mount shelves to the extenders with 4
M5 x 10 screws and T-nuts (see Figure
44).
