Chapter 3: Understanding the User Interface
Operator Panel
22 Quantum Scalar i40 and Scalar i80 User’s Guide
The operator panel home screen refreshes every 5 seconds to provide
up-to-date information about library performance.
Operator Panel Layout
and Functions
You can choose your desired operator panel home screen that displays
on the local user interface—the default home screen or the alternate
home screen that allows easy I/E unlock access.
Figure 8 and Figure 9
depict these screen options;
Tab le 2 describes the operator panel
functions.

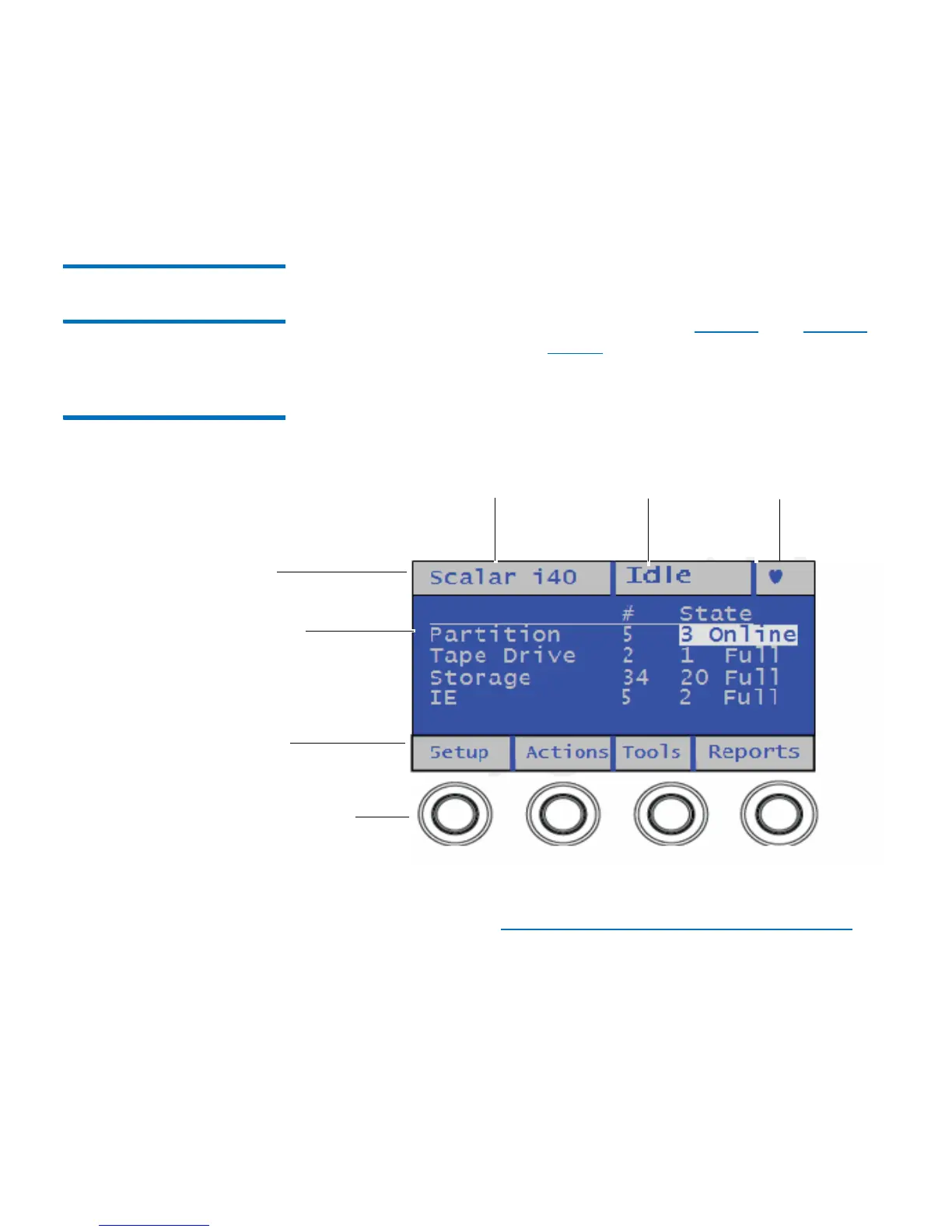

Figure 8 Operator Panel User
Interface - Home Screen
Title bar
Menu bar
Navigation/selection
buttons
Name
Status Health status
Active display
You can choose to change the view of the home screen for easy I/E
unlock access. Refer to
Changing Operator Panel Home Screen View on
page 109.

Quantum Scalar i80 Specifications

General

Power supply type	AC
Power requirements	100 – 240V, 50/60Hz
Power consumption (typical)	200 W
Dimensions (WxDxH)	445 x 793 x 264 mm
Media types supported	2x LTO-4
Maximum supported storage capacity	128 TB
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Media type	Tape Cartridge
Form factor	6U
Product type	Storage auto loader & library
Certification	IEC 60950, Class A / FCC part 15, ICES-003, CISPR 22, EN55022 Class A, VCCI, CNS 13438, KN22, AS/NZS CISPR 22, EN61000-3-2, EN61000-3-3 EN55024, KN24 CE, VCCI, GS, FCC, ICES, NRTL, GOST, BSMI, KCC
Product color	Black
Standard interfaces	Fiber Channel

Weight and Dimensions

Weight	23800 g
