Chapter 9: Installing, Removing, and Replacing Components
Removing and Replacing a Magazine
Quantum Scalar i40 and Scalar i80 User’s Guide 275

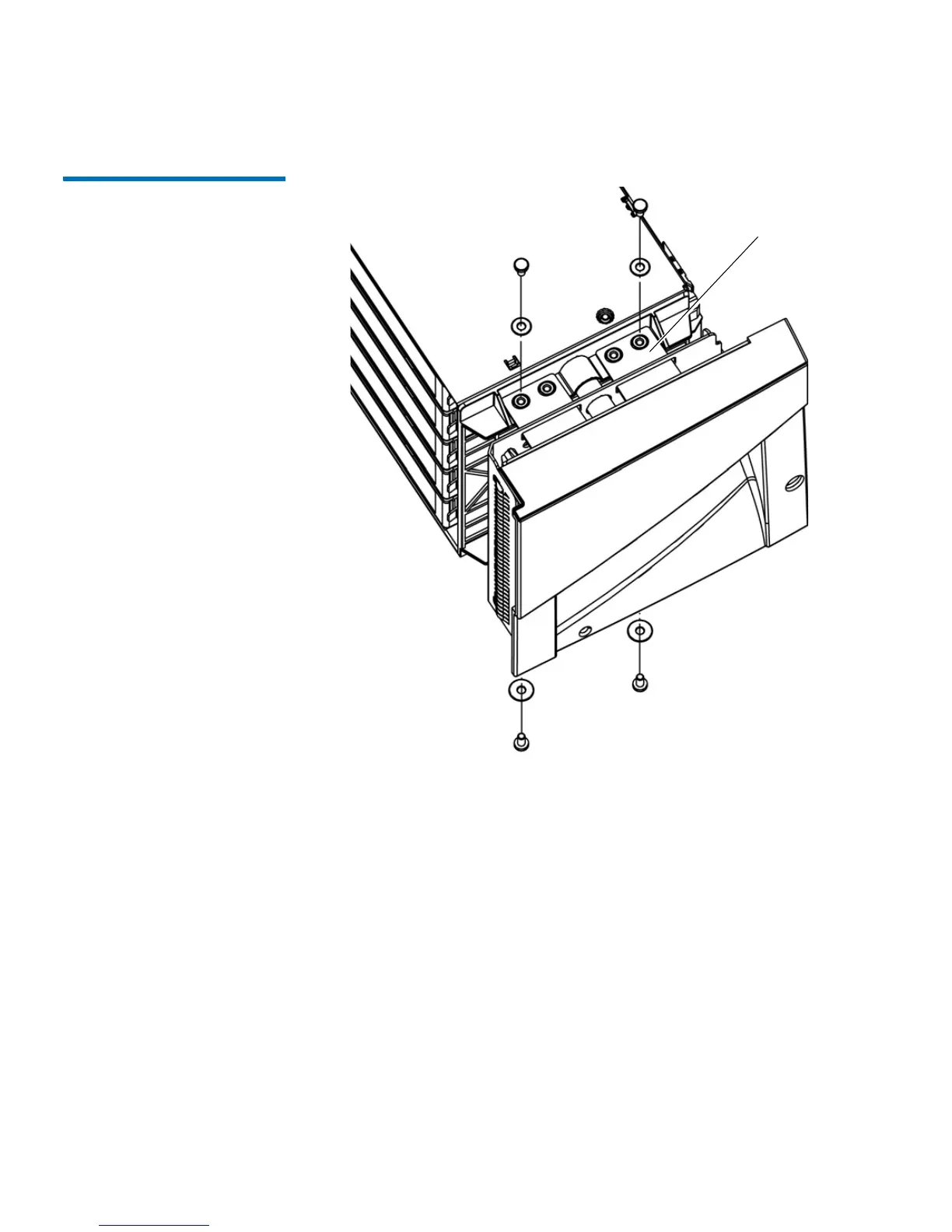

Figure 67 Removing/Installing
the Magazine Bezel
Bezel
Tab
7 Remove the tape cartridges from the removed magazine and
carefully install them in the exact same slots in the replacement
magazine. Use the map you created if necessary.
8 Slide
the magazine into the magazine slot all the way until it stops.
The library performs an inventory
on the replaced magazine.
9 W
ait for the library to finish its inventory.
10 Run the
magazine diagnostics test on the replaced magazine to be
sure it is functioning correctly.
a Place a
scratch tape in the top I/E station slot.
b If
manual cartridge assignment is enabled, assign the scratch
tape to the System partition.

Quantum Scalar i80 Specifications

General

Power supply type	AC
Power requirements	100 – 240V, 50/60Hz
Power consumption (typical)	200 W
Dimensions (WxDxH)	445 x 793 x 264 mm
Media types supported	2x LTO-4
Maximum supported storage capacity	128 TB
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Media type	Tape Cartridge
Form factor	6U
Product type	Storage auto loader & library
Certification	IEC 60950, Class A / FCC part 15, ICES-003, CISPR 22, EN55022 Class A, VCCI, CNS 13438, KN22, AS/NZS CISPR 22, EN61000-3-2, EN61000-3-3 EN55024, KN24 CE, VCCI, GS, FCC, ICES, NRTL, GOST, BSMI, KCC
Product color	Black
Standard interfaces	Fiber Channel

Weight and Dimensions

Weight	23800 g
