Chapter 9: Installing, Removing, and Replacing Components
Removing and Installing a Power Supply
276 Quantum Scalar i40 and Scalar i80 User’s Guide
c From the operator panel, select Tools > Diagnostics.
d Continue through the next few screens to run the magazine test
on the replaced magazine.
If a problem is found during testing,
you receive a diagnostic ticket.
See
Running the IVT Diagnostic Subtests Individually – Robotics,
Tape Drive, and Magazine Tests on page 327 more information.
Removing and Installing a Power Supply
The Scalar
®
i40 contains one power supply. The Scalar i80 can have up
to two power supplies for redundancy purposes.
An unused power supply slot must be covered by a filler plate.
This document covers:
•
Replacing a Power Supply in a Single-Power-Supply System (Scalar
i40 and Scalar i80)
• Adding or Replacing a Redundant Power Supply on the Scalar i80

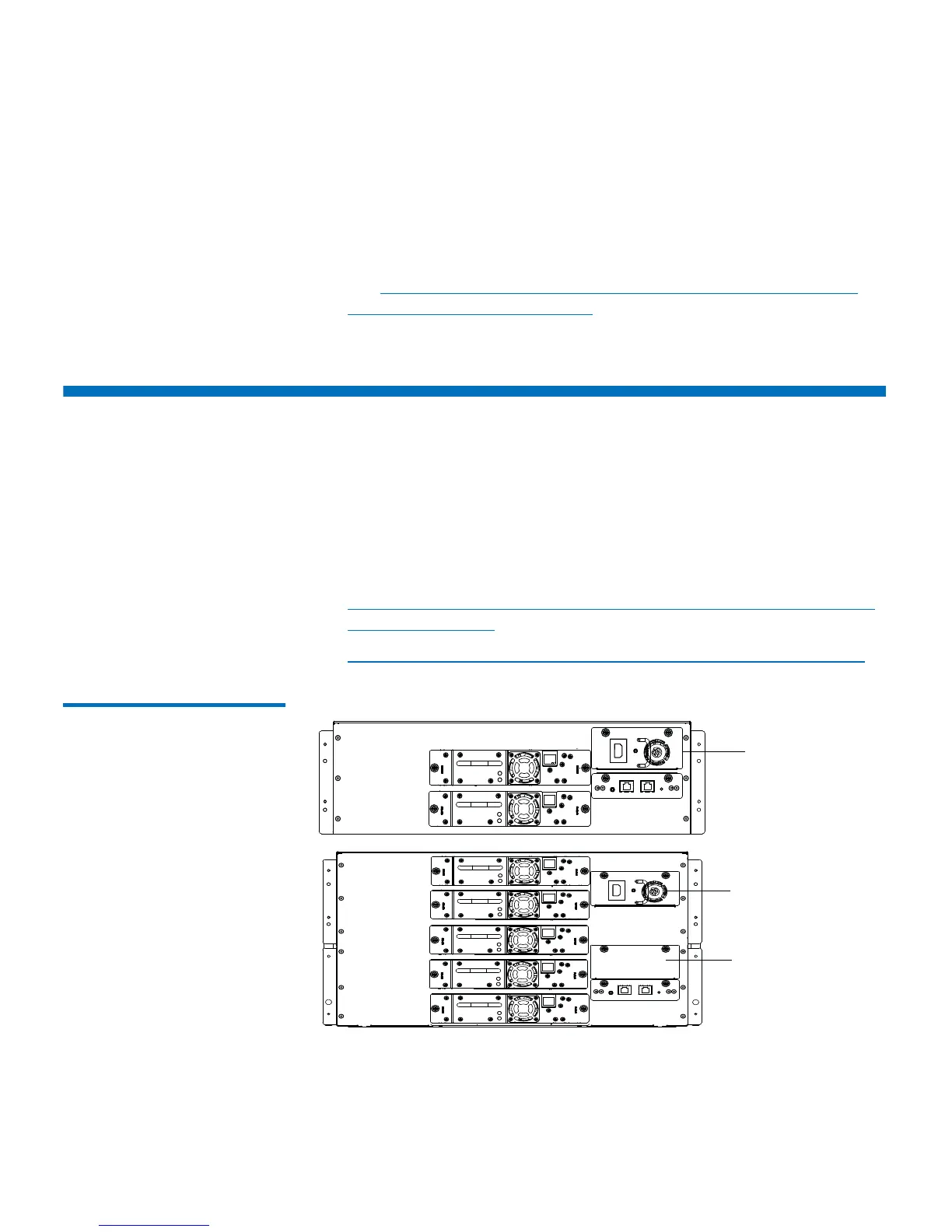

Figure 68 Single Power Supply
System
Scalar i40, single
power supply
Scalar i80, single
power supply
installed in top slot
Filler plate covers
empty power supply
slot

Quantum Scalar i80 Specifications

General

Power supply type	AC
Power requirements	100 – 240V, 50/60Hz
Power consumption (typical)	200 W
Dimensions (WxDxH)	445 x 793 x 264 mm
Media types supported	2x LTO-4
Maximum supported storage capacity	128 TB
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Media type	Tape Cartridge
Form factor	6U
Product type	Storage auto loader & library
Certification	IEC 60950, Class A / FCC part 15, ICES-003, CISPR 22, EN55022 Class A, VCCI, CNS 13438, KN22, AS/NZS CISPR 22, EN61000-3-2, EN61000-3-3 EN55024, KN24 CE, VCCI, GS, FCC, ICES, NRTL, GOST, BSMI, KCC
Product color	Black
Standard interfaces	Fiber Channel

Weight and Dimensions

Weight	23800 g
