Quantum Scalar i80 User Manual

Chapter 3: Understanding the User Interface

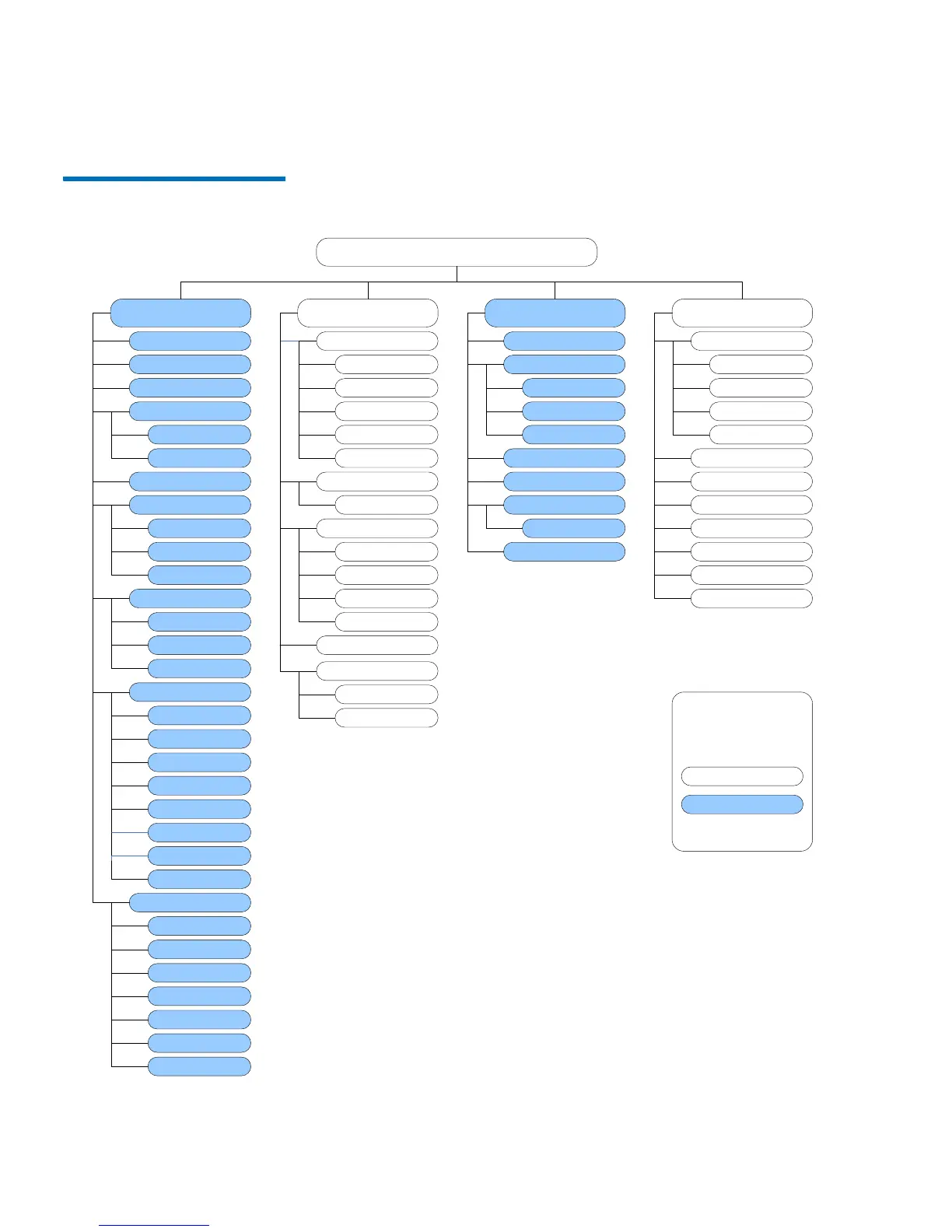

Menu Trees
34 Quantum Scalar i40 and Scalar i80 User’s Guide
Figure 12 Operator Panel
Menus
Setup
Network Configuration
Date & Time
License Installation
Dedicated Slots
Tape Drives (FC)
Configure Partitions
Account Settings
Security Services
Actions
Import Cleaning Tape
Unlock I/E Station
Magazine
Release
Tape Drive
Unload
Change Mode
Manual Cleaning
Reset
Shutdown
Tools
IVT
Diagnostics
Random Move Test
Service Network
Reset Factory Defaults
Reports
Diagnostic Tickets
About Library
Partitions
Network Settings
Date/Time
Licenses
Copyright Statement
Admin Privileges Only
All Users
ACCESS KEY
Operator Panel
Main Menu Bar
I/E
Import Tape
Export Tape
Export Cleaning Tape
Robotics Test
Tape Drive Test
Magazine Test
Library
Tape Drives
Media
Password Settings
Session Timeout
Modify Password*
* Only Available if LUI
Passwords are enabled
NOTE: If passwords are not
enabled on the operator
panel, all users have access
to all menus and functions.
Cleaning
I/E
Network IF
SSH Services
ICMP
Web client
Service User
SNMP V1/V2
SSL
Unload Assist
System Settings
Logical SN Addr
Man Cart Assign
SNMP
SMI-S
Shutdown Library
Restart Library
View Current
Partitions
Auto-Create Partitions
Delete Partitions
Power Save
Modify Subnet
Close ALL
Tape Drives
Robotics View
Change Partition Mode
Alternate Home
Auto DT Close

Quantum Scalar i80 Specifications

General

Power supply type	AC
Power requirements	100 – 240V, 50/60Hz
Power consumption (typical)	200 W
Dimensions (WxDxH)	445 x 793 x 264 mm
Media types supported	2x LTO-4
Maximum supported storage capacity	128 TB
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Media type	Tape Cartridge
Form factor	6U
Product type	Storage auto loader & library
Certification	IEC 60950, Class A / FCC part 15, ICES-003, CISPR 22, EN55022 Class A, VCCI, CNS 13438, KN22, AS/NZS CISPR 22, EN61000-3-2, EN61000-3-3 EN55024, KN24 CE, VCCI, GS, FCC, ICES, NRTL, GOST, BSMI, KCC
Product color	Black
Standard interfaces	Fiber Channel

Weight and Dimensions

Weight	23800 g
