ABL800 FLEX Operator's Manual 8. Disk functions
Saving setup
Purpose
You can copy your analyzer's current setup configuration onto a CD-RW,
removable drive, hard disk or network. It can be reloaded in the event the current
setup is lost or damaged or the same setup configuration should be loaded on other
analyzers without performing all the Setup programs.
Storing the
setup
To store the current analyzer setup, do the following:
Step Action
1.
Press Edit Location to select destination.
2.
Select required location by touching and highlighting it on the screen.
If a CD-RW is used, place a CD-RW in the CD-drive.
If a removable drive is used, connect it to the USB port.
Press Expand/Collapse to select the destination directory.

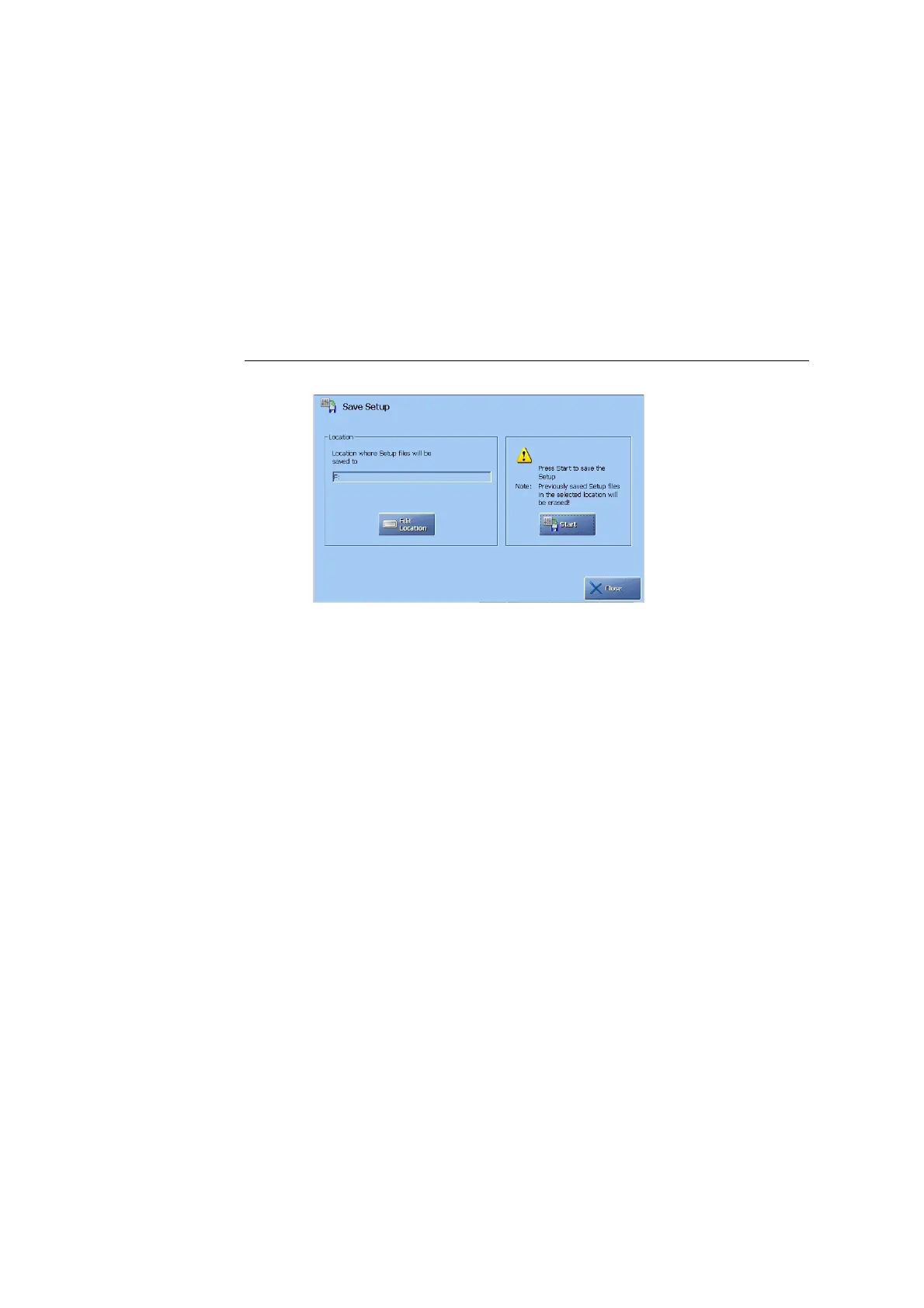

Press Back to return to the Save Setup screen.
3.
On the Save Setup screen press Start. When saving is complete, the
Ready screen is displayed.
4.
Remove CD-RW (use the Eject CD button) or removable drive.
8-13
