RADIOMETER ABL800 FLEX User Manual

2. What Is what ABL800 FLEX Operator's Manual
Analyzer - rear
Parts and
functions

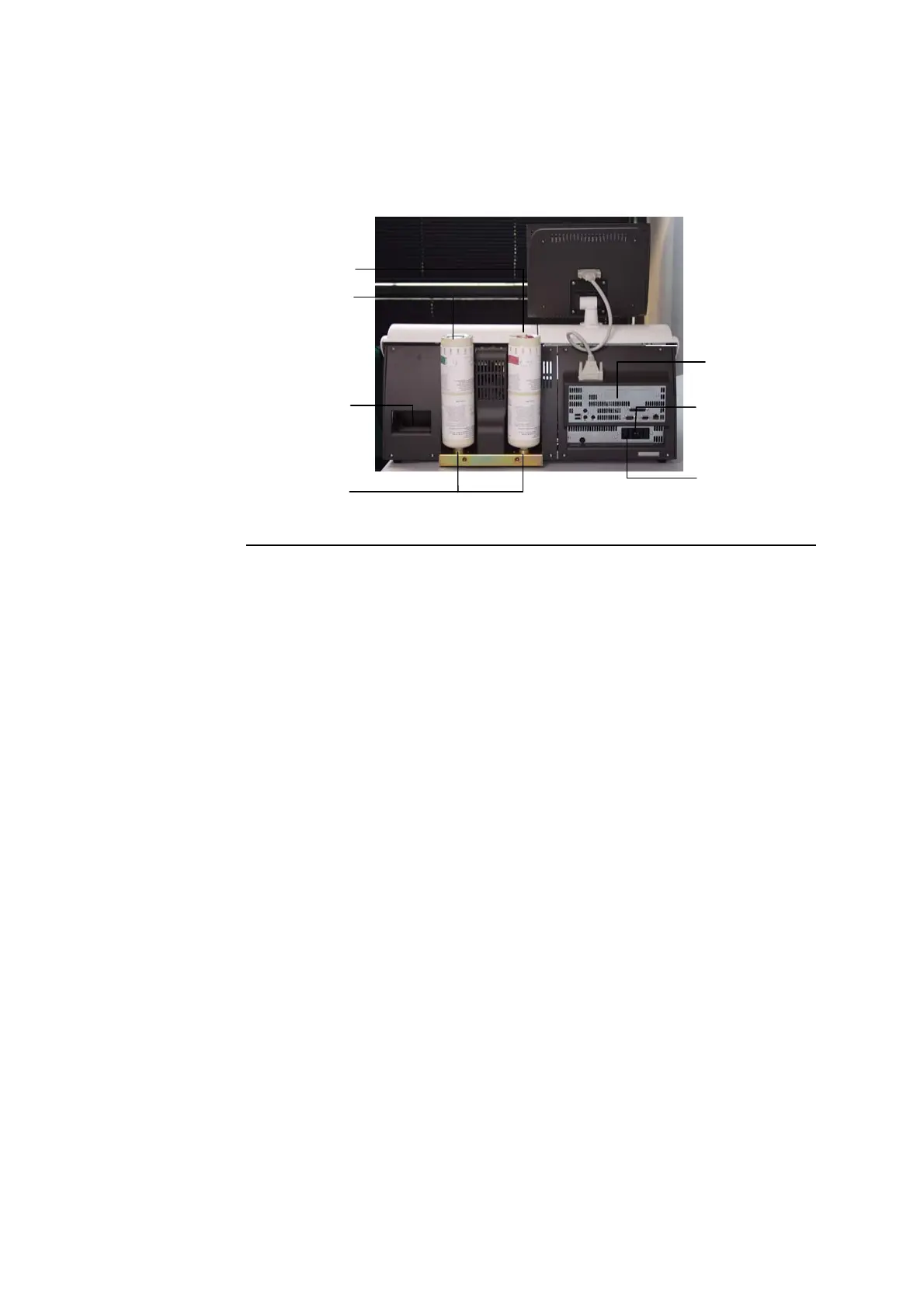

The parts and components of the analyzer's rear panel are shown below.
Gas 2 cylinde
r
Gas 1 cylinde
r
Power switch
Communication ports
Fan
Power socket
Gas cylinder sockets
Part Function
Gas 1 cylinder Contains a gas mixture of 5.61 % CO
2
, 19.76 % O
2
; balance
74.64 % N
2
.
Gas 2 cylinder Contains a gas mixture of 11.22 % CO
2
, < 0.04 % O
2
;
balance > 88.74 % N
2
.
Fan For cooling internal components.
Gas cylinder
socket
For mounting the gas cylinders.
Communication
ports
See section Communication Ports in this chapter.
Power switch
For turning the analyzer on (position I) and off (position O).
Power socket For connecting the power cord.
In USA: If source is 120 V, use Radiometer cord 615-403
with parallel blade attachment plug.
If source is 240 V, use Radiometer cord 615-405
with tandem blade attachment plug.
2-4

RADIOMETER ABL800 FLEX Specifications

General

Brand	RADIOMETER
Model	ABL800 FLEX
Category	Measuring Instruments
Language	English
