ABL800 FLEX Operator's Manual 2. What Is what
Communication ports
Ports and
functions

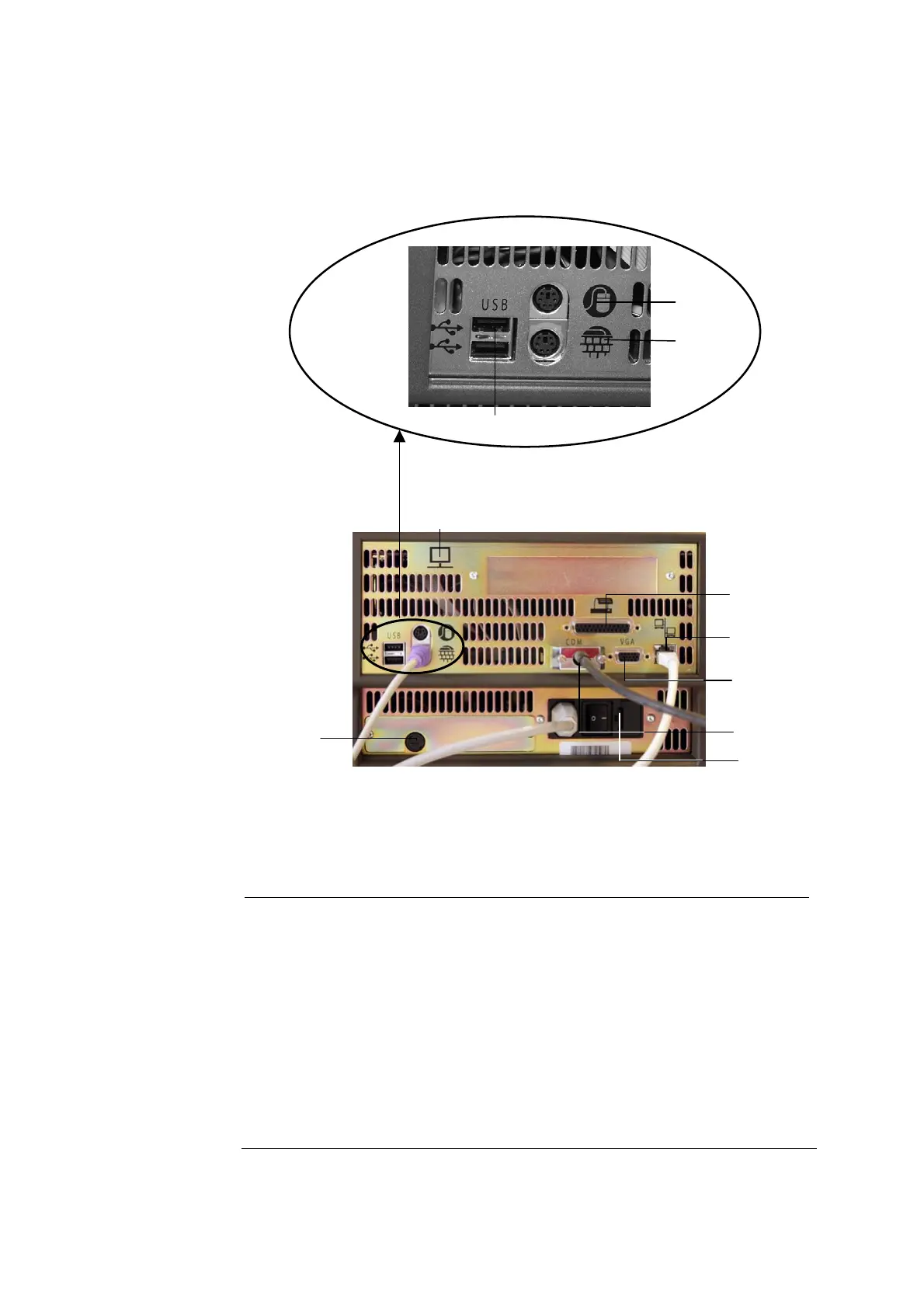

The following communication ports are available:
Serial port (COM2)
Ext. VGA monitor
Network connector
Printer port
Display unit
USB ports (two)
Mouse
Keyboard
Main fuse
Fuse for printer
unit
The functions of the communication ports are as follows:
Port Function
Display unit port For connection to the analyzer’s display
Mouse port PS/2 connector used for the connection of a standard
mouse (user supplied).
Keyboard port PS/2 connector used for connection of a keyboard (user
supplied).
Serial port
(COM2)
9-pin serial port used for HIS/LIS communication or
connection of an external barcode reader.
Network RJ45 ethernet interface connection to network.
Printer port Parallel port for connection to a local printer
Continued on next page
