2. What Is what ABL800 FLEX Operator's Manual
Analyzer - front
Parts and
functions

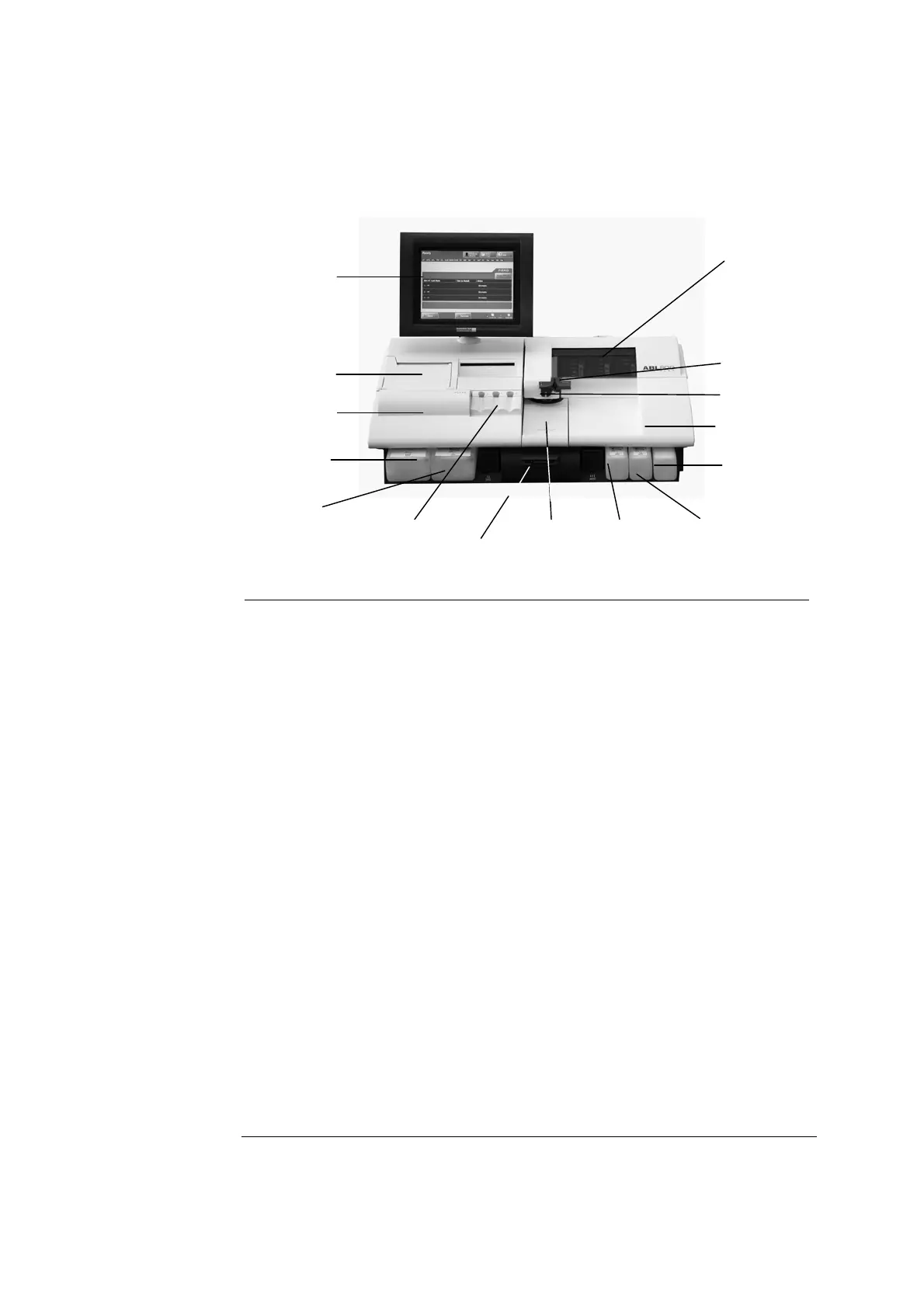

The components of the analyzer front (with covers) is shown below.
Cover with
window
Touch screen
Capillary inlet
Thermal printer
Syringe inlet
A
utoCheck
module
Left cover
Waste container
Rinse Solution
FLEXQ module
Barcode reader
Right cover
Cleaning Solution
Cal 1
solution
Cal 2
solution
Part Function
Color touch screen 10.4" LCD for operation and management of the
analyzer.
Thermal printer For automatic printout of data.
Left cover To access the waste container/Rinse Solution.
Waste container For waste collection. A sensor detects when container is
full, and a message is displayed on the screen.
Rinse Solution For rinsing the liquid transport system after various
analyzer activities.
FLEXQ module See FLEXQ module in this chapter.
Barcode reader See Barcode reader in this chapter.
AutoCheck module See AutoCheck module in this chapter.
Cal 1 Solution For performing 1- and 2-point calibrations.
Cal 2 Solution For performing 2-point calibrations.
Cleaning Solution For cleaning the liquid transport system of lipid deposits.
Right cover To access solutions and pumps – see overleaf.
Syringe inlet flap Lift to introduce syringe samples and quality control
solutions.
Capillary inlet flap Lift to introduce capillary samples.
Cover with window See Measuring Section in this chapter.
