2. What Is what ABL800 FLEX Operator's Manual
Thermal printer
Parts and
functions

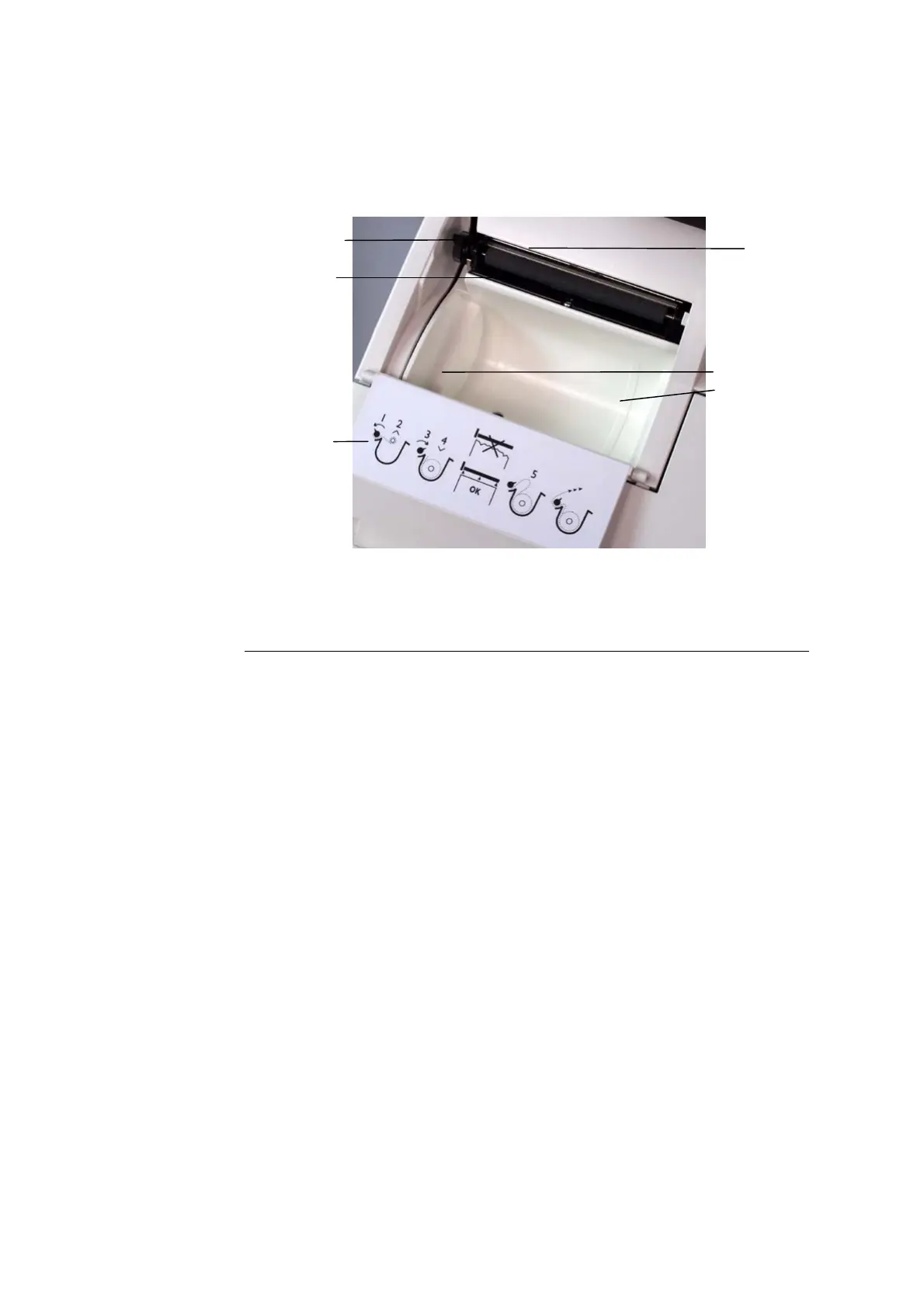

The components of the thermal printer (with the cover open) are shown below.
Release lever
Paper guide
Drive rolle
r
Cove
r
Paper roll holder
Part Function
Release lever Push the lever fully back to lift the drive roller from the
printer head and paper guide in order to adjust paper
alignment.
Remember to return the lever to its original position (as
shown) in order to print.
Drive roller Feeds the thermal paper through the printer.
Paper guide Located behind the drive roller, it is between this and the
drive roller that paper is fed.
Paper roll holder Holds the paper roll in place.
Cover Open to replace the paper roll. Contains instructions on
how to make a replacement.
Close the cover when a new paper roll has been mounted
in the printer.
