ABL800 FLEX Operator's Manual 2. What Is what
2-9
FLEXQ module, Continued
The components are as follows:
Part Function
FLEXQ sampler tray FLEXQ sampler tray moves to the position for
measurement by means of a step motor (not
shown).
The samplers used in the sampler tray should be
safePICO sampler with the safeTIPCAP.
Indicator diodes Change the color from green to yellow when the
optical switch detects the sampler placed in the
slot.
Barcode reader Laser barcode reader reads the sampler barcode. A
short beep indicates that the barcode has been
read. You can scan the Sampler ID on the
analyzer’s scanner and then place it in the sample
tray or you can place the sampler in the sampler
tray and let the FLEXQ scanner read the sampler
barcode.

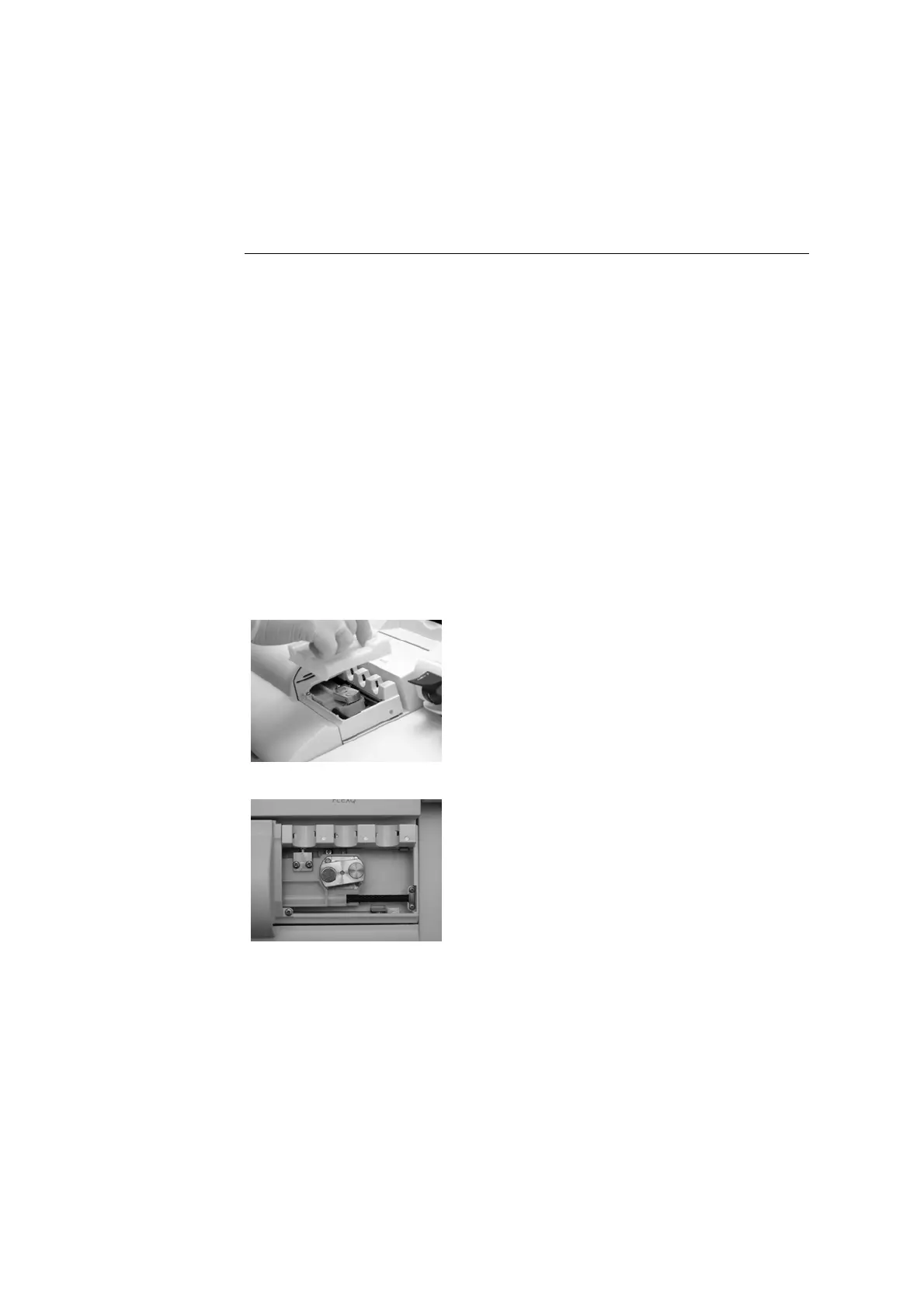

Sampler tray cover
The sampler tray cover has three slots for the
samplers; the slots have optical switches for
detecting the sampler. The cover can be removed
(as shown) for cleaning.
Mixer tray
The mixer rotates and moves the ball in the
sampler in order to mix the blood sample. The
sample is adequately mixed after 7 seconds.
The mixer tray moves into position under the
sampler immediately before the measurement.
Parts and
functions
(continued)
